-44-

G0636X 17" Ultimate Bandsaw

Checking and

Tensioning V-Belts

To ensure optimum power transmission from the
motor to the blade, the V-belts must be in good
condition and operate under proper tension. The
belts should be checked for cracks, fraying, and
wear. Belt tension should be checked at least
every 3 months—more often if the bandsaw is
used daily.

Tools Needed:

Qty

Ruler ...................................................................1
Hex Wrench 6mm ...............................................1
Wrench 17mm ....................................................1

To check the V-belts:

1. DISCONNECT BANDSAW FROM POWER!

2. Open the wheel covers.

3. Note the condition of the V-belts. If the V-

belts are cracked, frayed, or glazed; they
should be replaced.

4. Push the center of the V-belts. Note the

amount of deflection (

Figure 61). If deflec-

tion is more than

3

4

", tension the V-belt.

�������

�����

����������

�����

�����

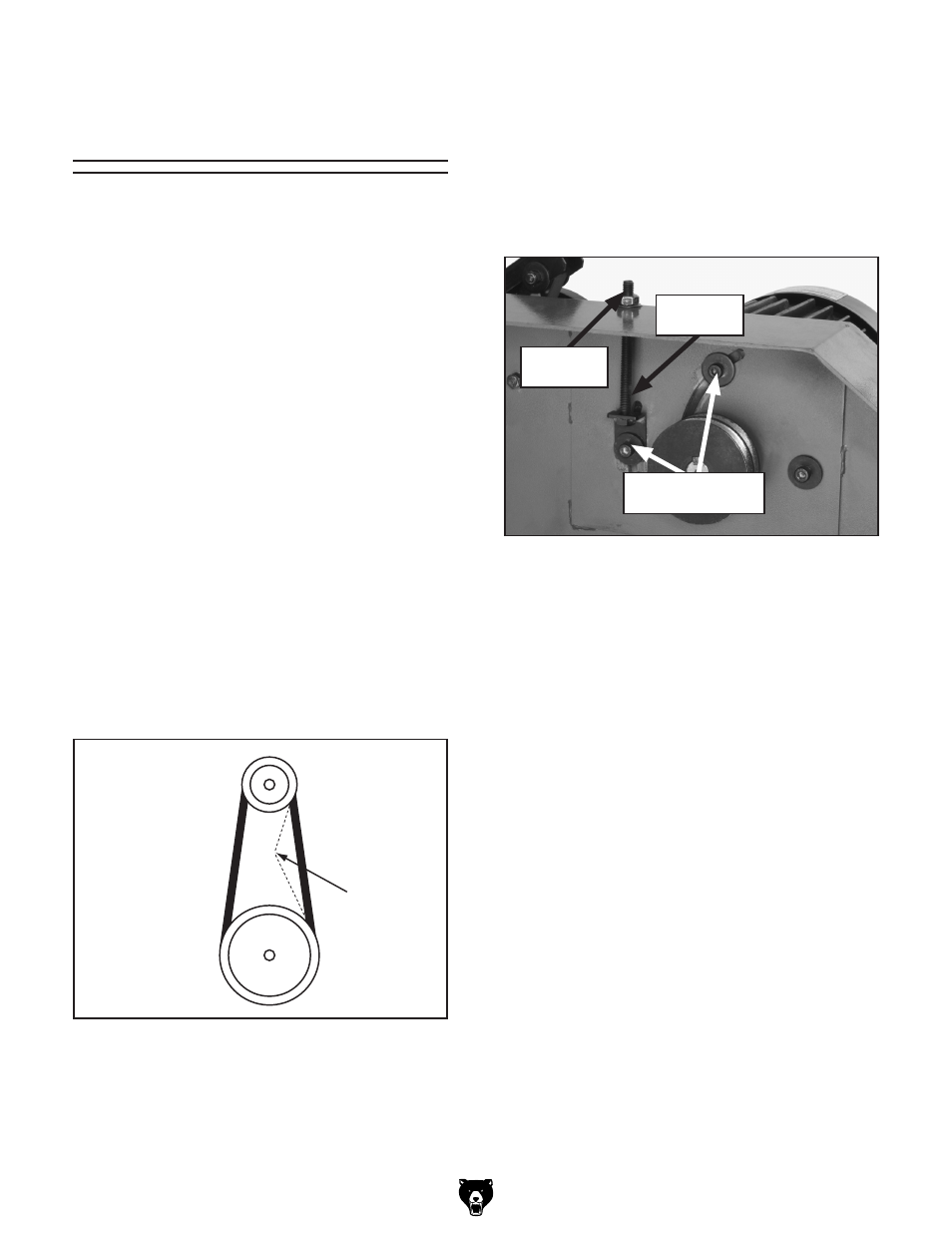

Figure 61. V-belt deflection.

To tension the V-belt:

1. DISCONNECT BANDSAW FROM POWER!

2. Open the wheel covers.

3. Loosen the motor adjustment bolts shown in

Figure 62.

Figure 62. Motor mount bolts and tension bolt.

4. Adjust the belt tension:

—If the belt is too loose, turn the tension nut

clockwise to tighten the belts.

—If the belt is too tight, turn the tension nut

counterclockwise to loosen the belts

5. Push the center of the V-belt. If deflection is

approximately

3

4

" with moderate pressure,

then the tension is correct. If the deflection is
more than

3

4

", repeat

Step 4.

6. When the V-belt tension is correct, tighten

the motor adjustment bolts, and close the
wheel covers.

Motor Adjustment

Bolts

Tension

Nut

Tension

Bolt
