G0636X 17" Ultimate Bandsaw
-19-
Fence
To install the fence handle:
1. Thread the fence handle onto the fence, as
shown in Figure 18, and tighten the hex nut
against the fence pivot block to secure the
handle.

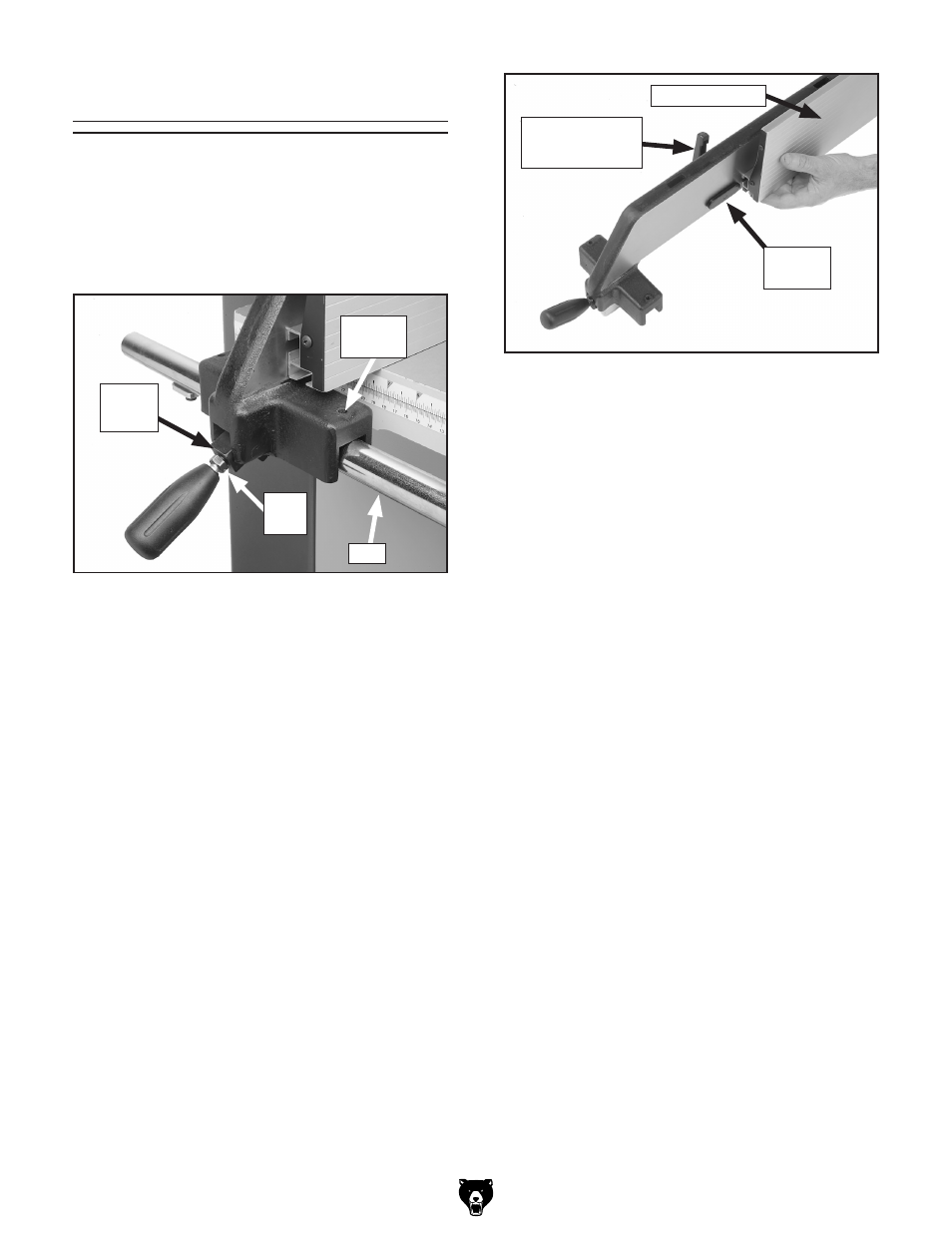

Figure 18. Fence handle installed.
2. Install the resaw fence lock handle (with the
washer and moving plate) onto the fence,
then slide the resaw fence over the moving
plate as shown in
Figure 19.
Note: Leave the moving plate and lock
handle loose enough to slide on the resaw
fence.
Pivot
Block
Figure 19. Attaching resaw fence to standard
fence.
Moving
Plate
Resaw Fence
3. Tighten the resaw lock handle.
4. Pull the fence handle up and place the fence
assembly on the rail, as shown in Figure 18.
5. Push the fence handle down to lock the fence
assembly in place.
Hex
Nut
Set
Screw
Resaw Lock
Handle
Rail
