G0636X 17" Ultimate Bandsaw
9. Figure 69 shows the positions of the wheels
when coplanar. When your wheels are copla-
nar, reinstall the table, table insert, and pin,
readjust the guide blocks and rear support
bearings, and close the wheel covers.
10. Finally, check table and fence alignment (see
Pages 25 & 26).
Coplanar
Parallel, Not
Coplanar
Not Parallel
Not Coplanar
Adjust
Tracking Knob
Coplanarity
Gauge
Contacts Top
And Bottom of
Both Wheels
Coplanarity Gaug
e
Shim Upper
Wheel Out
Adjust
Lower
Hub

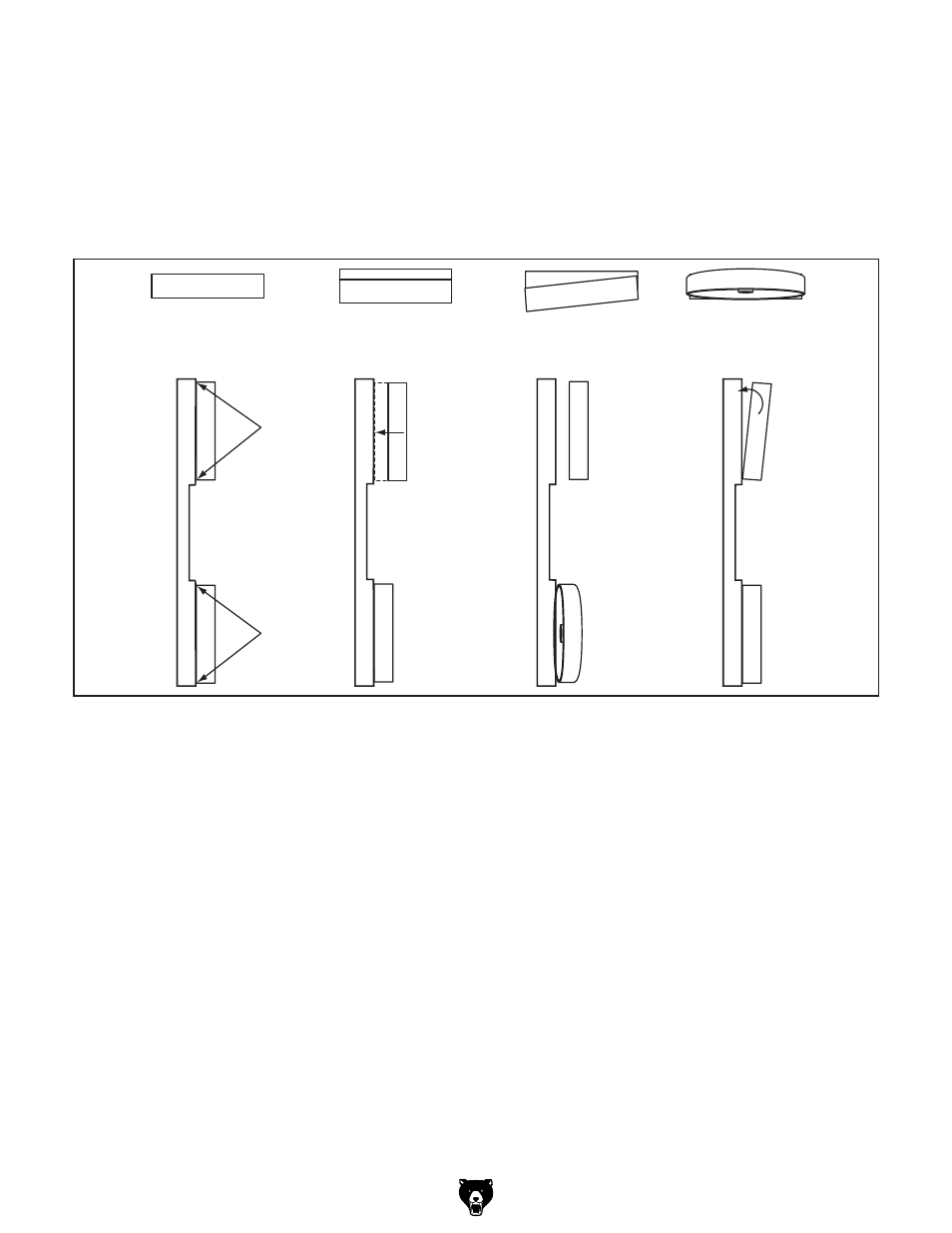

Figure 69. Coplanarity diagram.
Note: The blade may track slightly off-center
when the wheels are coplanar. This is natural
because the blade will be balanced on the crown
of the tire, rather than just in the center of the tire.
This will be more noticeable with larger blades.
