-50-

G0636X 17" Ultimate Bandsaw

��

��

��

��

��

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��
��

��

��

��

��

��

��

��

��

�

�

�

�

�

�

�

�

�

��
��

�

�

�

��

��

��

��

��

��

�

��

��

��

�

�

� �

��

��

�

�

�

�

��
��
��

��
��

��
��
��
��

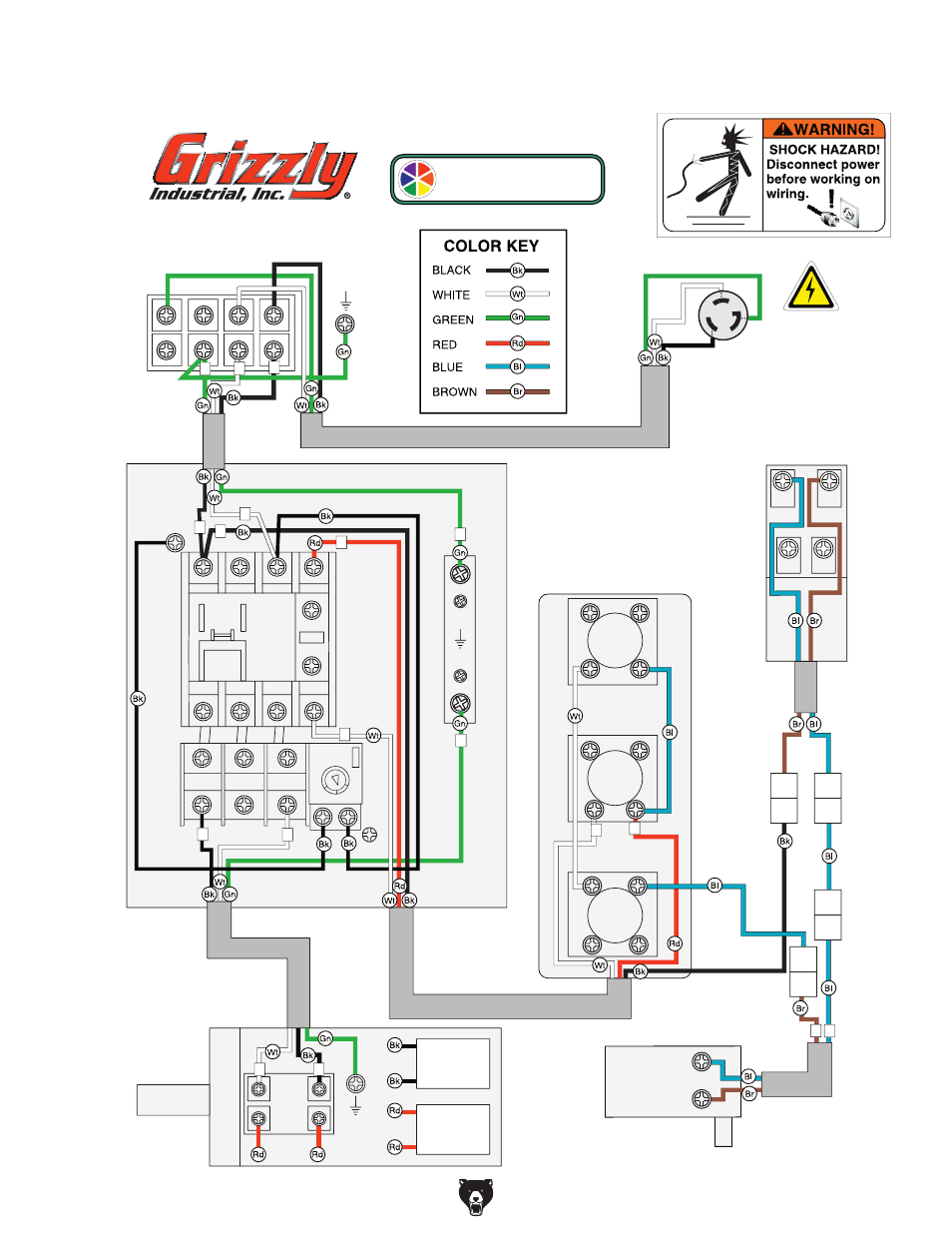

Wiring Diagram

(See

Figure 70)

(See

Figure 74)

(See

Figure 71)

(See

Figure 73)

(See

Figure 72)

(See

Figure 72)
