6.MAINTENANCE & TROUBLESHOOTING
6-5
RUDDER SETUP AND AUTO TEST
The rudder test checks the following, and then shows the result of the check.
•
Drive type
•
The presence or absence of bypass/clutch circuit
•
Rudder deadband
•
Rudder speed
This test should be executed when the boat does not run because of moving the
rudder.
When the rudder test is finished, a beep sounds and the message “RUDDER
TEST COMPLETED” and the results are shown.

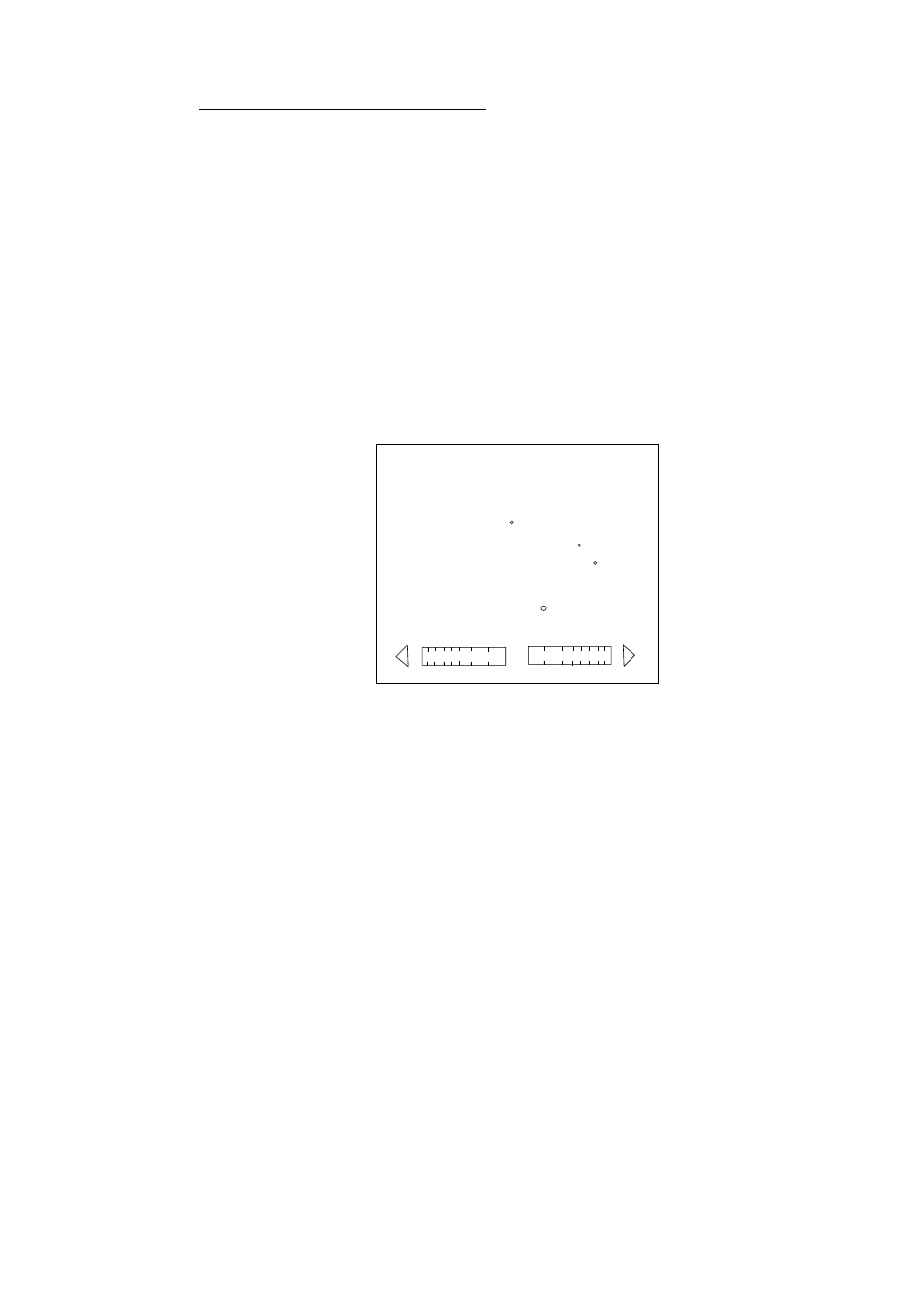

RUDDER SETUP AND AUTO TEST
DRIVE TYPE: _
BYPASS/CLUTCH: _
RUDDER DB : _. _
RUDDER SPEED: _ _. _ /s
40 20 10 5 5 10 20 40
_ _
Rudder test
DRIVE TYPE: REVERSIBLE or SOLENOID
BYPASS/CLUTCH: EXIST or NON
RUDDER: Shows the rudder deadband
RUDDER SPEED: Rudder speed
