2. BASIC OPERATION
2-7
2.4.2 Selecting the display on Graphic Display
COMPASS, RUDDER ANGLE, HIGHWAY, WIND TRUE INDICATOR, WIND
RELATIVE INDICATOR, DEPTH GRAPH or TEMP GRAPH can be shown on
the Graphic Display. Note that the appropriate sensors are necessary to display
data.
1. Open the SCREEN SETUP menu referring to page 2-4.
2. Rotate the [ENTER] knob to select “GRAPHIC”.
3. Press the [ENTER] knob to show the graphic options window.
WIND TRUE INDICATOR
WIND RELATIVE INDICATOR
DEPTH GRAPH
TEMP GRAPH
HIGHWAY
COMPASS
RUDDER ANGLE
Graphic options window
4. Rotate the [ENTER] knob to select the graphic type.
N
S
W E
RUDDER
RUDDER ANGLE
P 2.5
P 5.1
PORT STBD
WIND WIND TRUE
45
12 kt
WIND WIND RELATIVE
45
12 kt
200
300
DEPTH 260ft
40
30
TEMP 32.0 F
Waypoint mark
001WPT Waypoint ID
P0.01 nm
Own ship symbol
Direction to steer

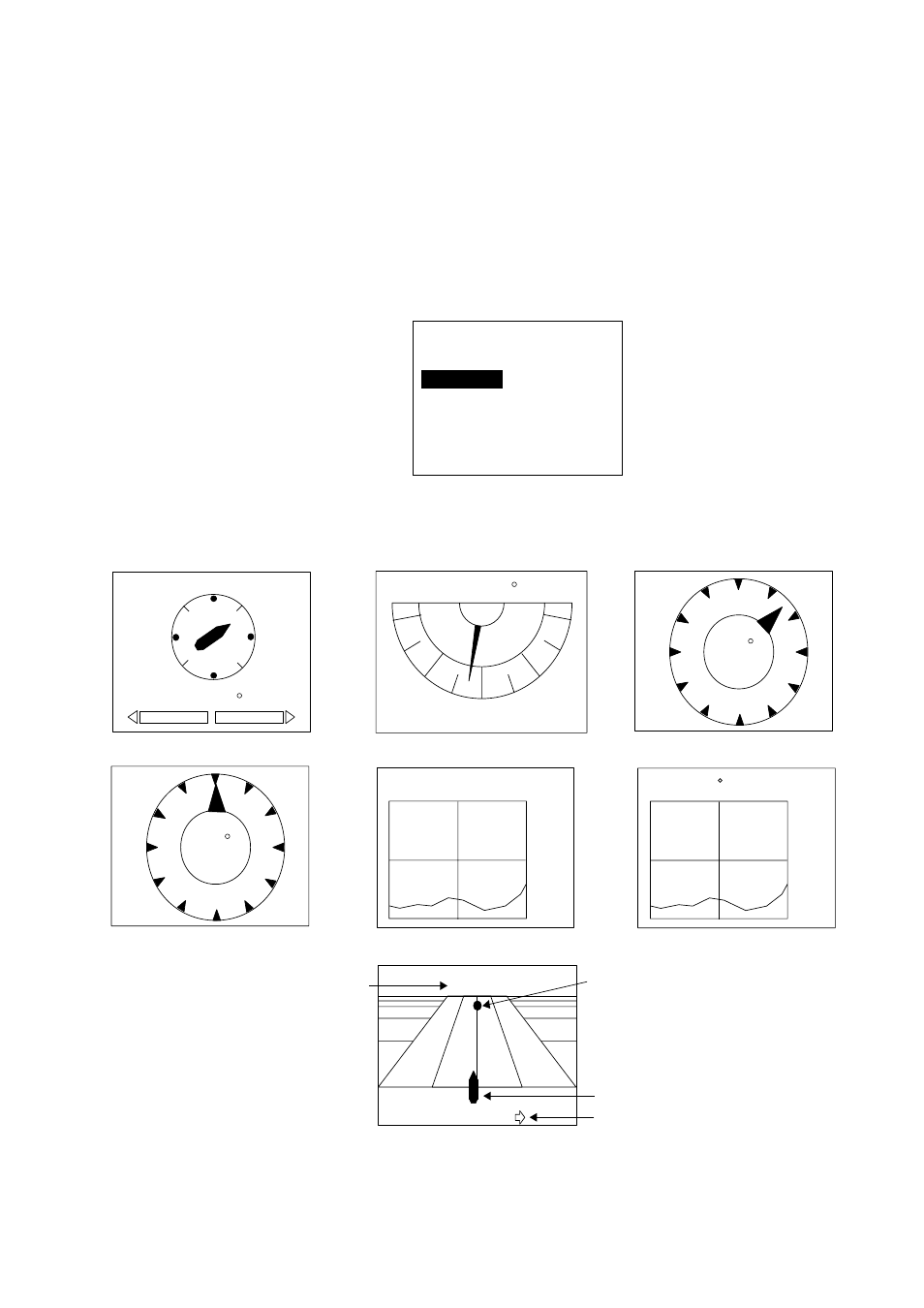

COMPASS RUDDER ANGLE TRUE WIND INDICATOR
RELATIVE WIND INDICATOR DEPTH GRAPH TEMP GRAPH
HIGHWAY
Graphic displays
5. Press the [ENTER] knob and [MENU] key in order to close the menu.
