1-6

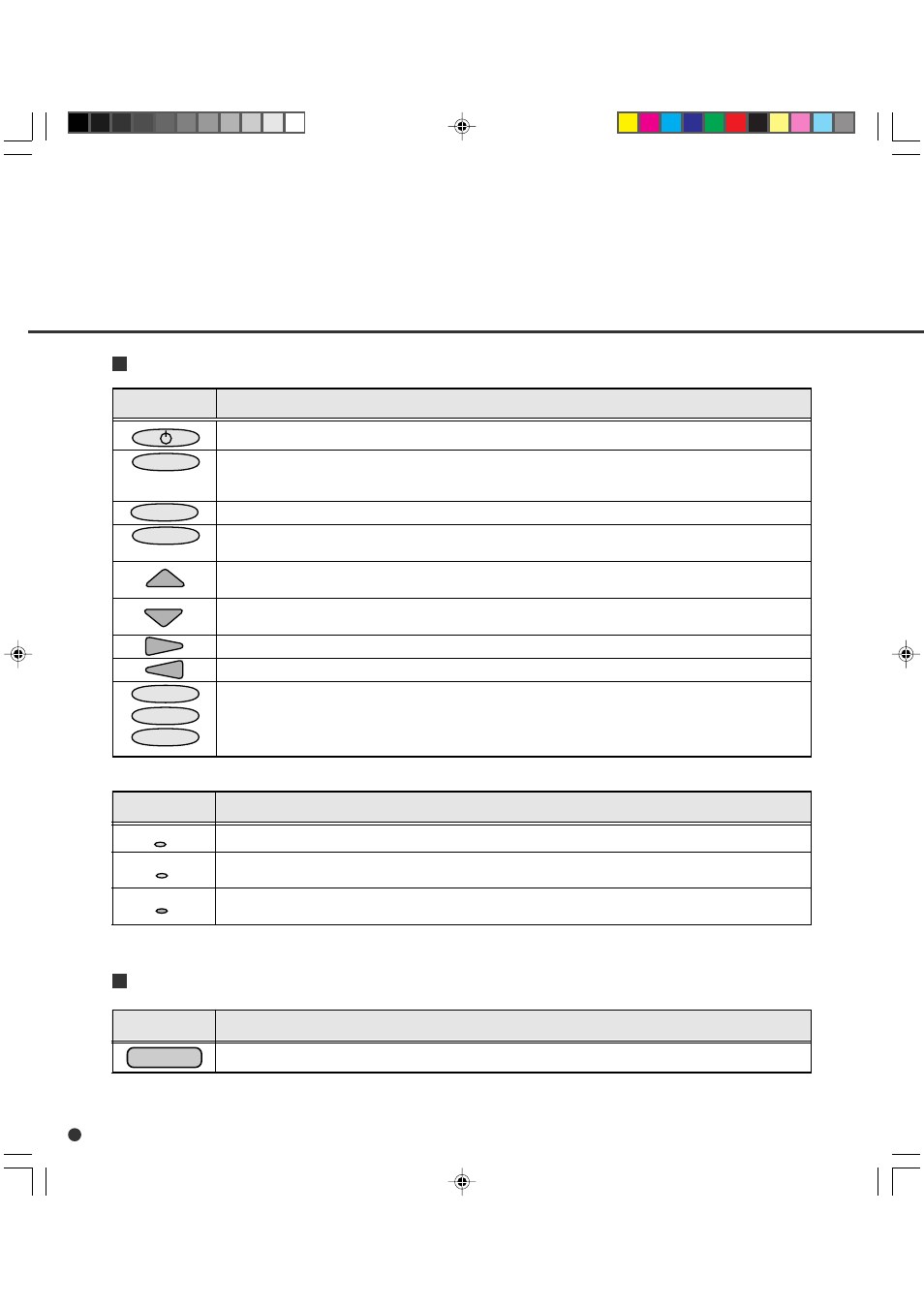

Button/LED Function
LED Function
Lights when the power is on.
Lights when the image buffer contains data.
Blinks when an equipment error occurs.
Button name Function
Turns on or off the power when the main line switch is set to “I”.
Sets the scanner in setup or browse mode. It is also used to set test mode. (See Chapter 6)
Setup mode is used for customizing the scanner. Browse mode is used for glancing conditions of the scanner.
Test mode is used for testing the scanner offline.
Used in setup, browse, or test mode.
• Clears an error if any.
• Used in setup, browse, or test mode.
• Lifts the hopper in normal mode without errors.
• Used in setup, browse, or test mode.
• Lowers the hopper in normal mode without errors.
• Used in setup, browse, or test mode.
Used in setup, browse, or test mode.
Used in setup, browse, or test mode.
Available as shortcut keys when functions are defined in setup mode.
MENU
ENTER
CANCEL
F1
F2
F3
LCD Display
LCD Function
Displays equipment status or error contents.
CHECK
DATA
POWER
