Position of eyebolt
*
[RE13300( F )04/89]
After the eyebolt has been tightened it should be
at a right angle to the slot. That is, it should be
at 90 degrees to the center line of slot, if not,
tighten it to that position. This is necessary to
prevent channel separation and/or loss of the
spare tire if the spare becomes loose in the
channel.
*
[RE13350( F )03/91]
quarter page art:0020283-A

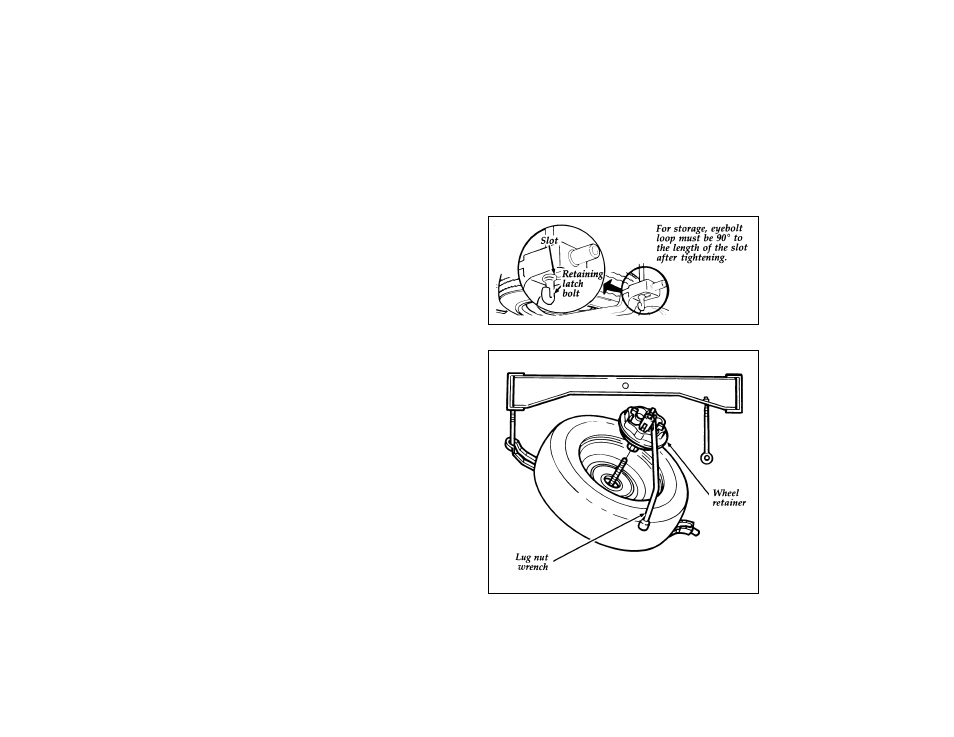

Eyebolt position
*
[RE13400( F )12/91]
half page art:0020282-B
Underbody spare tire carrier
