SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.
43 43

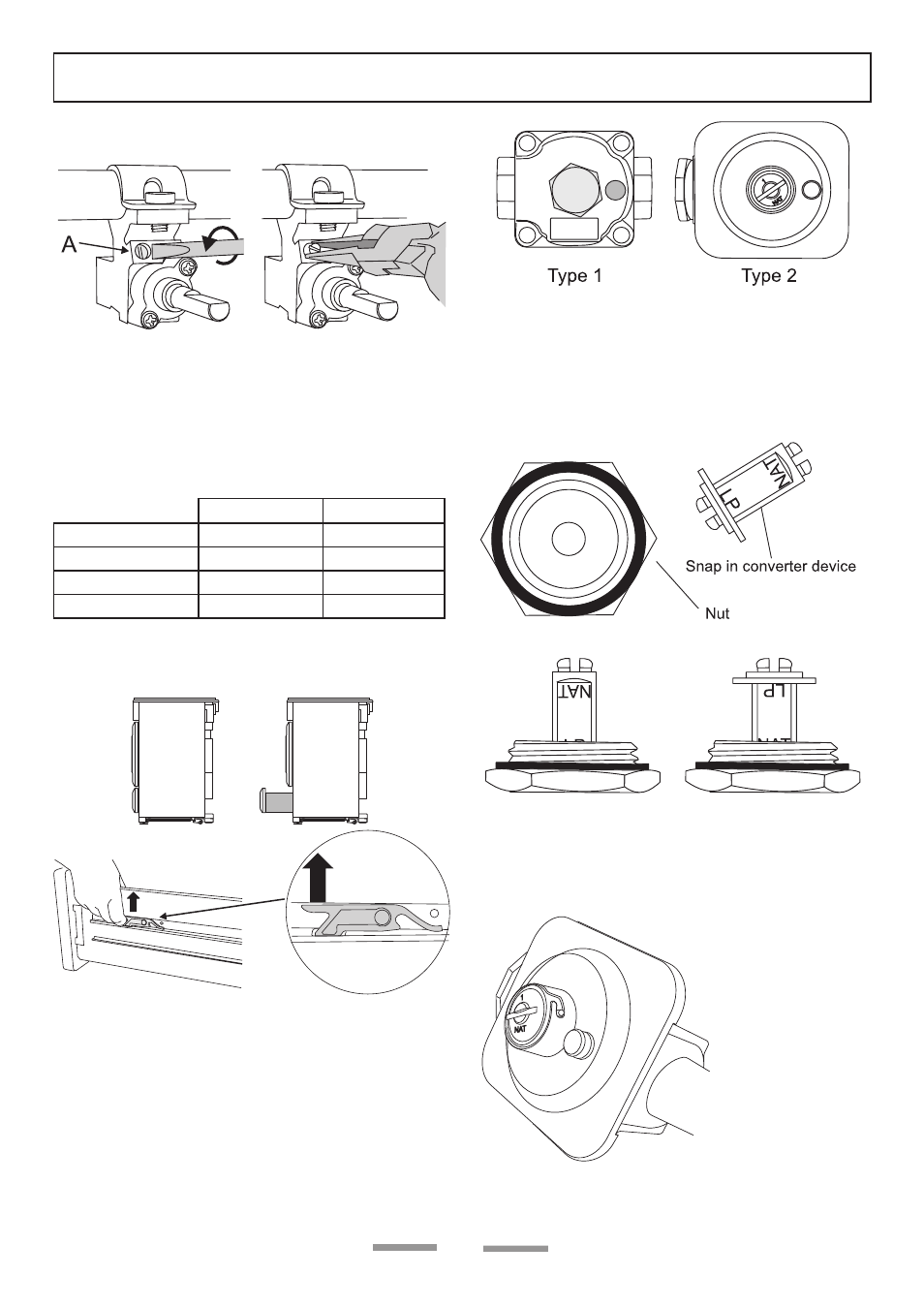

Lower control panel clear.
Unscrew the tap bypass screw.
A valve bypass screw
Using a pair of long nose pliers carefully remove the
bypass screw and fi t the correct replacement screw.
Tighten the screw down.
Save the screws removed from the appliance for
possible future use.
Valve Bypass screws
Natural Gas Propane Gas
Wok burner 82 49
Large Burner 70 38
Medium Burners 53 31
Small Burner 43 22
Gas Regulator
Remove the storage drawer. Pull it out to its furthest
point.
Lift up the ends of the plastic clips (one each side)
to release the catches holding the drawer to the side
runners and at the same time pull the drawer forward
and away from the side runners. For safety’s sake
push the drawer runners back out of the way.
The regulator is now accessible.
The regulator may be one of two types.
Type 1
Unscrew the hexagonal nut in the front of the
regulator. The regulator nut has a plastic snap in
converter device on the underside, to convert the
regulator snap the device out of the nut and refi t the
other way up.
set for Natural gas set for Propane gas
The snap in converter device is marked to show
which gas it is set for. Make sure the device is
secure in the base of the nut and refi t the nut to the
regulator.
Type 2
The regulator has a
bayonet mounted top
cap.
Using a small coin
press in and turn the
cap to remove it.
Turn the cap over so that the letters “LP” are visible
on base of the hollow in the cap. Refi t the cap
