Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
32
The range should be installed on a sheet of plywood
(or similar material). When the floor covering ends at
the front of the range, the area that the range will rest
on should be built up with plywood to the same level
or higher than the floor covering.
This will allow the range to be moved for cleaning
or servicing. Also, make sure your floor covering
will withstand 180°F. (See the Installation Safety
Instructions section.)
Make sure the wall coverings around your range
can withstand the heat generated (up to 200°F) by
the range. (See the Installation Safety Instructions
section.)

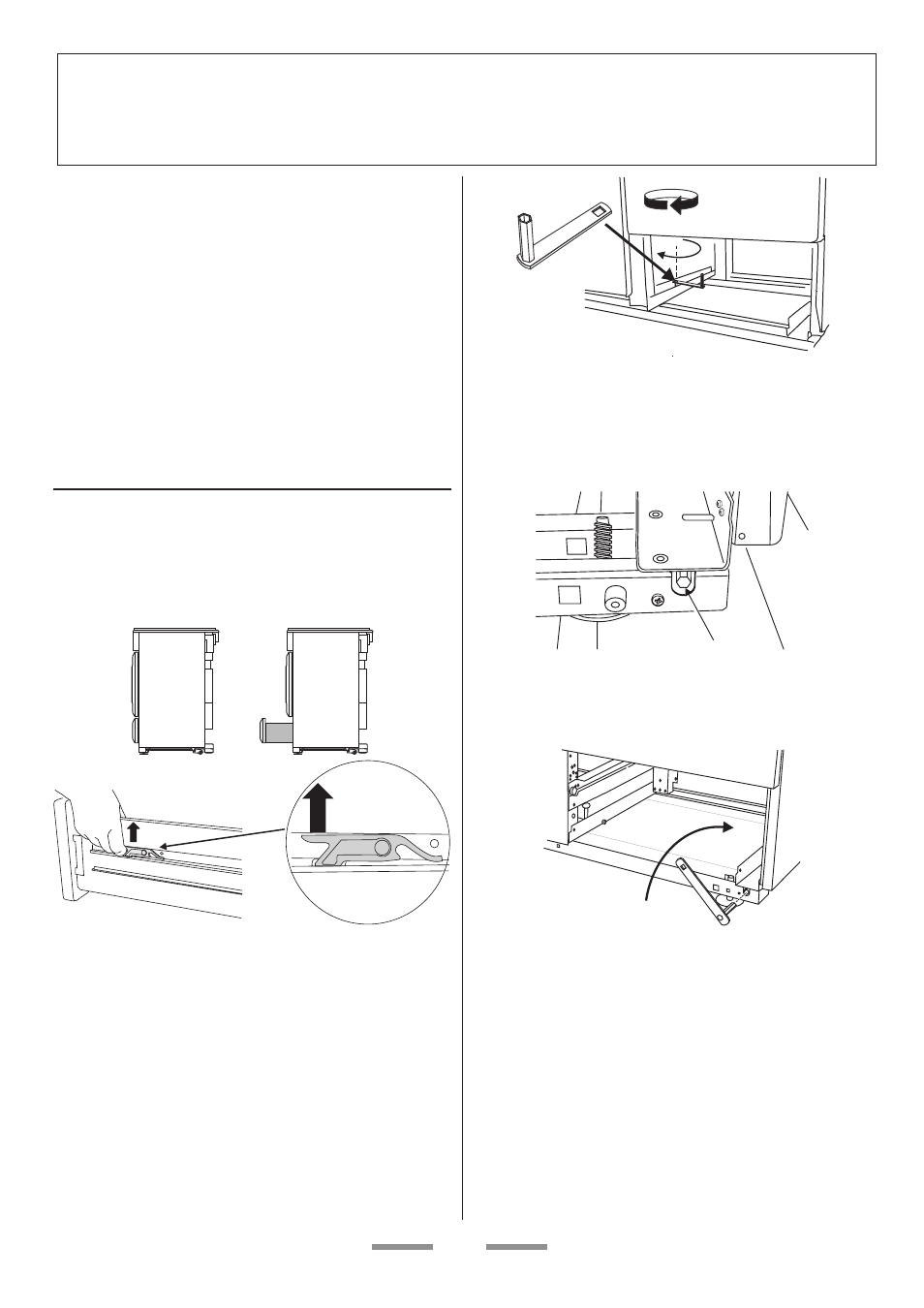

Moving the Range
The range is very heavy. Take great care.
We recommend two people maneuver the range.
Ensure that the floor covering is firmly attached, or
removed to prevent it being disturbed when moving
the range around. You will need the leveling tool.
Pull the drawer out to its furthest point.
Lift up the ends of the plastic clips (one each side)
to release the catches holding the drawer to the side
runners and at the same time pull the drawer forward
and away from the side runners. For safety’s sake
push the drawer runners back out of the way. Put the
drawer somewhere safe - do not refit it until you have
completed the installation, you will need access to
the area behind the drawer.
Fit the leveling tool on the rectangular adjuster as
shown below.
LOWER THE FRONT ROLLER by doing 14 complete
(360°) turns clockwise. (This means turning and
removing the leveling tool 56 times).
Now LOWER THE TWO REAR ROLLERS.
First fit the leveling tool on the hexagonal adjusting
nut as shown below.
Make 10 complete (360°) turns clockwise. (This
means turning and removing the leveling tool 20
times).
Make sure you lower BOTH REAR ROLLERS. There
are two adjusting nuts, one for each roller, at both the
front bottom corners of the range.
Note the rollers are only intended to aid
installation - the range should not be moved once
it is installed.
Push the range close to its final position, leaving just
enough space to get behind it.
