Heartland Toledo XT - Manual (Page 38)

Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
38
Fit the wires to the ground post and terminal block
NOTE: Make sure the wires are completely inserted
into the terminals and secure connections are made.
Secure the squeeze connector in place in the bracket
by tightening the squeeze connector screws.
Refit the electrical connection cover.
Fitting a 3-Wire Power Cord
Disconnect the supplied power cord from the terminal
block and ground post. Keep the terminal block parts;
you will need them. Remove the strain relief clamp
from the power cord and remove the power cord and
strain relief clamp from the mounting bracket. Discard
the strain relief clamp.
NOTE: Do not install the power cord without a strain relief
- use the clamp supplied with the cord.
Fit the new strain relief device to the mounting
bracket by removing the two clamping screws,
feeding the two halves (ears first) through the hole in
the mounting bracket and loosely refitting the screws.
Insert the power cord through the strain relief device
but do not tighten the device yet.

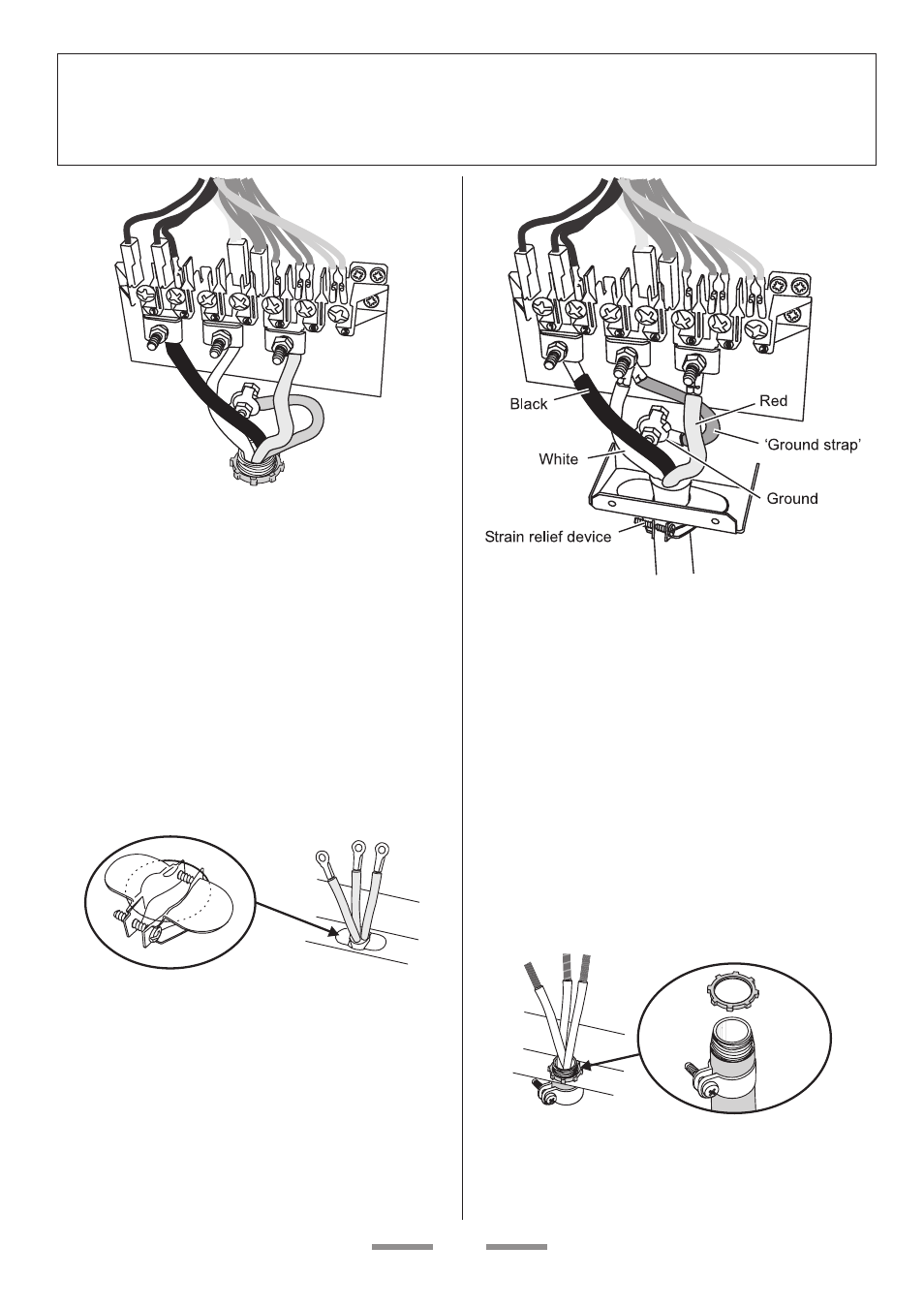

Fit the Ground strap to the ground and center
terminal of the connector block - see the figure.
The neutral or ground wire of the power cord must
be connected to the neutral terminal located in the
center of the connector block. The power leads must
be connected to the outside terminals.
Make sure the connections are tight. Now tighten the
stain relief device to clamp the power cord.
Refit the electrical connection cover
3-Wire Conduit Installation
Disconnect the supplied power cord from the terminal
block and ground post. Keep the terminal block parts;
you will need them. Remove the strain relief clamp
from the power cord and remove the power cord and
strain relief clamp from the mounting bracket.
The range is shipped with reducer plates to give a 1
1/8’’ diameter opening for conduit connection. Find
the reducer plates in the conversion kit and fit them
to the mounting bracket.
Fit a squeeze connector (not supplied with the
range), to your conduit. Insert the conduit through
the reducer plates on the mounting bracket. Allow
enough slack to easily attach the wires to the
terminal block.
