Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
39
NOTE: Do not install the conduit without a squeeze
connector.

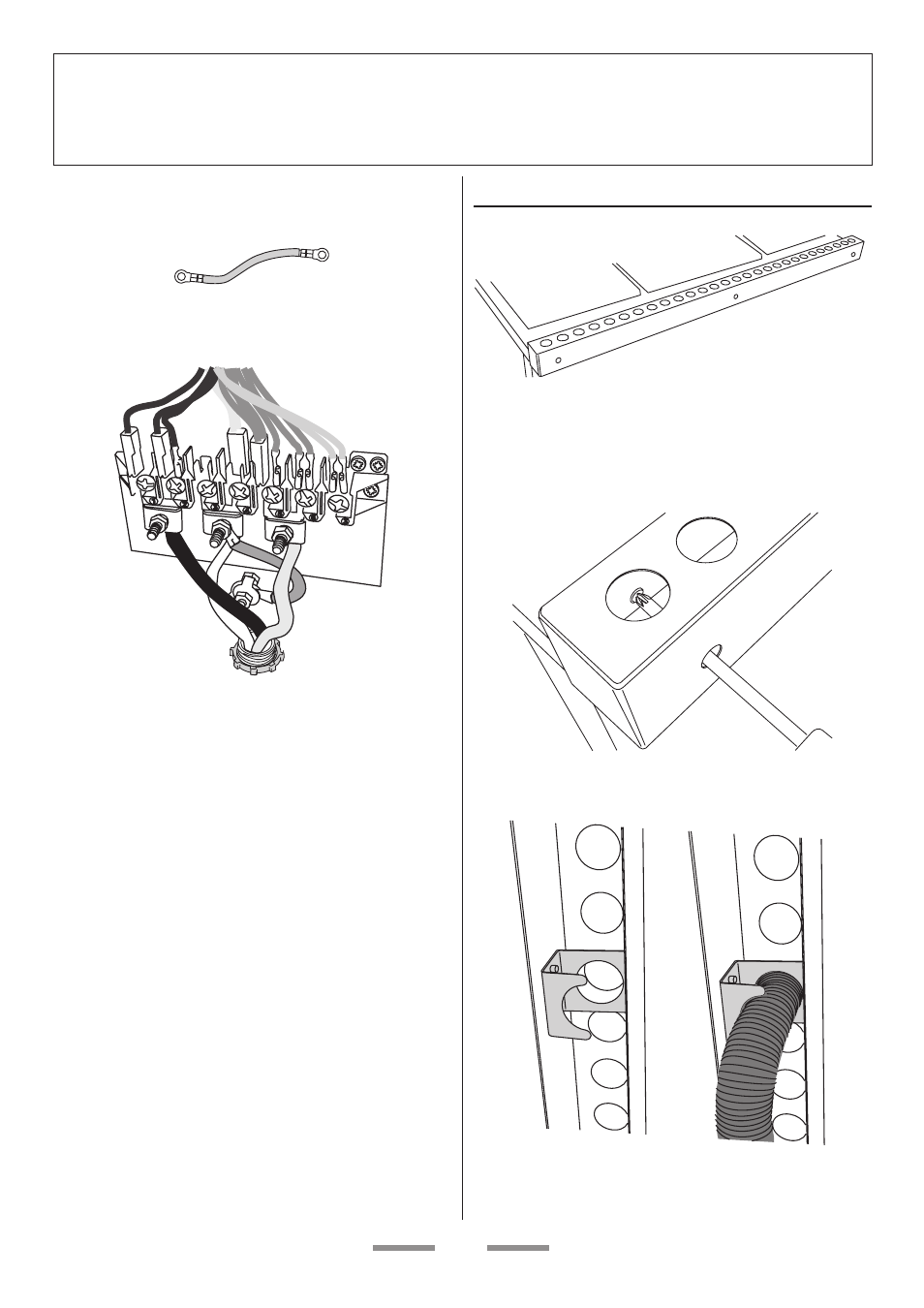

A Ground strap is supplied in the conversion pack.
ground strap.
Fit the Ground strap to the ground and center
terminal of the connector block - see the figure.
The neutral or ground wire of the power cord must
be connected to the neutral terminal located in the
center of the connector block. The power leads must
be connected to the outside terminals.
NOTE: Make sure the wires are completely inserted
into the terminals and secure connections are made.
Secure the squeeze connector in place in the bracket
by tightening the squeeze connector screws.
Seal the Openings
Seal any openings in the wall behind the range
and in the floor under the range when hookups are
completed.
When all Connections are Completed
MAKE SURE THE FLOW OF COMBUSTION
AND VENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
Assemble the range
Installing the flue grille
The flue grille is packed separately.
The larger of the holes along the sides are for
screwdriver access and should face to the rear. Use
the screws and nuts supplied to hold the grille in
place.
View from above
Clip the flexible extensions of the oven flues to the
flue grille using the clips provided inside the flue
.
Grille
View from below
