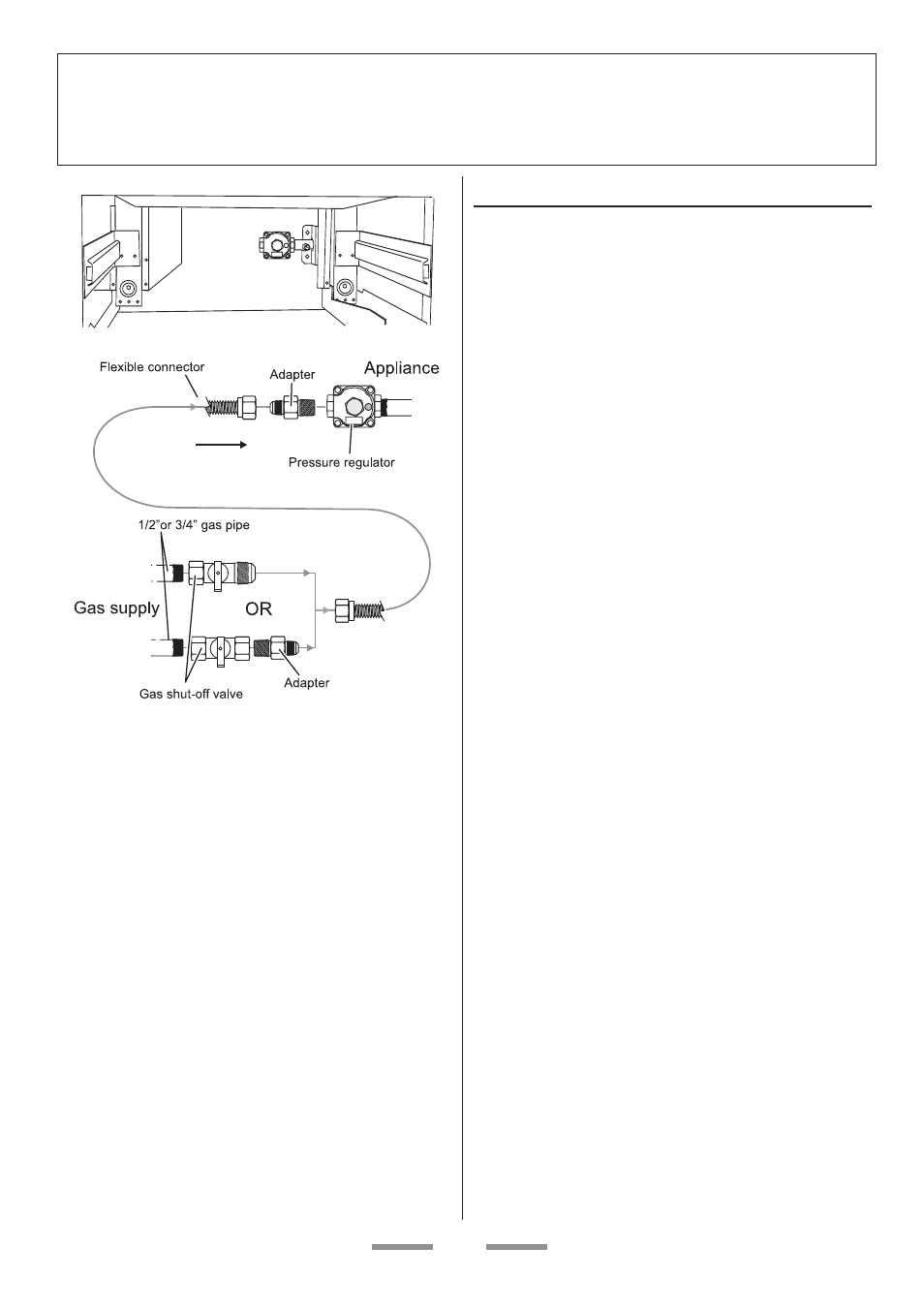

Flexible Connector
Installer: Inform the consumer of the location of
the gas shut-off valve.
Electrical Connection
When installed the range must be electrically
grounded in accordance with local codes or; in the
absence of local codes with the National Electrical
Code ANSI/NFPA 70, latest edition.
In Canada the range must be installed in
accordance with the current CSA Standard C22.1
- Canadian Electrical Code Part 1.
Electrical Power Supply Requirements
Electrical Requirements
CAUTION: FOR PERSONAL SAFETY, DO NOT USE
AN EXTENSION CORD WITH THIS APPLIANCE.
REMOVE HOUSE FUSE OR OPEN CIRCUIT
BREAKER BEFORE BEGINNING INSTALLATION.
This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or time-delay fuse, as
noted on the rating plate.
Wiring must conform to National Electric Codes. If
the electric service provided does not meet the above
specifications, have a licensed electrician install an
approved outlet.
Because range terminals are not accessible after
range is in position, flexible service conduit or cord
must be used.
Provide Proper Electrical Supply
This range must be supplied with 240 volt, 60 Hz.,
and connected to an individual, properly grounded
branch circuit protected by a circuit breaker or
time-delay fuse (40 amp). If the electrical service
provided does not meet the above specifications, it
is recommended that a licensed electrician install an
approved outlet.
From January 1, 1996, the National Electric Code
requires that new construction (not existing) utilize a
4-conductor connection to an electric range.
Connecting using the supplied cord and
plug
Your range is shipped with a 4-prong plug to be used
in a NEMA 14-50R receptacle.
Recommended Electrical Outlet Locations
Locate the electric supply as illustrated.
Recommended acceptable electrical outlet area.
Orient the electrical receptacle so the length is
parallel to the floor.
