Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
37

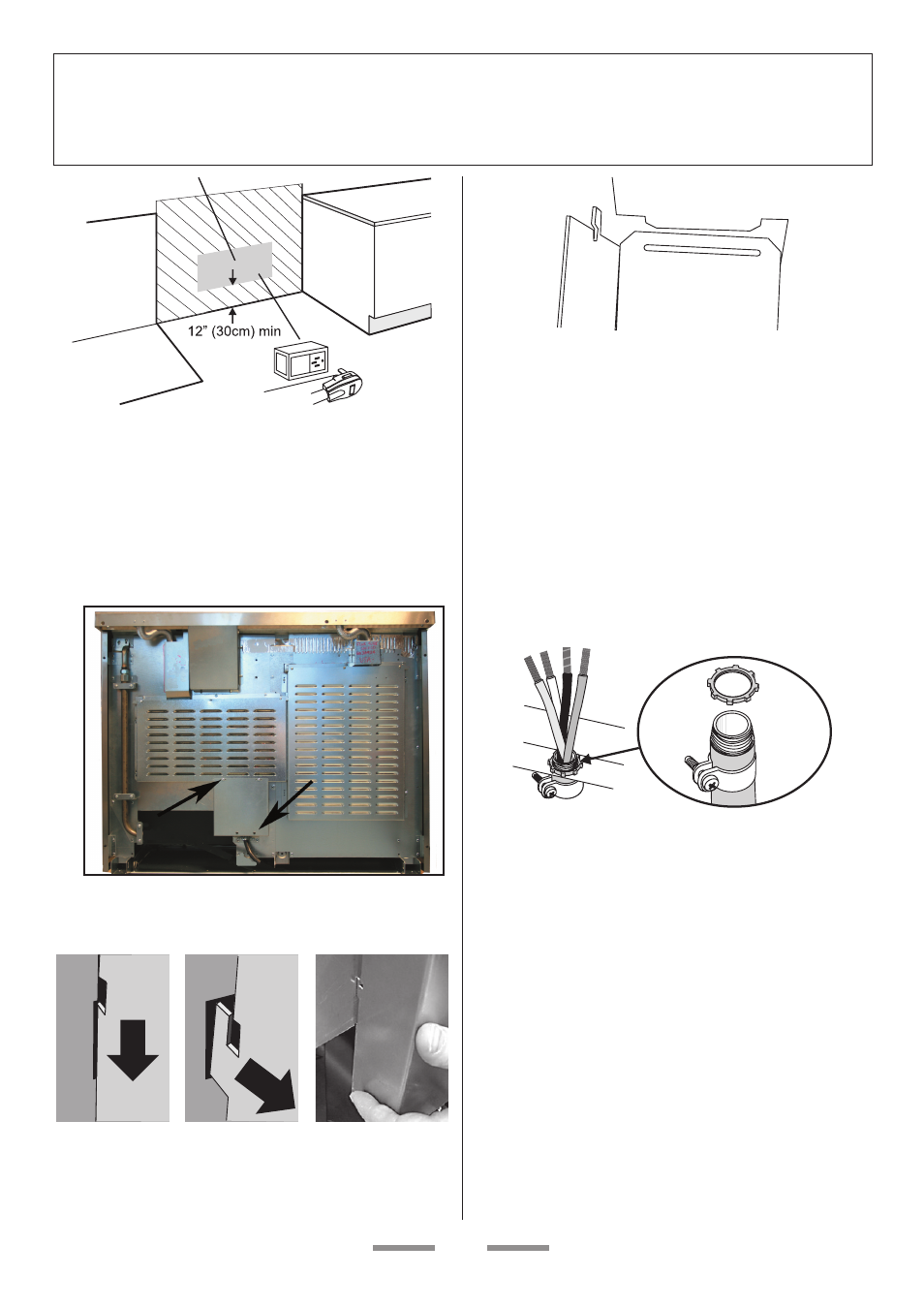

When connecting using a NEMA 14-50R receptacle,
if possible position it so that it can be accessed
through the opening at the rear of the drawer cavity.
The range can then be easily disconnected for
servicing etc.
Plug the range power cord into a properly grounded
wall receptacle.
Connecting if the supplied cord and plug
is not suitable.
To remove the electrical connection cover first
remove the screws on the top and bottom edges. The
cover has two side and one bottom location tags.
Slide the cover down to free the side tags.
Free from the bottom tag.
When refitting the cover first locate it on the bottom
tag second locate the two side tags and then replace
the screws.
4-Wire Conduit Installation
Disconnect the supplied power cord from the terminal
block and ground post. Keep the terminal block parts;
you will need them. Remove the strain relief clamp
from the power cord and remove the power cord and
strain relief clamp from the mounting bracket.
The range is shipped with reducer plates to give a 1
1/8’’ diameter opening for conduit connection. Find
the reducer plates in the conversion kit and fit them
to the mounting bracket.
Fit a squeeze connector (not supplied with the
range), to your conduit. Insert the conduit through
the reducer plates on the mounting bracket. Allow
enough slack to easily attach the wires to the
terminal block.
NOTE: Do not install the conduit without a squeeze
connector.
