Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
42
Shut off the gas supply and disconnect electrical
supply to appliance. Disconnect gas supply tubing to
appliance and unplug the electrical supply cord.
Reverse procedure to reinstall. If gas line has been
disconnected, check for gas leaks after reconnection.
NOTE: A qualified person should disconnect and
reconnect the gas supply.
The service engineer MUST follow installation
instructions provided with the gas appliance
connector and the warning label attached to the
connector.
If your range is removed for any reason, make sure
the anti-tip device is re-engaged properly when the
range is replaced. Failure to take this precaution
could result in tipping of the range and cause injury.
Conversion to Propane
This appliance is supplied set for Natural gas. A
conversion kit for Propane gas is supplied with the
range.
If the appliance is to be converted this must be
done before installation. The conversion must be
performed by a qualified LP gas installer. After
conversion the installation must comply with the
relevant regulations and also the local electricity
supply company requirements. Read the instructions
before converting this appliance.
Failure to convert the appliance correctly could
invalidate any warranty or liability claims and lead to
prosecution.
This instruction must be used in conjunction with
the rest of the appliance instruction, in particular
for information on Standards, range positioning,
connection hose suitability etc.
When servicing or replacing gas-carrying
components disconnect from gas before
commencing operation. Do not use re-conditioned or
unauthorised gas controls.

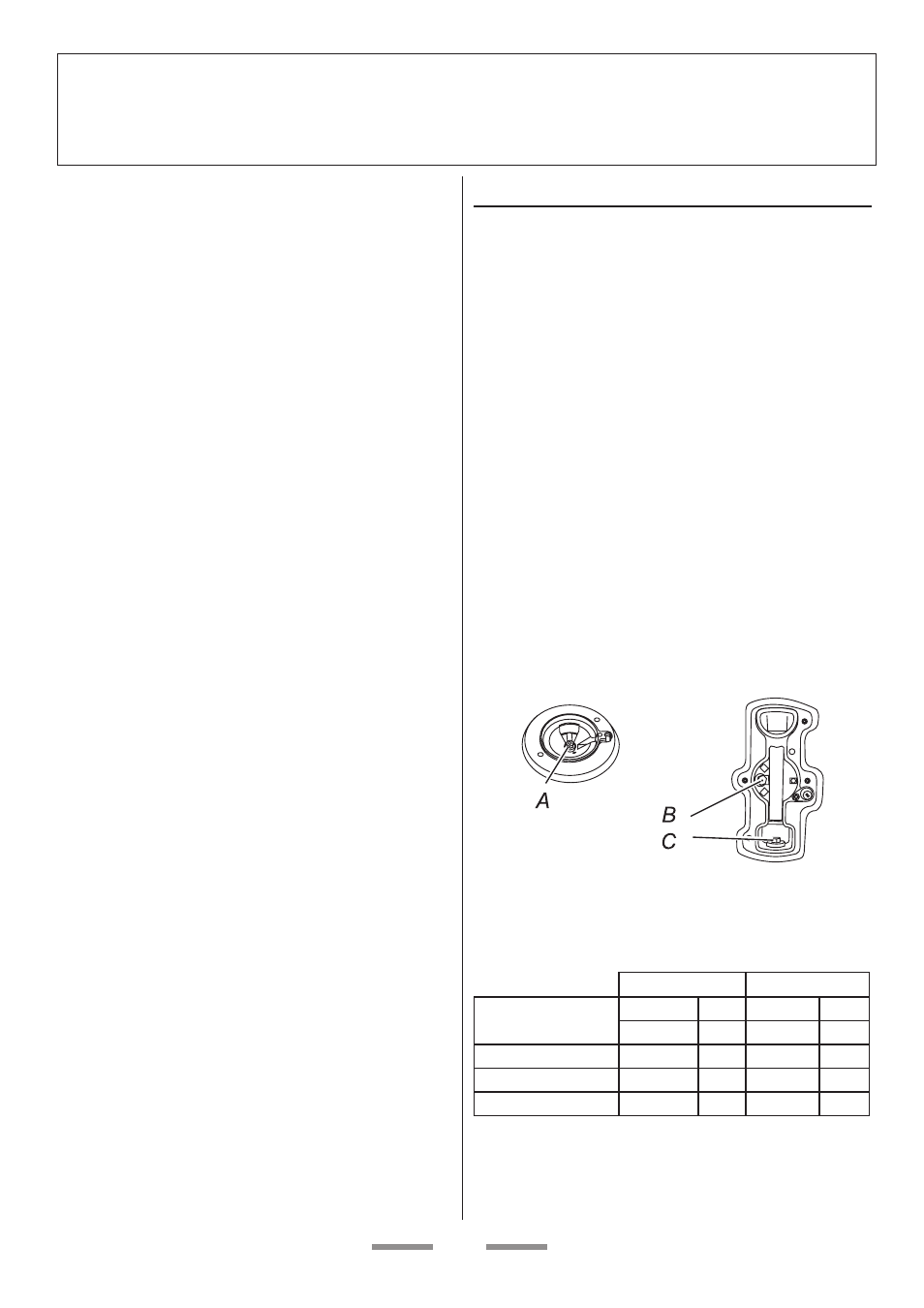

Orifices
Standard burner Wok burner
A orifice, B internal injector, C external injector
Remove burner caps and heads. Remove old
orifices, save the orifices removed from the appliance
for future use. Fit new orifices. Reassemble in
reverse order.
Orifices Natural Gas Propane Gas
Wok burner internal 110 internal 71
external 166 external 93
Large Burner 170 106
Medium Burners 150 84
Small Burner 107 61
Valve adjustment
Pull off all the control knobs.
Open the oven doors and remove the fixing screws
underneath the control panel.
