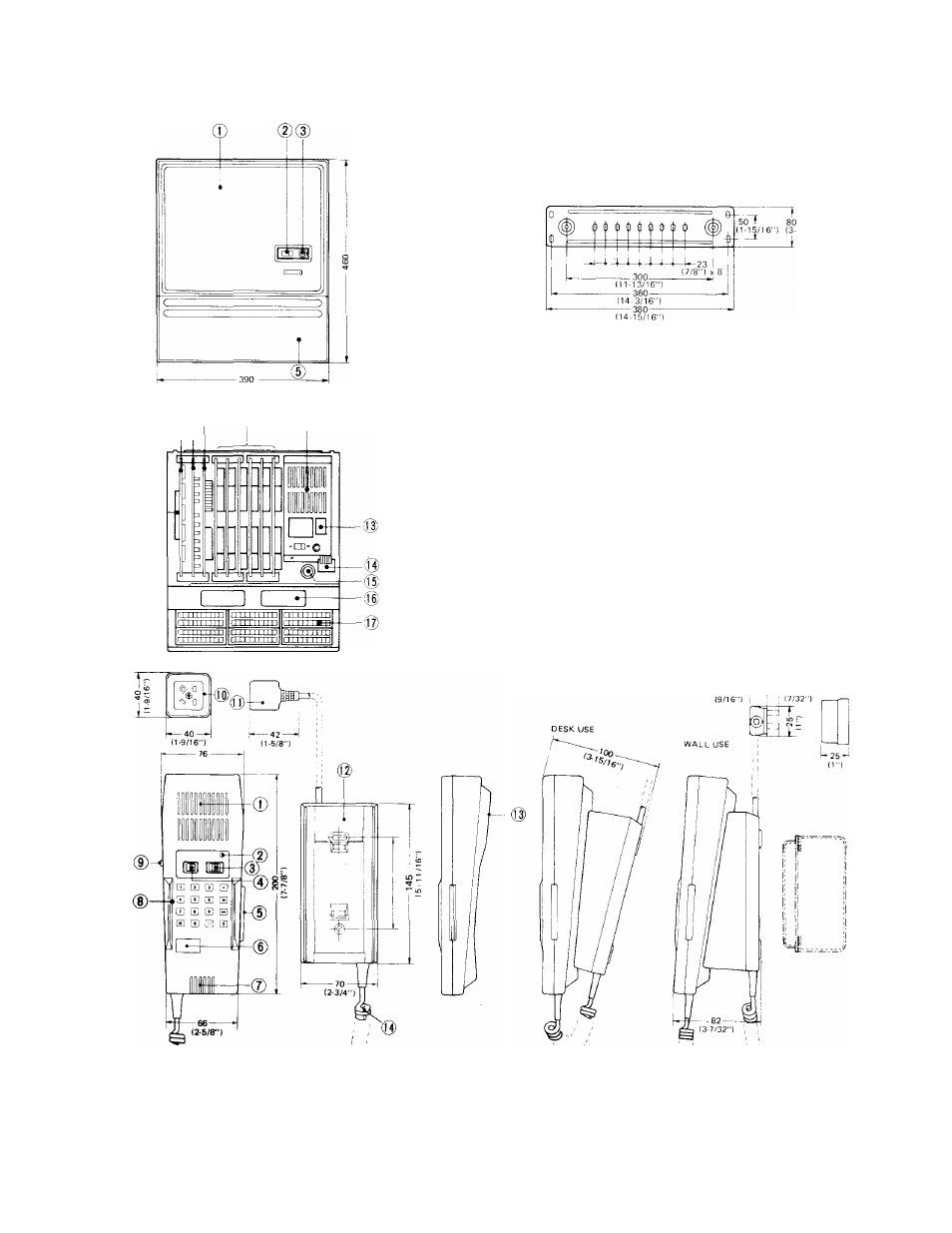

DIMENSIONS AND PARTS IDENTIFICATIONS

( 1 5 - 3 / 8 " )

— no -

( 4 - 5 / 1 6 " :

i®

; (D

Models: RAX-8, RAX-16, RAX-24

1. Main front cover

2. Power switch

3. Power lamp

4. Wall mounting bracket

5. Sub front cover

6. Screws for covers

7. Mother board

8. CPU Card (XC-060)

9. Function card (XC-061)

10. Voice-switching card (XC-062)

11. Subscriber card (XC-063)

12. Regulator unit

13. Automatic cutoff switch

(when cover is removed)

14. AC power terminals & ground terminal

15. Inlet for AC power line

16. Opening for cable from stations

17. Terminal block

n - 1 / 3 2 " )

26—

15-.J

Model: RA-A

1. Open voice speaker

2. Call lamp (also for secretary transfer)

3. Volume control switch

4. Privacy switch

5. Bar switch for handset communication

6. Station No. plate

7. Microphone

8. Dial key pad

9. Talk button for paging/

simplex communication

10. DR-A receptacle

11. 4P plug

12. Pedestal (die cast)

13. Receiver for handset communication

14. Coil cord

- 4 -
