Aiphone RAX R24/A User Manual
Page 18
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

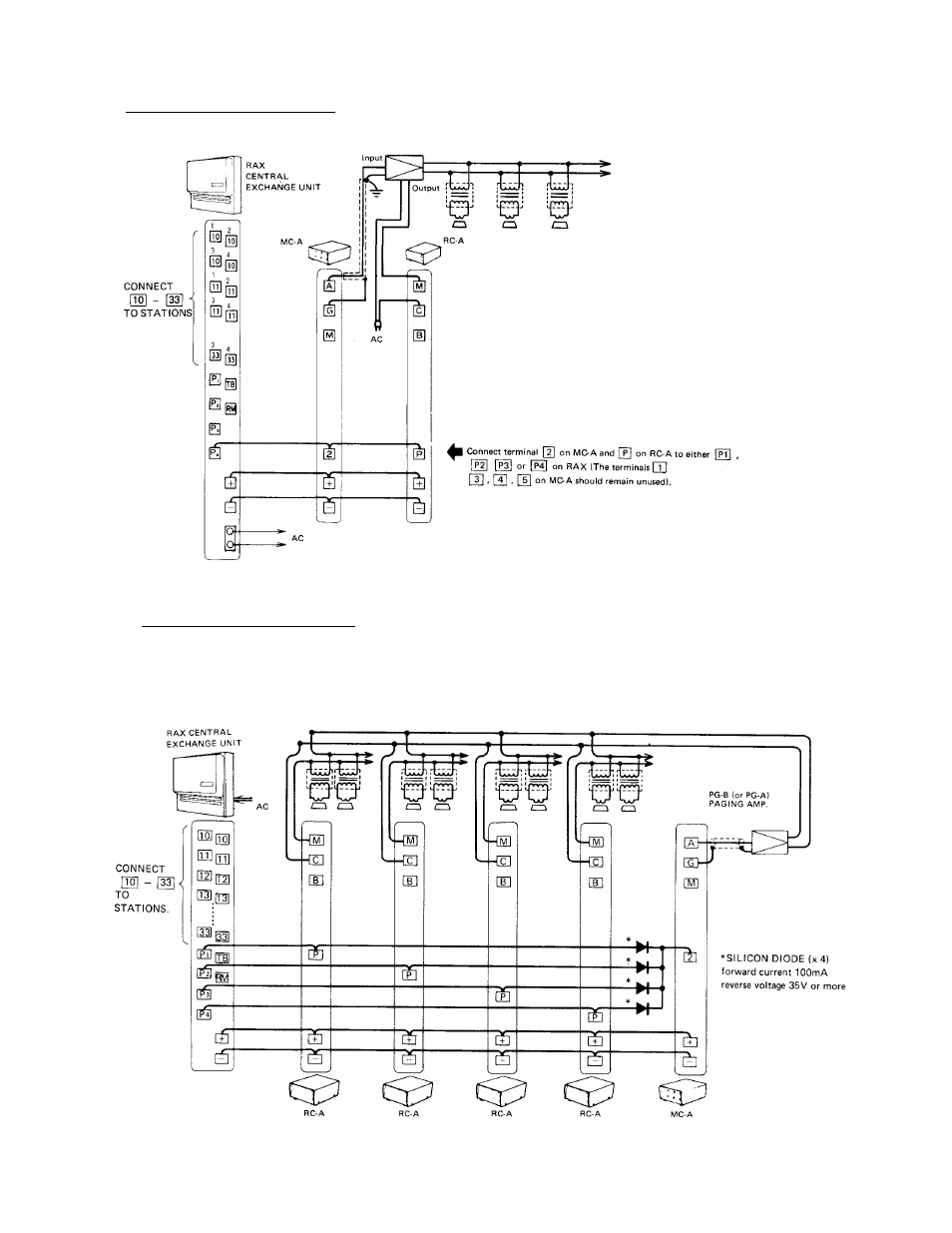

d) PAGING TO ONE ZONE, WITH REMOTE OPERATION OF POWERING AMPLIFIER ON WHEN PAGING,
USING RC-A ADAPTOR
(
4
) PAGING TO 4 ZONES, OR ALL PAGE, WITH ONE AMPLIFIER USING RC-A ADAPTOR
(WITHOUT BACKGROUND MUSIci
Notes: 1. RC-A adaptors must be located close to the RAX Central Exchange Unit.
2. The MC-A VOLUME CONTROL adjusts level of paging volume for 4 zones.
3. Output power of paging amp. must be sufficient to operate four paging zones simultaneously (All page).
-16-
