System Components

Central Exchange Unit

Station Equipment

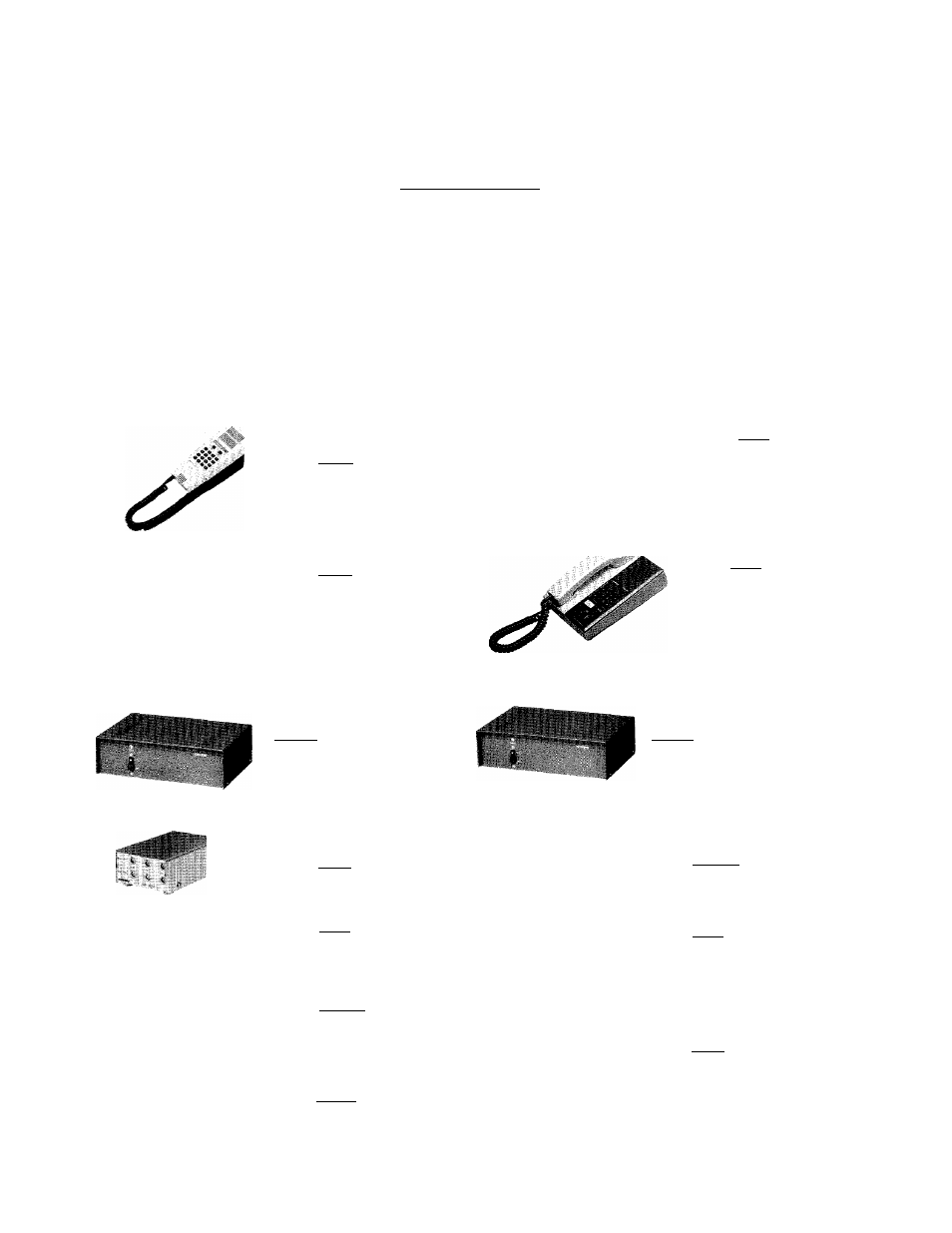

III. RAX System Design and Components

Models: RAX-8, RAX-16, RAX-24

Central Exchange Unit for systems up to 8, 16 or 24 stations.

Includes a central terminal board and power supply unit.

Model: RA-A, Open voice master

station, with handset communication
capability. Desk/wall use.

Model: RA-B, Open voice master

station, flush mount (indoor
use only).

Model: RA-C

Open voice sub station,
flush-mount (indoor

use only).

Model: RA-D

Speaker-phone type

master.

Desk/wall use.

Accessories available;

Model:

PG-10B (10 watts).
Standard Paging Amplifier,
with 100V or 8 ohms output.

Model:

PG-10A (10 watts),

UL/CSA Approved Pagaing
Amplifier with 25V and
70V output (available only

in North America)

Model: MC-A

Paging Adaptor.

Model: RC-A

Zone Paging Adaptor.

Model: SP-3NA

Standard 3 watt ceiling
speaker with built-in line
transformer.

Model: NBZ-M

Square frame for flush-mounting
of SP-3NA to ceiling.

Model: PB-YKX

Talkback Adaptor.

Model: RC-B

Remote Control Adaptor

for operating external

devices.

Model: N-EA

Round frame for surface
mounting ofSP-3NAto ceiling.

- 3 -
