RA-A'and RA-D have terminal cord of 2 m long (6-1/2"), male plug and shipped complete with female receptacle. When desk
mounting where cable must be run surface on the wall, fix the female receptacle to proper location and just plug in the male plug.
Receptacle installation

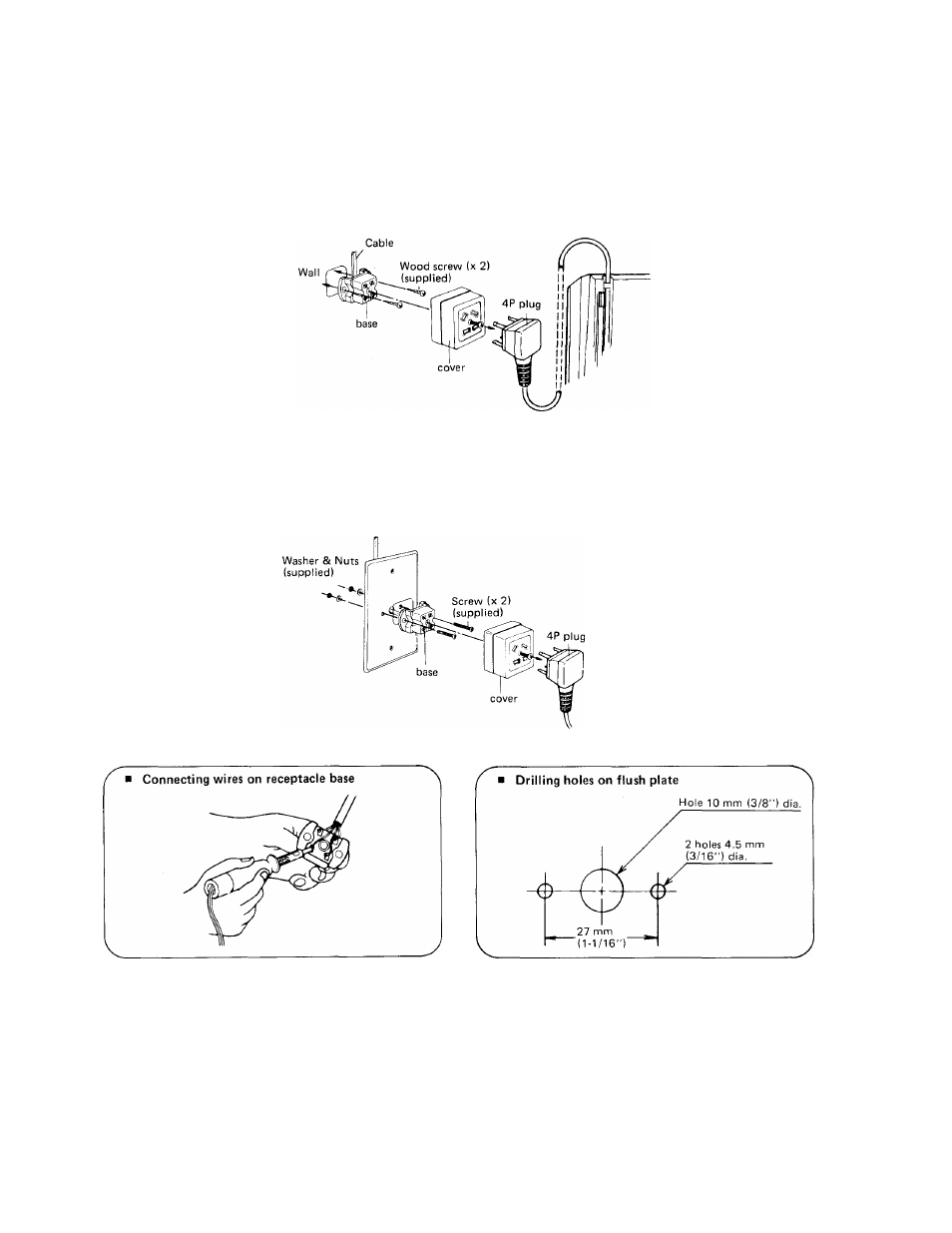

1. Mount the receptacle to wall as shown below;
2. When mounting the receptacle to flush plate, drill three holes on the flush plate and attach the receptacle with the screws
provided. Be careful not to install receptacle base upside down.
