CONTROLS AND FUNCTIONS

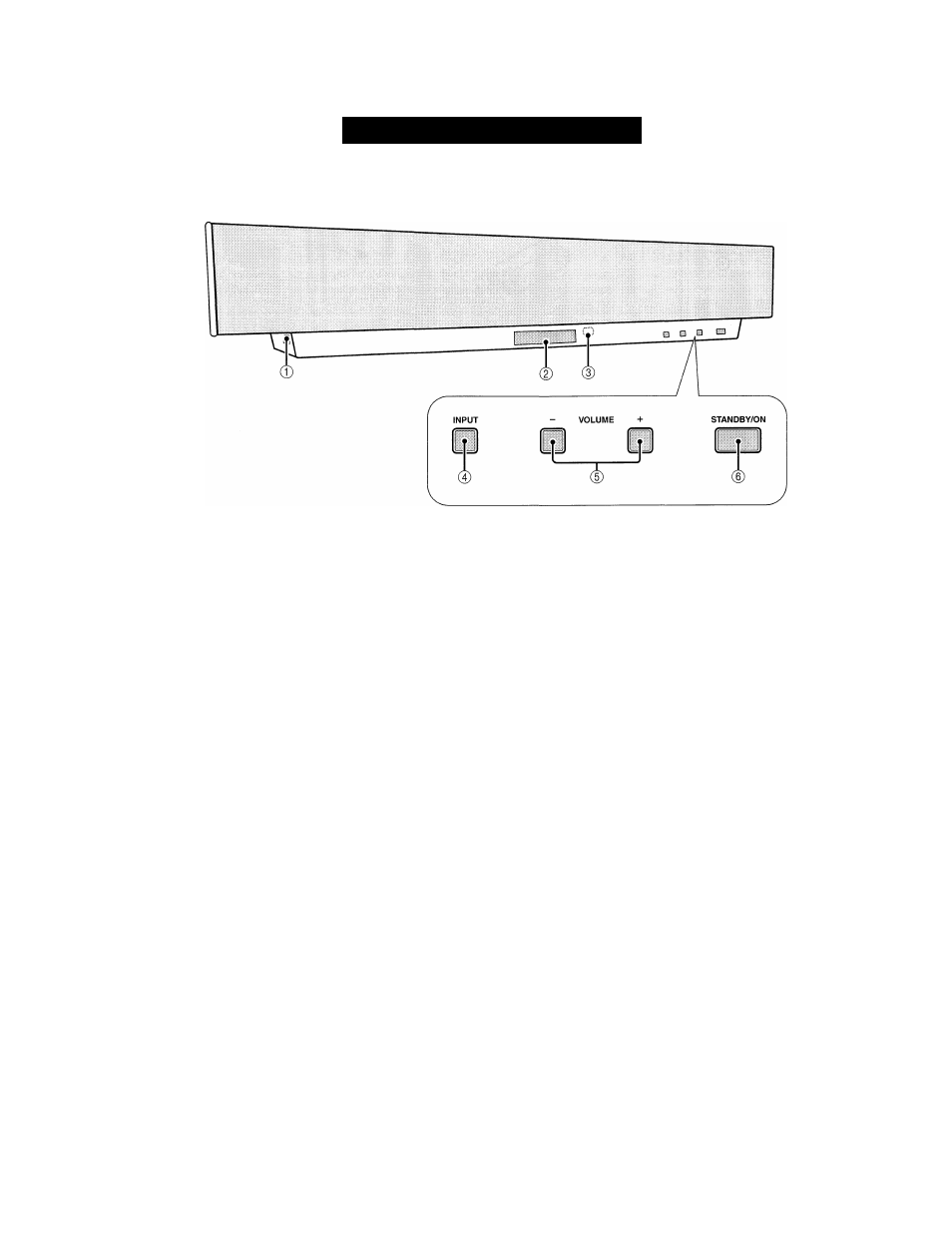

Front pane!

Use to connect the supplied optimizer microphone to be

used to run AUTO SETUP (see page 30).

Shows information about the operational status of this
unit.

@ Remote control sensor

Receives infrared signals from the remote control.

Press repeatedly to switch between input sources (TV,

STB, VCR, DVD or AUX). See page 39 for details.

Outputs a test tone to experience the sound beam (see

page 72).

® VOLUME-/+

Controls the volume level of all audio channels (see

page 41).

® STANDBY/ON

Turns on the power of this unit or sets it to the standby

mode (see page 25).

Nates

• When you turn on the power of this unit, you will hear a click

and there will be a 4 to 5-second delay before it can reproduce

sound.

• In the standby mode, this unit consumes a small amount of

power in order to receive infrared-signals from the remote

control.
