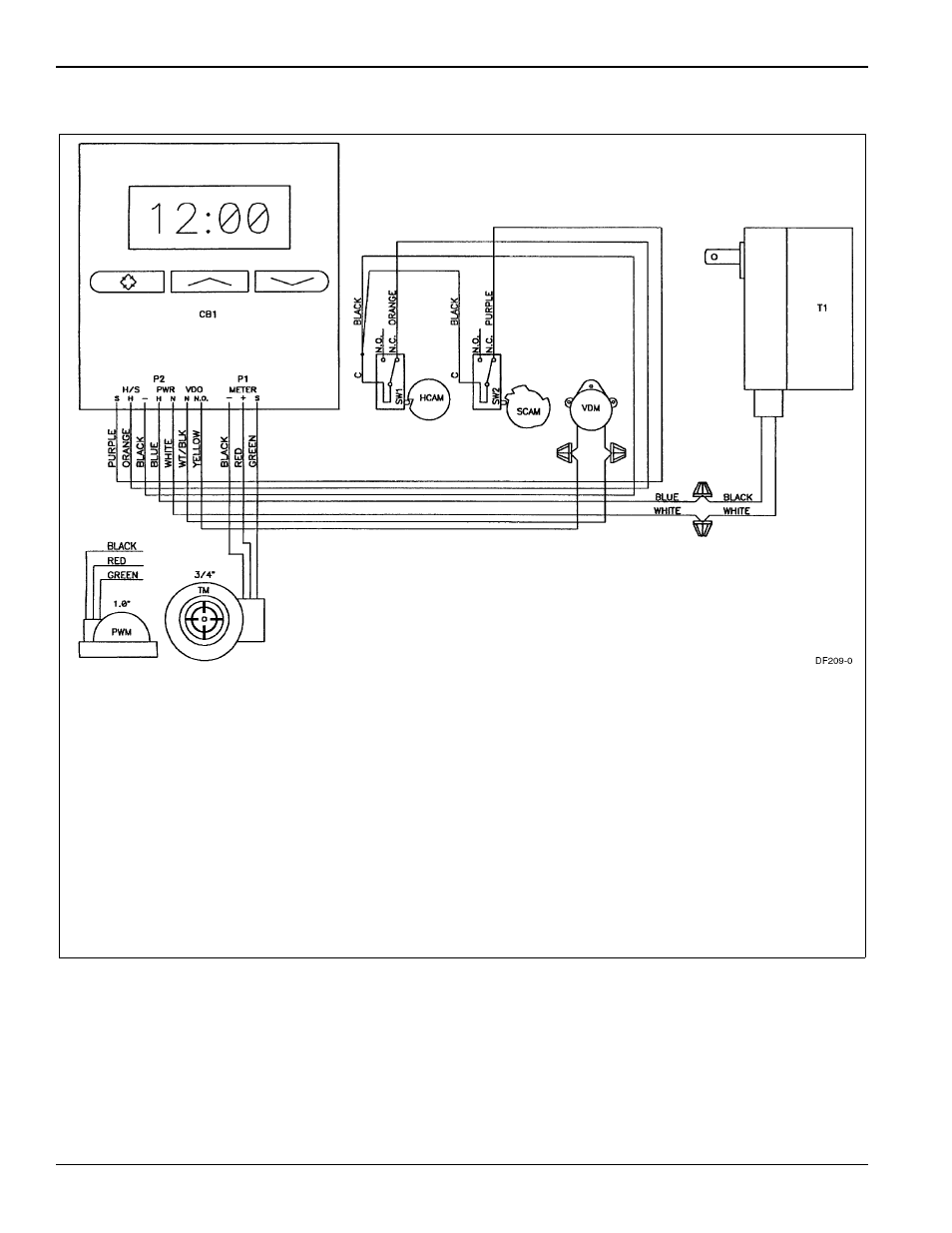

SE Timer Valve Wiring
Figure 48
CB1 - SE TIMER
T1 - 24V TRANSFORMER
TM - 3/4" TURBINE FLOW METER (OPTIONAL)
PWM - 1.0" PADDLE WHEEL FLOW METER (OPTIONAL)
VDM - VALVE DRIVE MOTOR
SW1 - VALVE HOMING SWITCH
SW2 - VALVE STEP SWITCH
HCAM - VALVE HOMING CAM
SCAM - VALVE STEP CAM
