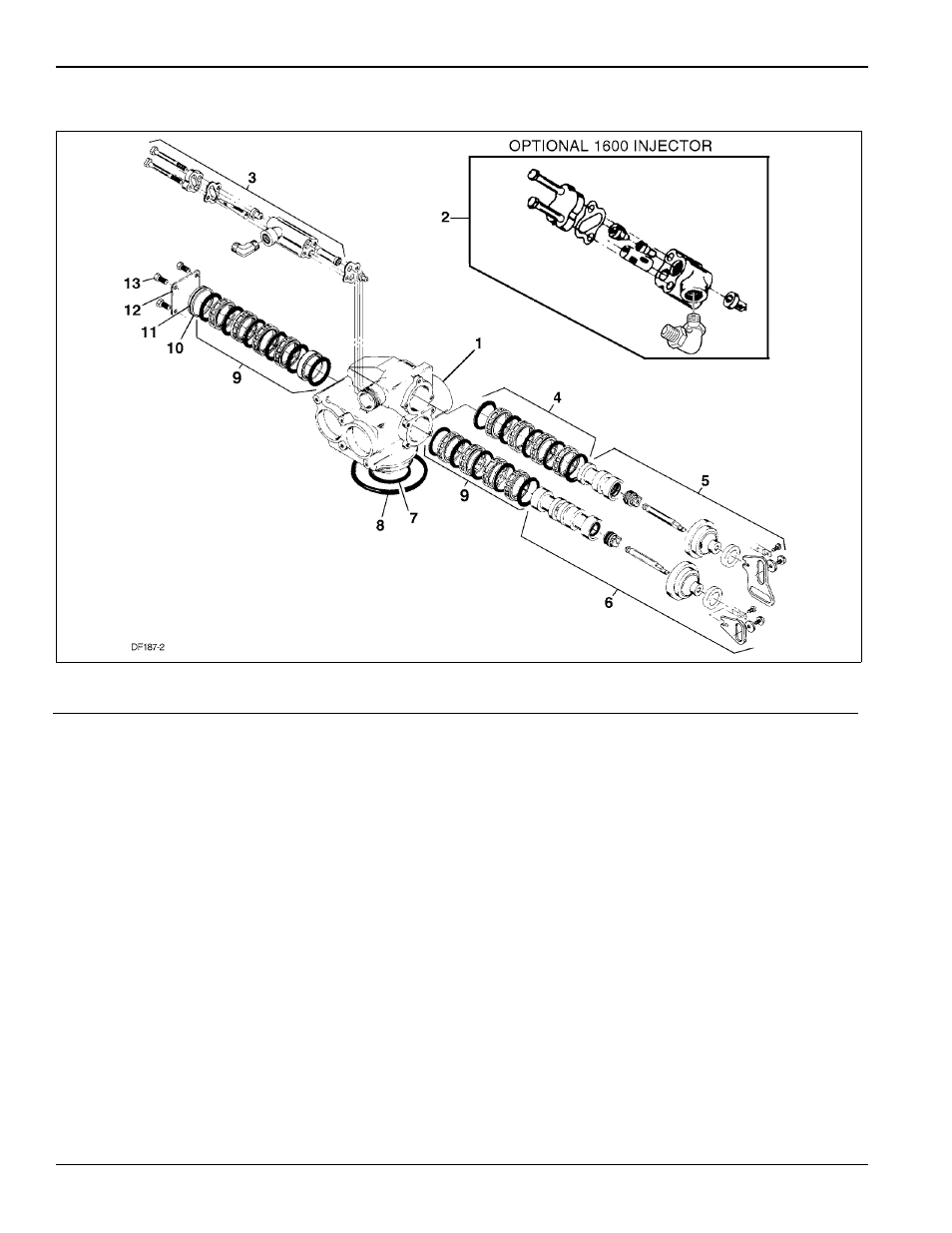

9500 Control Valve Assembly
Figure 25
Item Quantity Part Number Description
1 1 16919-01 valve body 9500 NPT, mechanical base
16919-01NP valve body 9500 NPT, mechanical base, nickel-plated
16919-21 valve body 9500 BSP/Metric, mechanical base
16919-21NP valve body 9500 BSP/Metric, mechanical base, nickel-plated
2 1 60080-XX injector assembly (see chart for dash numbers)
3 1 60039-XX injector assembly (see chart for dash numbers)
injector number
blue #2 02
yellow #3 03
green #4 04
white #5 05
4 1 60134 seal and spacer kit, top
60134-01 seal and spacer kit, top, hot water
60134 seal and spacer kit, top, silicone
5 1 60108 piston assembly, top
60108-01 piston assembly, top, hot water
6 1 60109 piston assembly, bottom
60109-01 piston assembly, bottom, hot water
7 1 60133 seal and spacer kit, bottom
60133-01 seal and spacer kit, bottom, hot water
60133-10 seal and spacer kit, bottom, silicone
8 1 16455 O-ring, 347
9 1 13577 O-ring, 226
10 1 16955 end plug
11 1 16394 O-ring, 029
12 1 14906 end plate
13 4 15137 screw, hex washer machine, 1-24 x 3/8
17657 screw, hex M5-40, Metric
Not Shown
14
16516 tool, seal and spacer stuffer
15 17623 tool, spacer puller
