Model 9000/9100/9500
18
SE Timer Control Start-Up Procedures
Display SE
In normal operation the Time Of Day display alternates with Volume Remaining and Tank in In Service displays
(
9000SE Timer only). As treated water is used, the Volume Remaining display counts down (in gallons) from a
maximum value to zero or (----). Once this occurs a Regeneration cycle initiates immediately or delayed to the set
Regeneration Time. Water flow through the valve is indicated by the flashing Flow Dot Indicator.
Set Time of Day
When the valve is In Service, press either the Set Up or Set Down button once to adjust the Time Of Day by one
digit. Press and hold to adjust by several digits.
Start an Extra Regeneration Cycle
Press the Extra Regeneration button to start an Extra Regeneration tonight. Press and hold the Extra
Regeneration button for 5 seconds to start an Extra Regeneration immediately.

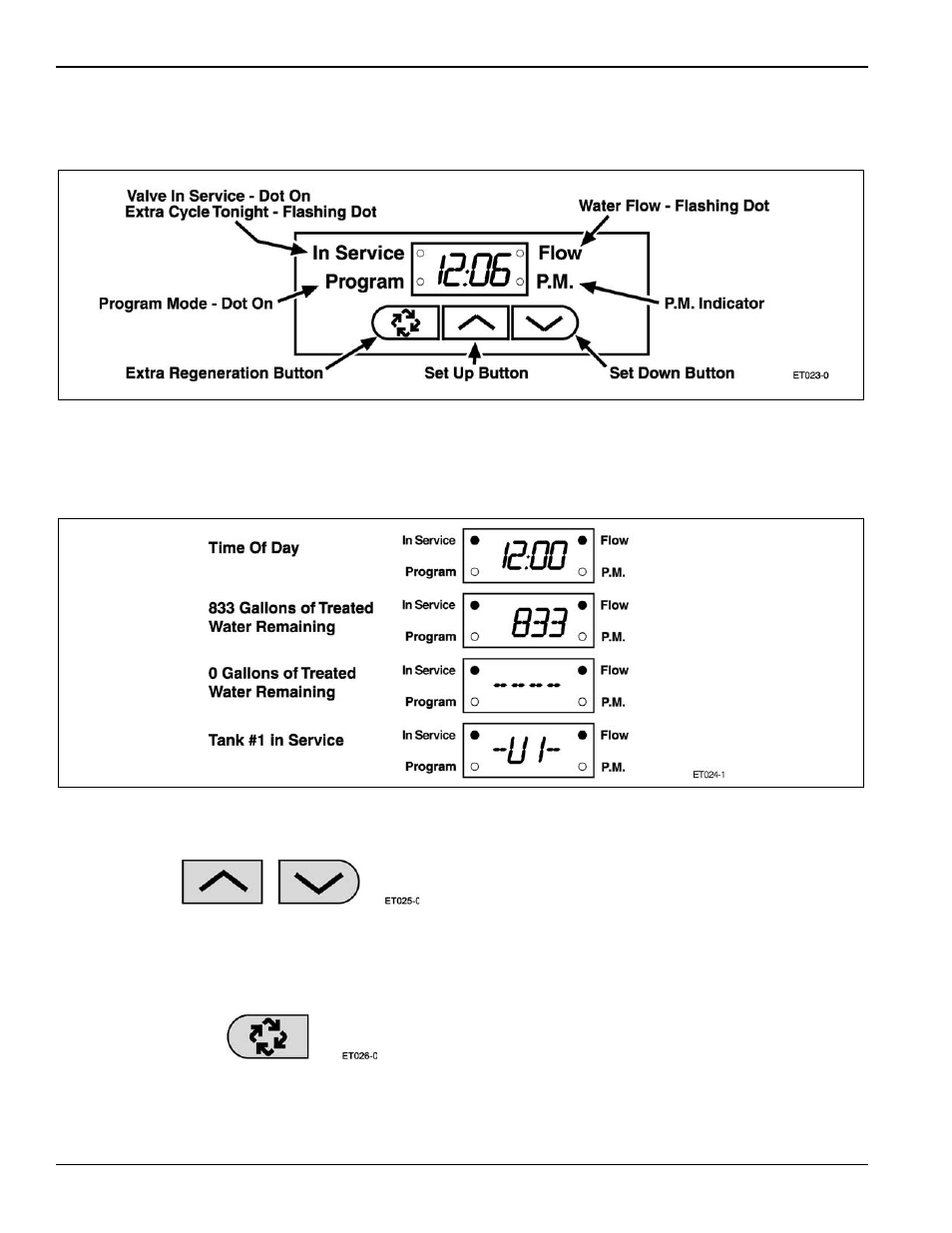

Figure 17: SE Timer Display
Figure 18: SE Timer Display During Normal Operation
