Model 9000/9100/9500

14

ET Timer Control Start-Up Procedure

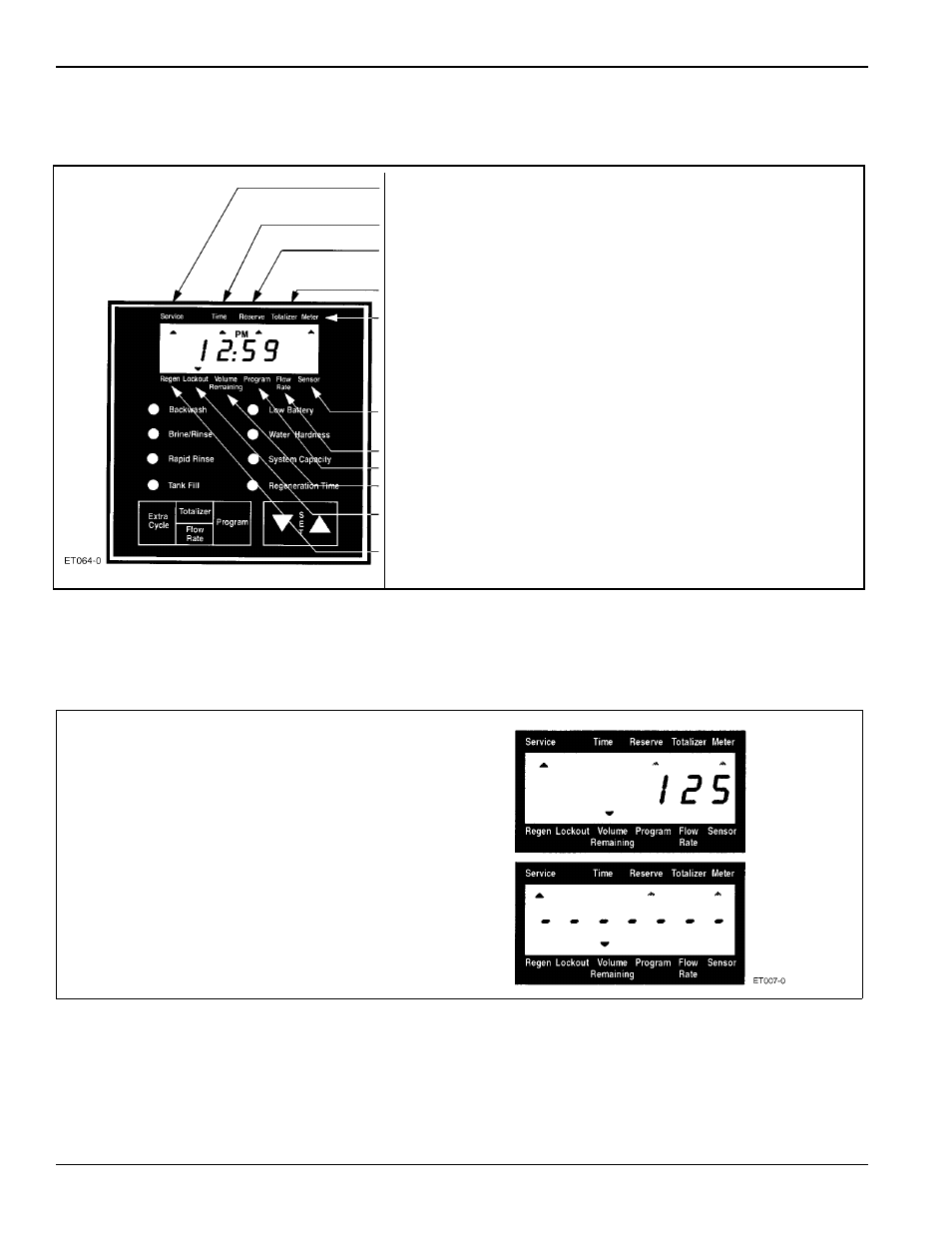

Display ET

Figure 10: ET Timer Display

In Normal operation the Time Of Day display alternates with the Volume Remaining display. The meter arrow
flashes in direct relation to the water flow rate through the unit. As treated water is used, the Volume Remaining
display counts down from a maximum value to the calculated reserve capacity. The Reserve arrow flashes when
the reserve capacity is being used. At the preset Regeneration Time, a Regeneration cycle initiates.

Figure 11

Service Indicator

Valve In Service, Arrow On
Manual Regeneration Tonight, Flashing Arrow

Time of Day Indicator

Reserve Indicator

Volume Remaining Above Reserve, Arrow Off
Volume Remaining At or Below Reserve, Arrow Flashing

Flow Indicator

No Water Flow, Arrow Off
Water Flow, Arrow Flashing

Totalizer Indicator

Flow Rate Indicator

Program Indicator

Volume Remaining Indicator

Sensor Indicator

Sensor Input Signal, Arrow Flashing
Valid Regeneration Signal, Arrow On

Lockout Indicator

Lockout Signal, Arrow On

Regeneration Indicator

Valve in Regeneration, Arrow On

Example:
125 gallons of water remaining
Valve In Service
No water flow
Volume is below reserve capacity

Example:
0 gallons of water remaining
Valve In Service
Water flowing
Meter arrow flashing
Volume is below reserve capacity
