Model 9000/9100/9500

46

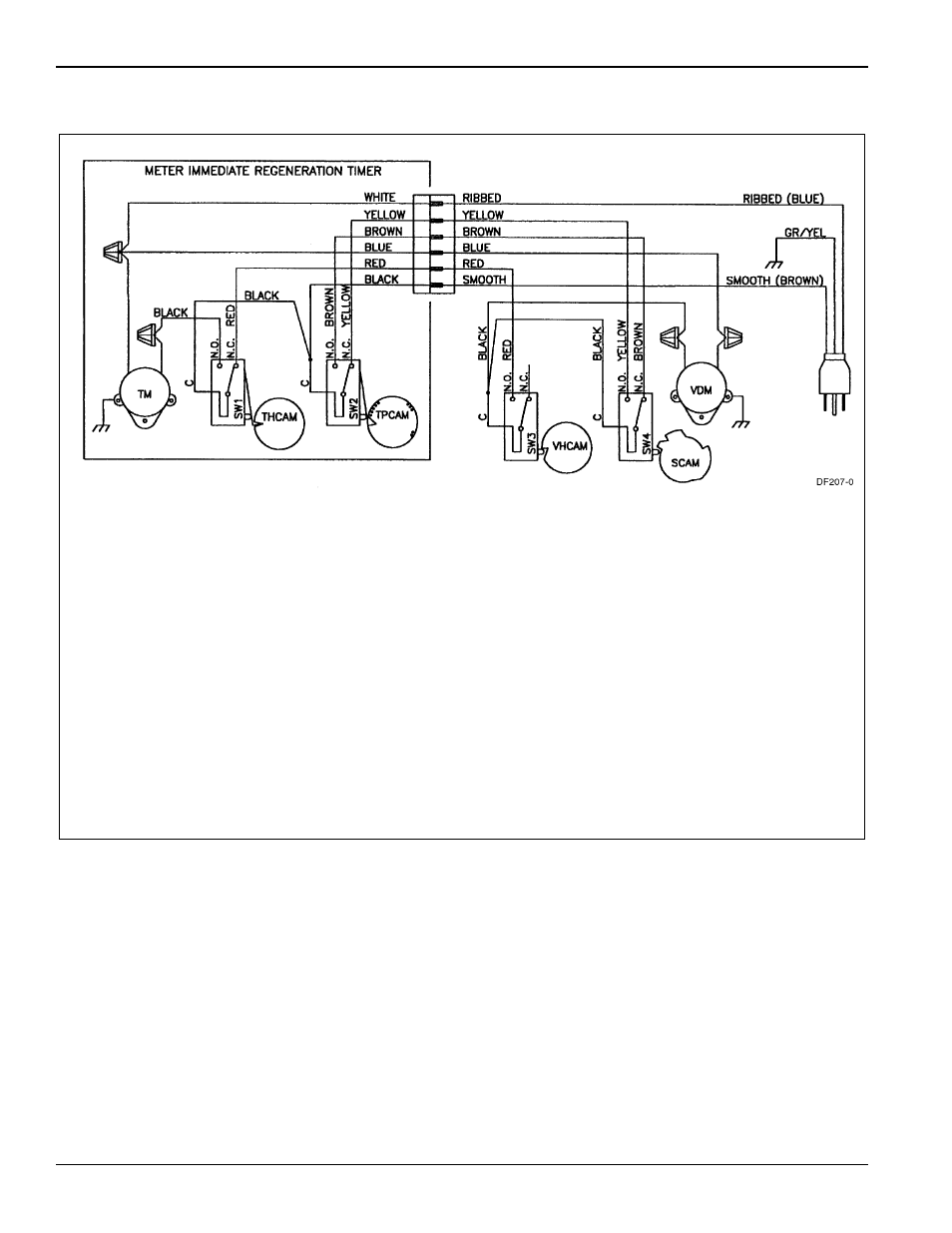

Mechanical Timer Valve Wiring

Figure 46

TM - TIMER MOTOR

VDM - VALVE DRIVE MOTOR

SW1 - TIMER HOMING SWITCH

SW2 - TIMER PROGRAM SWITCH

SW3 - VALVE HOMING SWITCH

SW4 - VALVE PROGRAM SWITCH

THCAM - TIMER HOMING CAM

TPCAM - TIMER PROGRAM CAM
