Model 9000/9100/9500

21

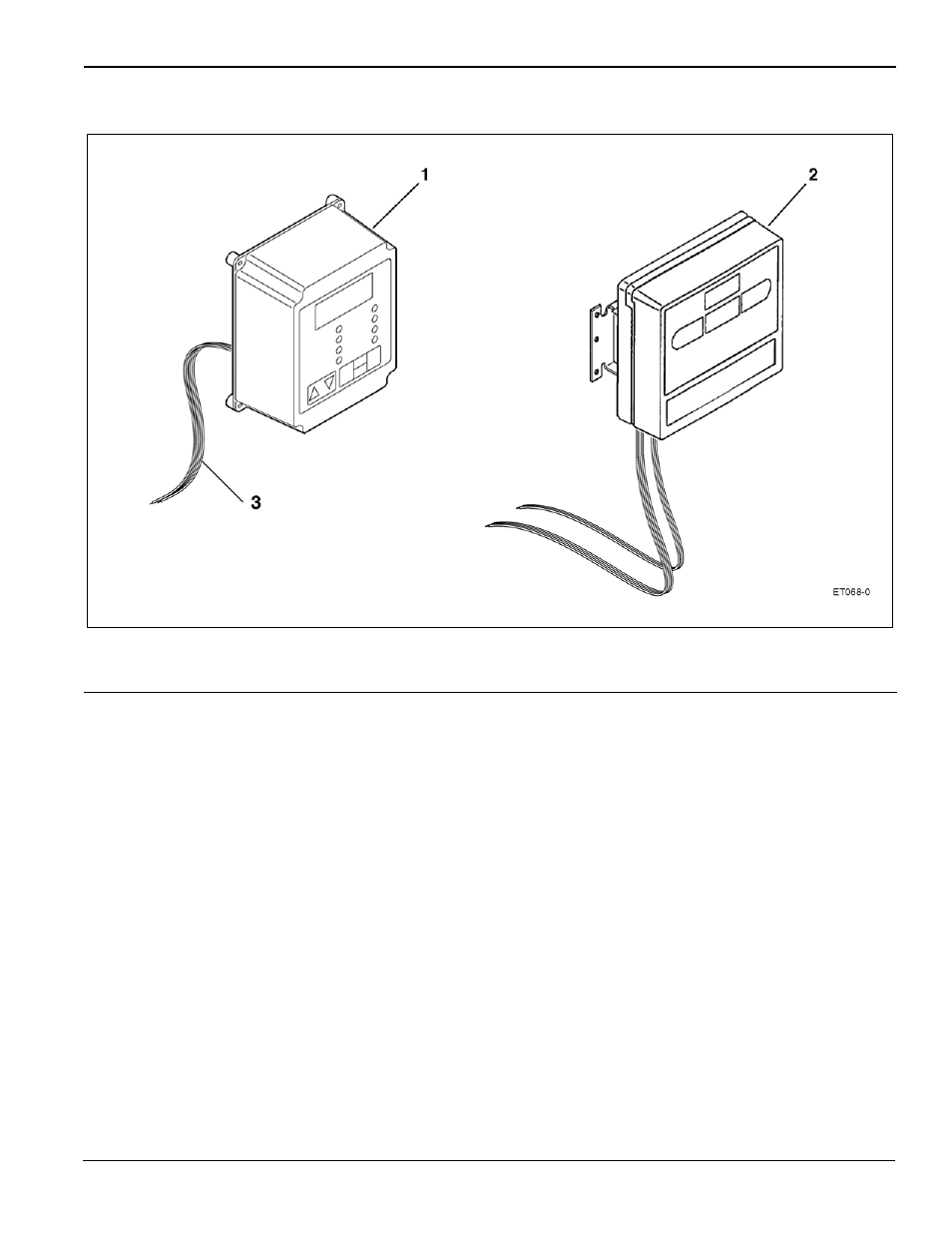

ET and SE Timer Assemblies

Figure 20

Item

Quantity

Part Number

Description

1

1

configured item

ET timer assembly

2

1

configured item

SE timer assembly

3

1

40427-03

wire harness
