ET Timer Valve Wiring
Twin Unit Meter/Timeclock/Sensor Regeneration

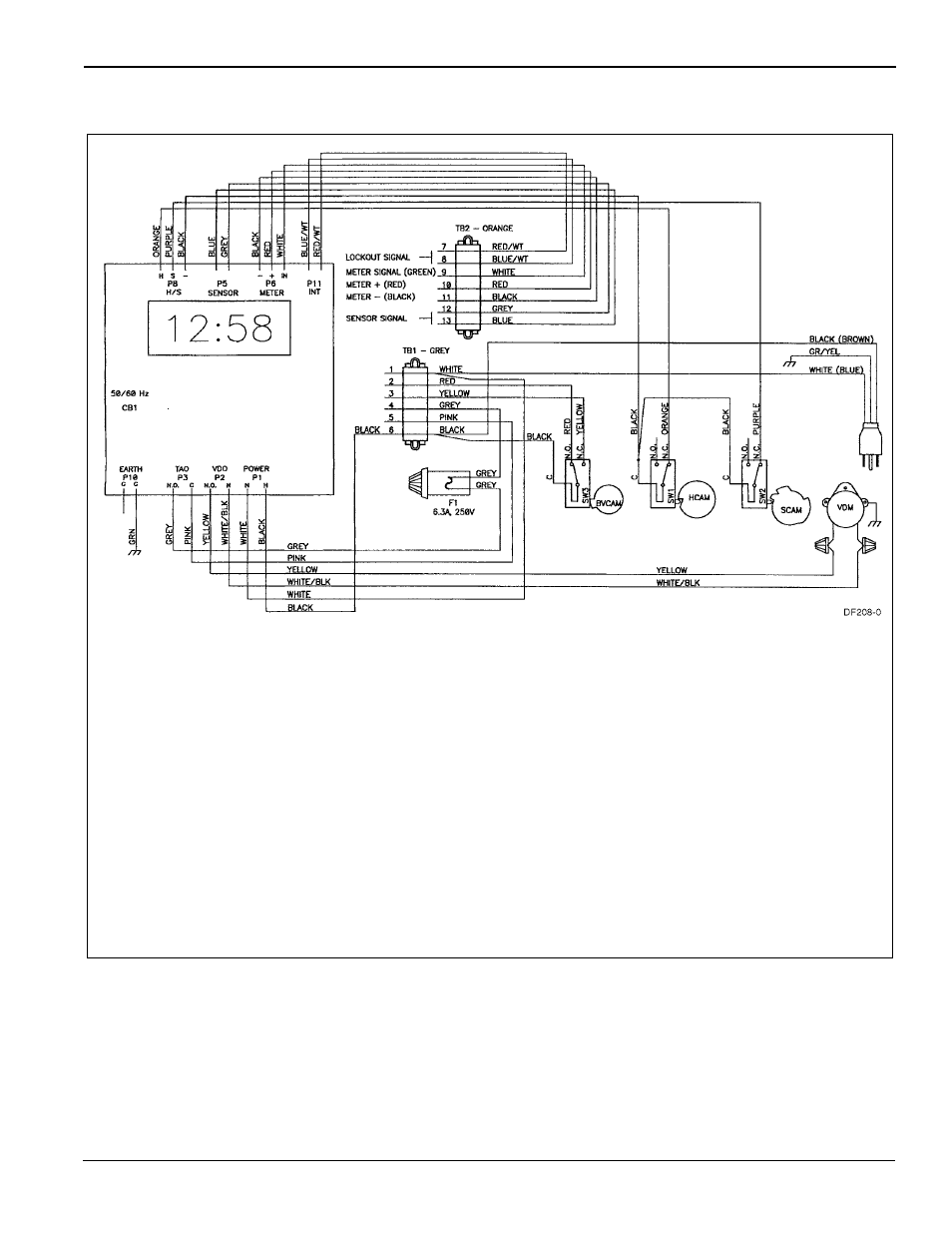

Figure 47
TB1 - HIGH VOLTAGE TERMINAL BLOCK
TB2 - LOW VOLTAGE TERMINAL BLOCK
CB1 - 3200ET CIRCUIT BOARD
F1 - TIMED AUXILIARY OUTPUT FUSE
VDM - VALVE DRIVE MOTOR
SW1 - HOMING SWITCH
SW2 - STEP SWITCH
SW3 - BRINE CAM SWITCH
HCAM - VALVE HOMING CAM
SCAM - VALVE STEP CAM
BVCAM - BRINE VALVE CAM
