Location The condensate pump is located within the base of the unit on the right hand side.
However if a humidifier is fitted as an integral part of the machine the condensate pump
is mounted under the unit. The pump is supplied loose with full instruction for onsite
fitment.
Fitting Instructions
The location of the pump assembly
depends on the type of Floorstand. Front
or Rear discharge air.
The pump is positioned near to the outlet
of the Floorstand air discharge allowing
unrestricted condensate flow. (Front or
Rear of the unit)
Pipework The pipework supplied loose can be cut to allow unrestricted condensate flow from the
condensate and humidifier drain. The pipework fitted is connected to the condensate
drain with a compression fitting. The pipework locates into the pump through grommet
holes.
Pipe Clips The flexible pipework clips are to be tightened sufficiently to maintain a water tight seal
during unit operation. Do not over tighten as this can damage the condensate hose.
Condensate Drain Priming The drain tray must be primed with water to ensure that the trap is full before the unit is
operated.
Checking for Leaks Check that the pipework and condensate drain tray do not leak water.
Condensate Pump
Operation Check that the condensate pump operates correctly and that the maximum pumping
head of 10.8 m is not exceeded. Ensure that a tundish is used to ensure free flow of
condensate to customer drains and therefore cannot back feed when the pump is
turned off.

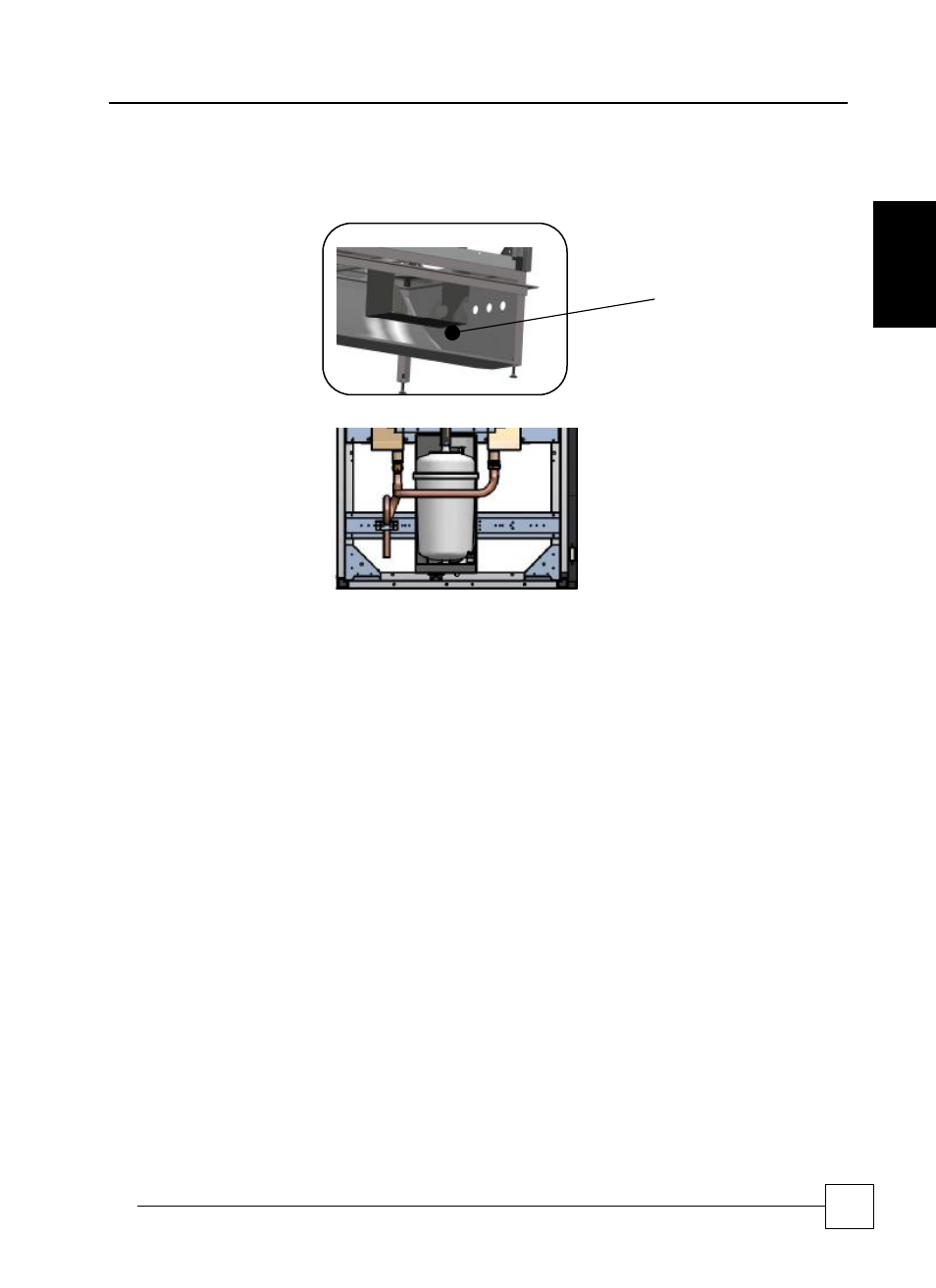

Condensate Pump
Support Bracket
Assembly
