Precision air conditioning, Smartcool – Airedale SmartCool 11-233kW User Manual
Page 13
Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
13
Installation, Maintenance and Commissioning Manual :6877419 02/2013

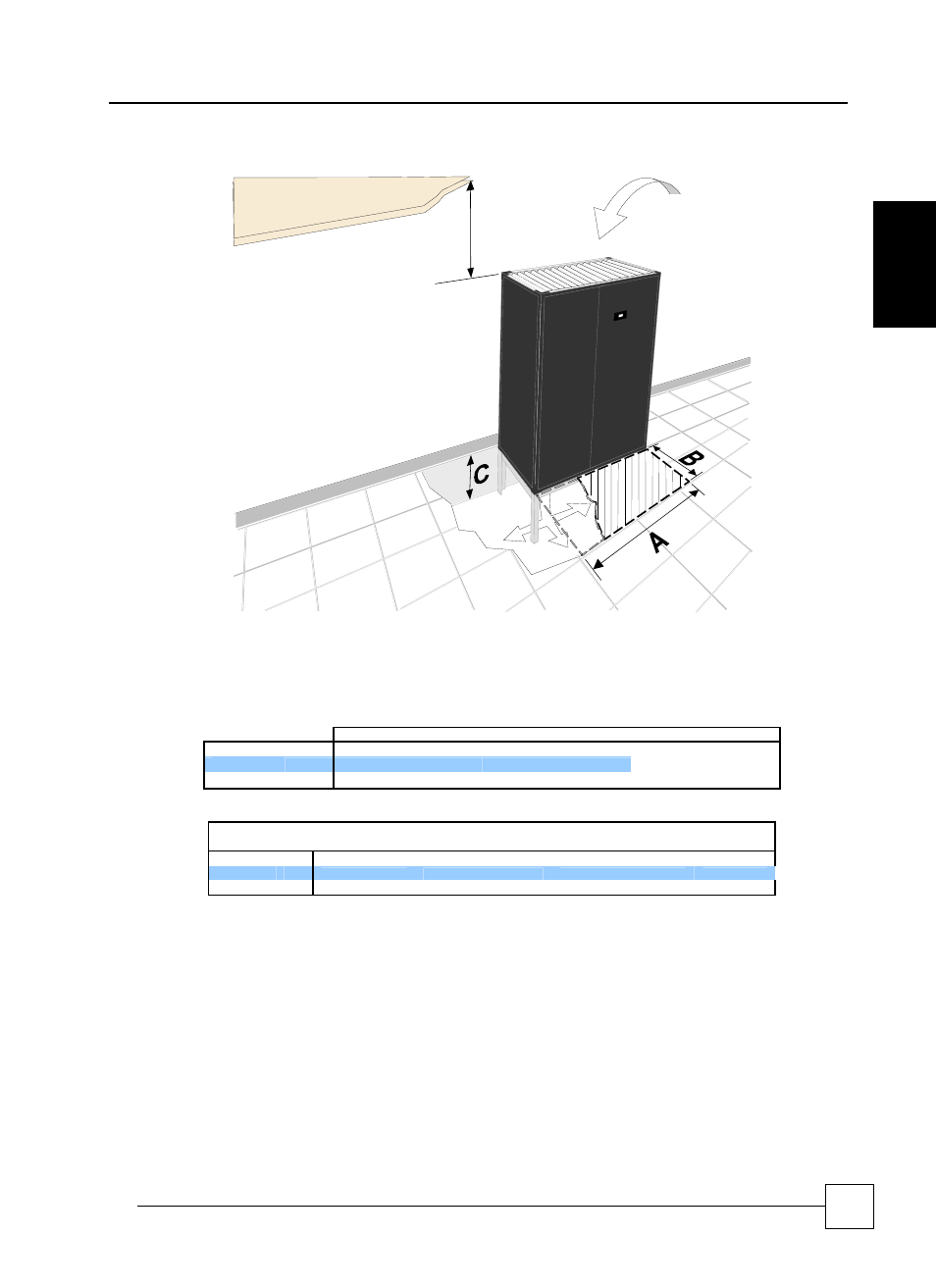

Positioning
Minimum Unit Clearance
Open & Enclosed Floorstand Option
A
B
C - Floorstand(3)
SC19D
mm
1985
800
Min 200 – Max 750
(+ 50mm Feet Adjustable +/-
20mm) (4)
SC25D
mm
2549
800
SC31D
mm
3113
800
Minimum Ceiling Clearance- (D)
Forward Only
Forward and 1 Side
Forward and 2 Sides
All Faces
SC19D
mm
720
500
380
250
SC25D
mm
740
550
440
280
SC31D
mm
750
590
480
300
Notes
(1)
Shown with optional open floor stand.
(2)
Shaded area indicates minimum service and maintenance requirements. The unit must be installed with allowance for carpet tile clearance.
(3)
Dimension C denotes recommended minimum/maximum floor stand height, refer to Airedale for special applications, please specify at order.
(4)
Min = Threaded foot at minimum extension (additional to “C” dimension).
Max = Threaded foot at maximum extension (additional to “C” dimension).
(2)
(D)
(1)
In
s
ta
ll
a
tio
n
