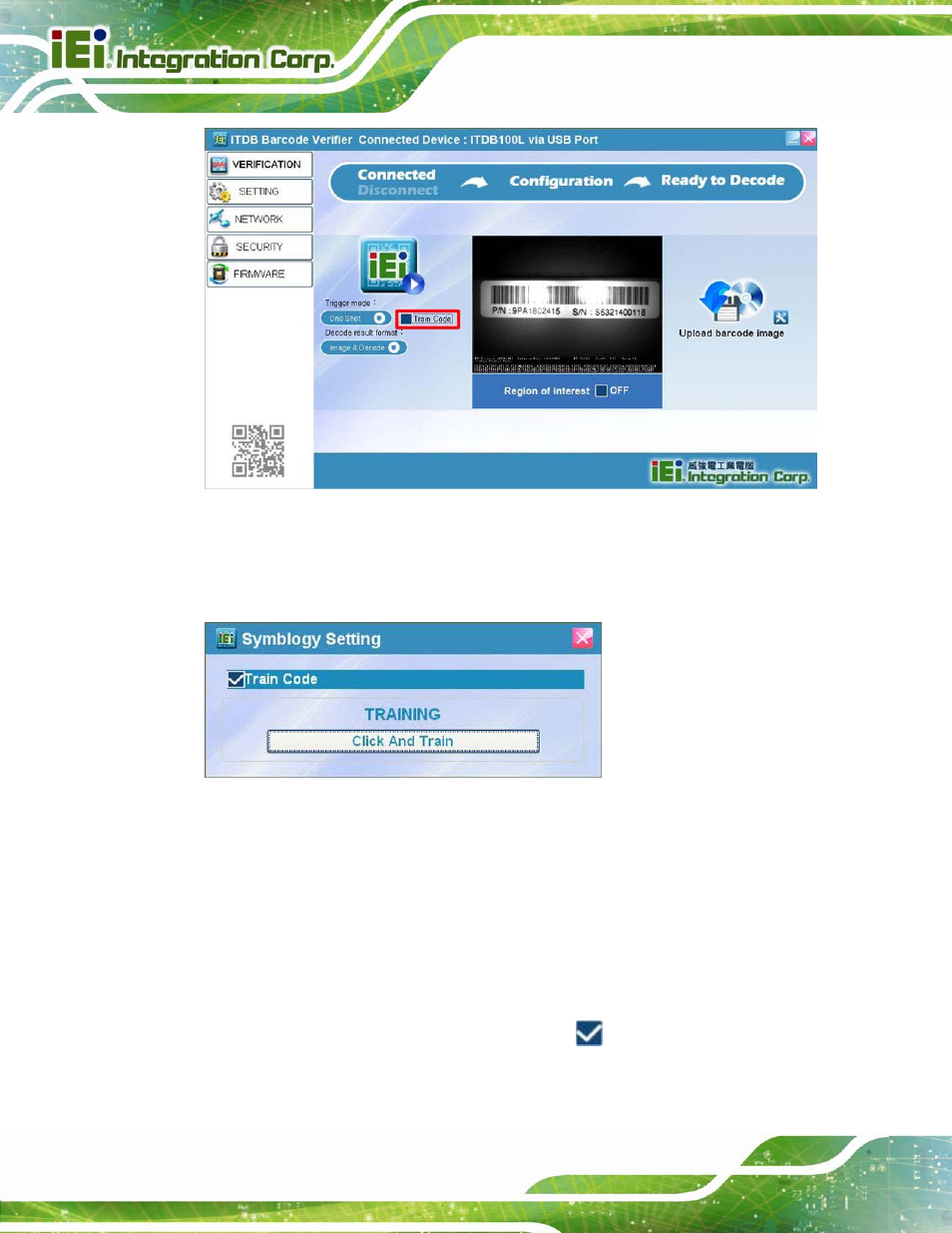

Figure 5-12: Train Code Item
Step 2: Four beeps are being generated, the illumination LEDs start to flash and the
screen in Figure 5-13 appears, indicating that the training mode timer is started.
Figure 5-13: Training Mode Timer is Started
Step 3: The user has to click the Click And Train button (Figure 5-13) to trigger the
ITDB-100L within twelve seconds after the timer is started.
The user can also trigger the ITDB-100L by pressing the trigger and tuning
control button once or even through an external sensor.
Step 4: When a barcode is set as a sample image successfully, two beeps should be
generated and the Train Code item displays .
If the barcode training is failed, four beeps will be generated.
