1 digital output wiring, 2 digital input wiring, Figure 3-5: digital output wiring – IEI Integration ITDB-100L User Manual

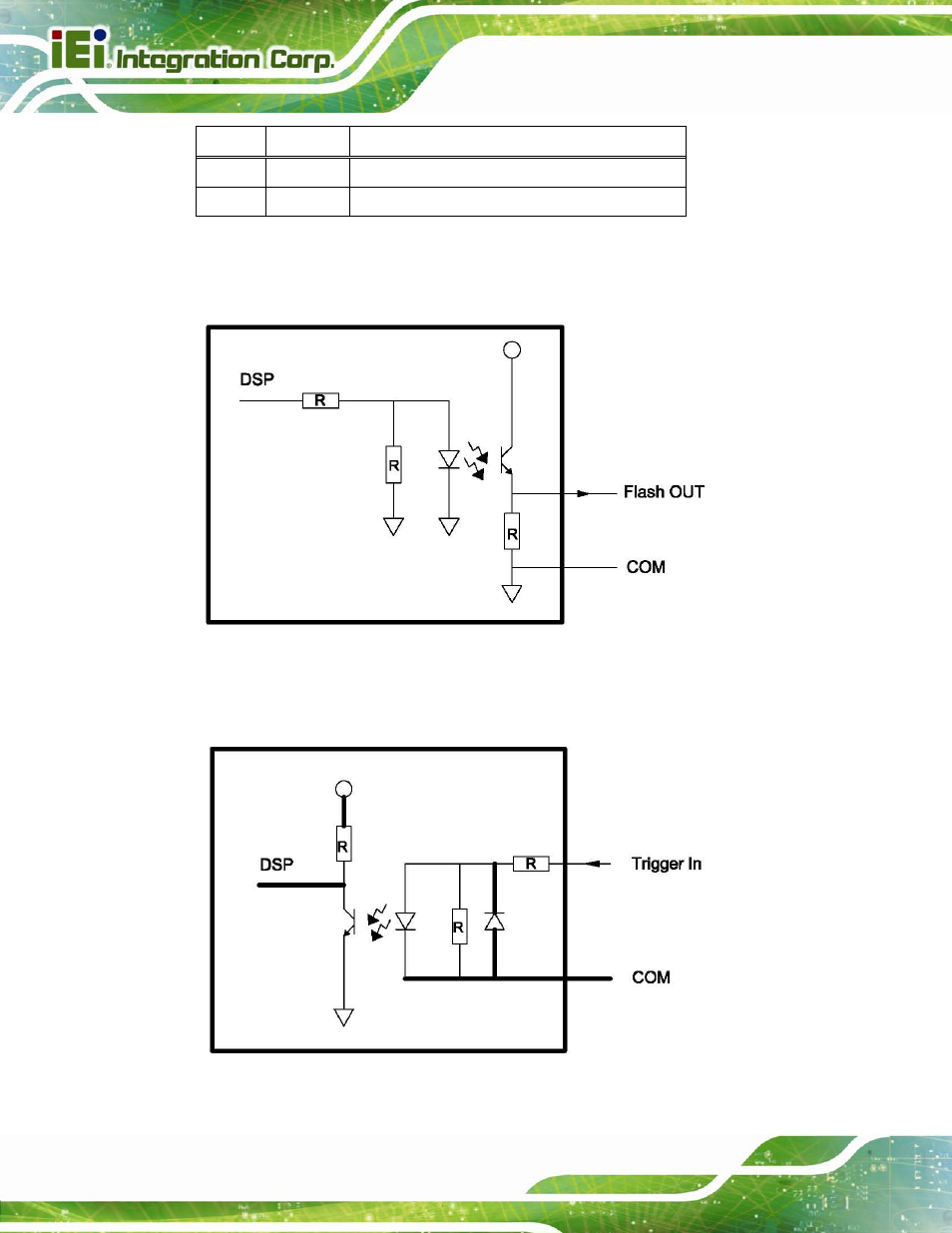

Page 29: Figure 3-6: digital input wiring, Table 3-1: connector pinouts
