GENERAL PUMP

A member of the Interpump Group

SM SERIES

Page 36

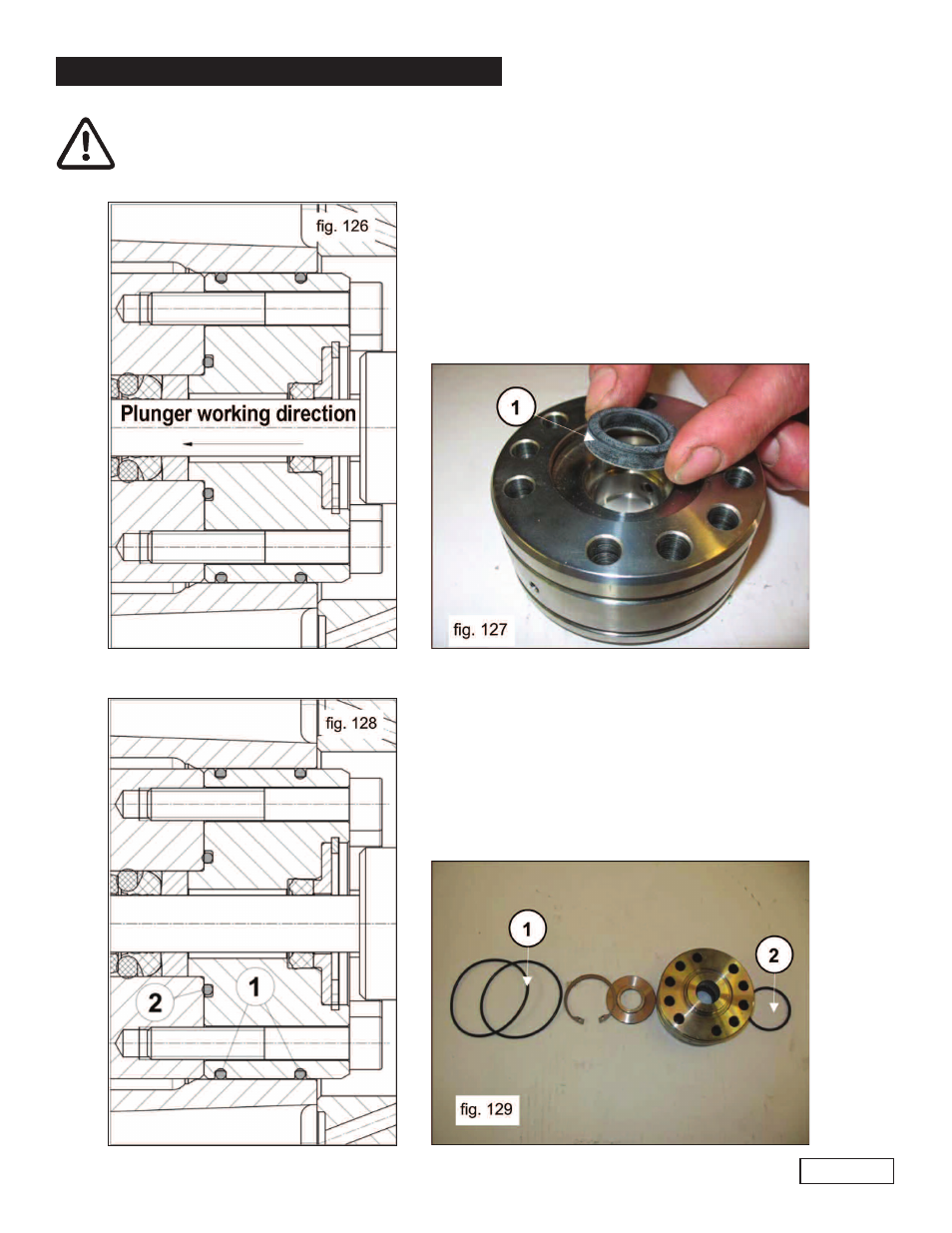

The LP seal must be inserted into the liner with the seal lip in the direction of plunger

operation (1, fig. 126 and 127), lightly lubricating the outside diameter with silicone

grease (OKS 1110 type). Replace the LP seal when it is worn.

Reassemble the seal support assembly (1, fig. 128 and 129), replacing the 1 and 2 components).

Ref 300894 Rev.A
