GENERAL PUMP

A member of the Interpump Group

SM SERIES

Page 35

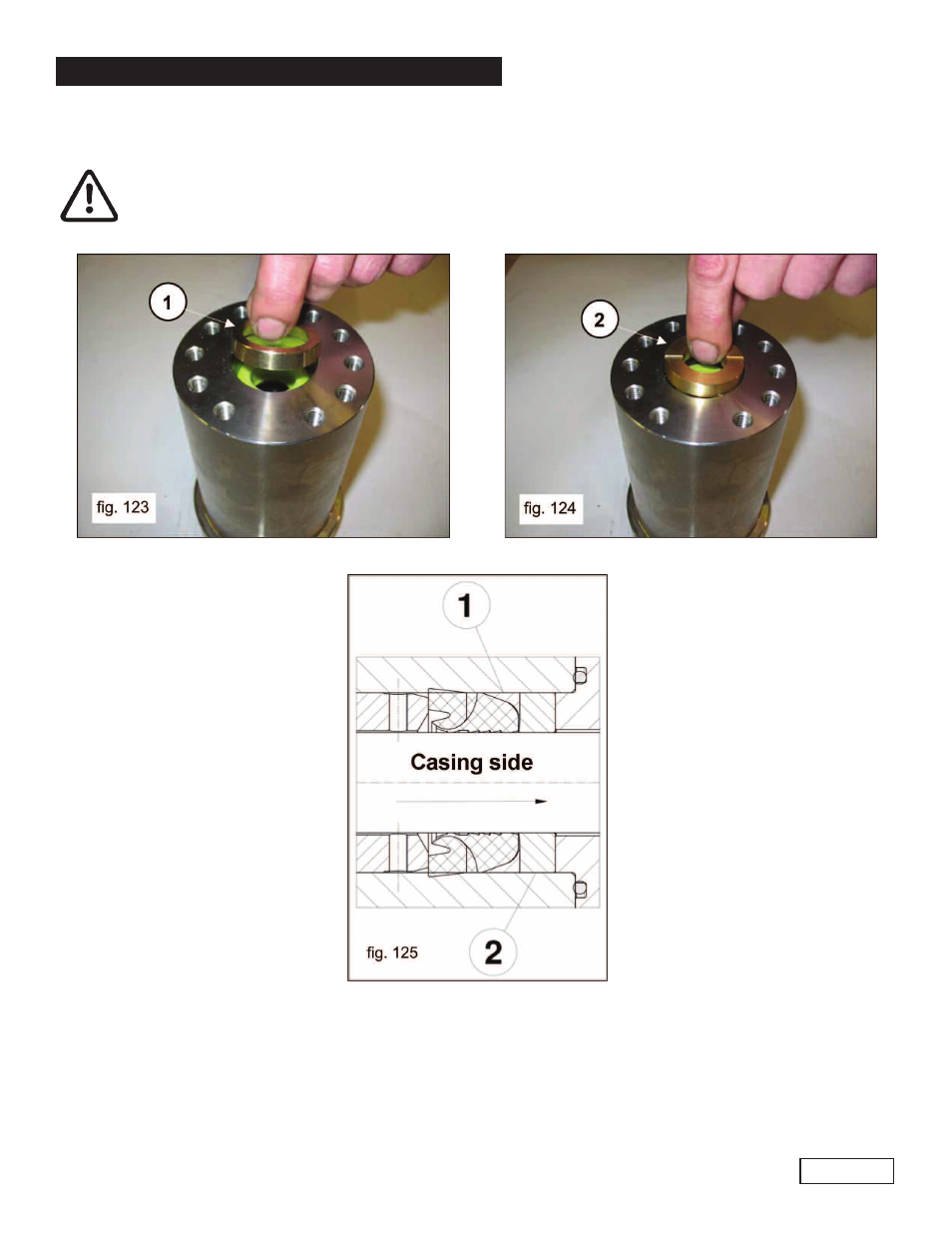

Insert the anti-extrusion ring and the seals bushing (1 and 2, fig. 123, 123, 125).

The seal bushing (2) must be inserted in the liner with the two discharges turned outward

(casing side) as indicated in fig. 124.

Ref 300894 Rev.A

06-12
