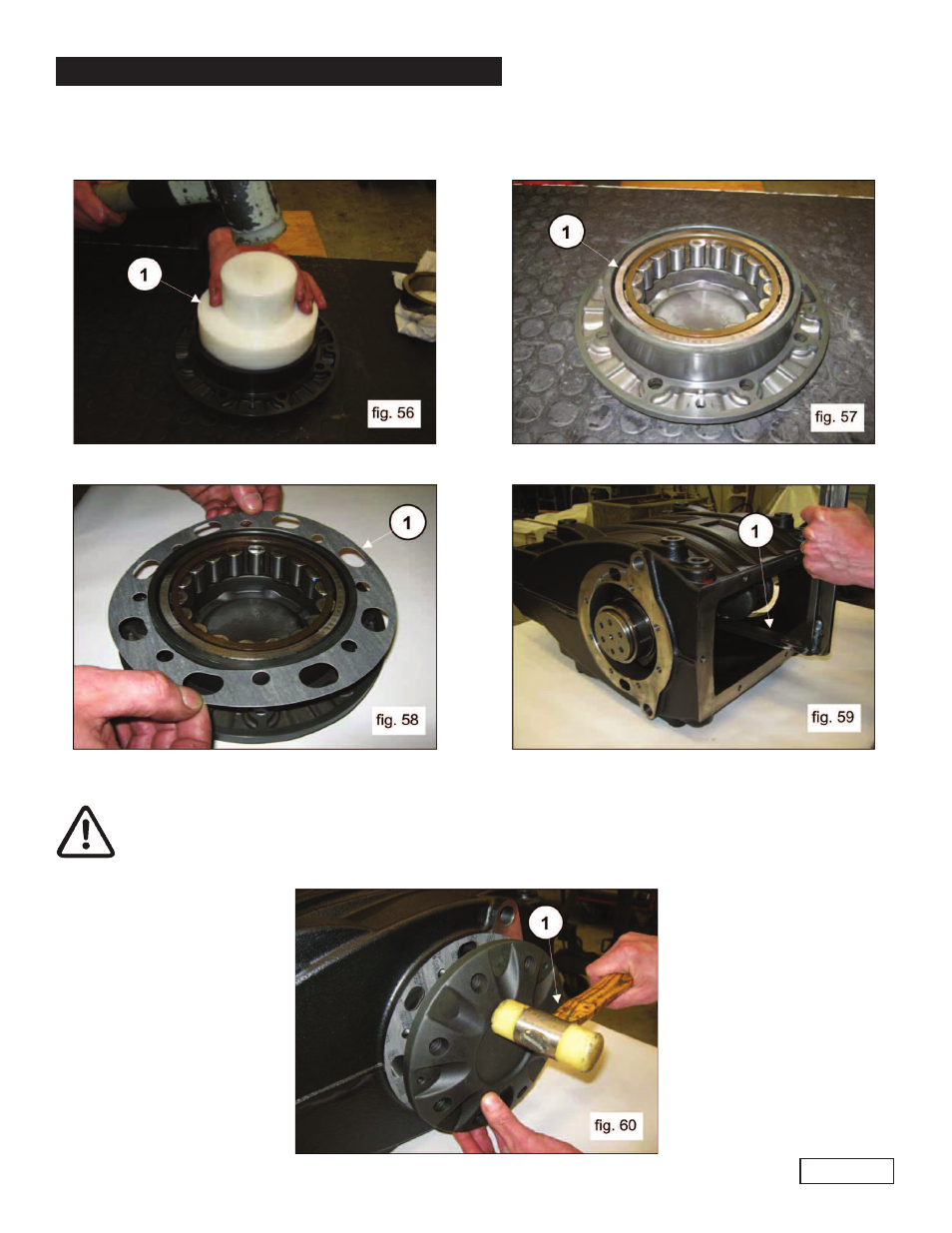

Assemble the bearing cover (and related seal) using an extractor hammer (1, fig. 60).
Position the bearing cover in such a way that the “Pratissoli” logo is perfectly
horizontal.
GENERAL PUMP
A member of the Interpump Group
SM SERIES
Repeat this operation on the bearing box, preassembling the external crankshaft bearing ring with the help of
special tool part #F27605000 (1, fig. 56), inserting fully down to end stroke (1, fig. 57).
Page 18
Insert the side seal on the bearing cover (1, fig. 58) and lift the crankshaft to favor cover insertion (1, fig. 59).
Ref 300894 Rev.A
06-12
