GENERAL PUMP
A member of the Interpump Group
SM SERIES
Page 26

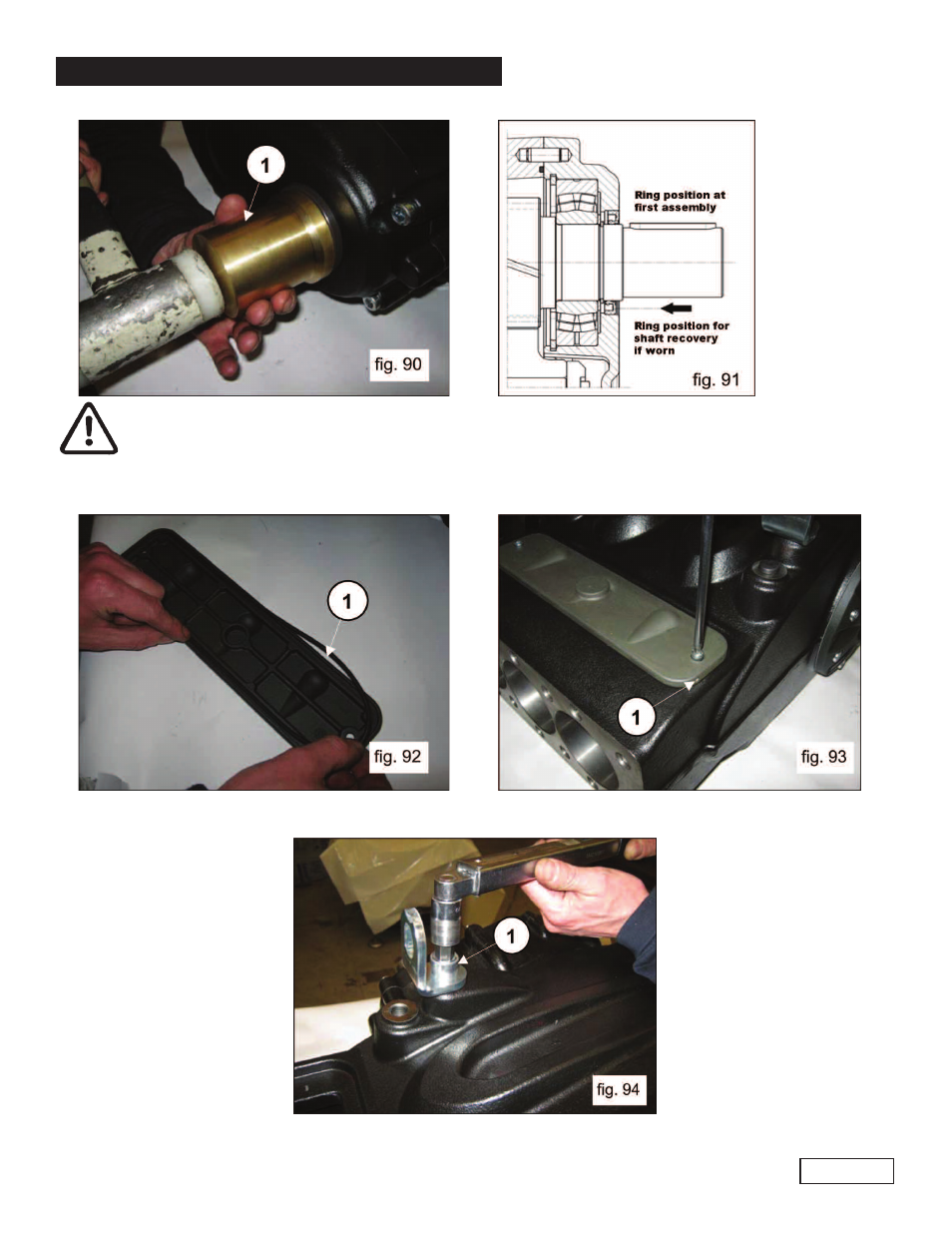

To prevent damage to the seal ring, take special care when inserting the seal ring on the
pinion.
Apply o-rings on the inspection covers (1, fig. 92 and tighten with 2+2 M6x14 screws (1, fig. 93). Calibrate
the screws with a torque wrench as indicated in Section 3 “Screw Tightening Calibration”.
Insert the tab 14x9x60 on the pinion. Apply plugs and lifting brackets with the use of M16x30 screws
(1, fig. 94). Calibrate the screws with a torque wrench as indicated in Section 3 “Screw Tightening Calibration”.
Ref 300894 Rev.A
06-12
Insert oil in the casing as indicated in the Owner’s Manual, Section 7.4.
