Remove the tool for blocking the connecting rods tool part #F27566200 (1, fig. 32)

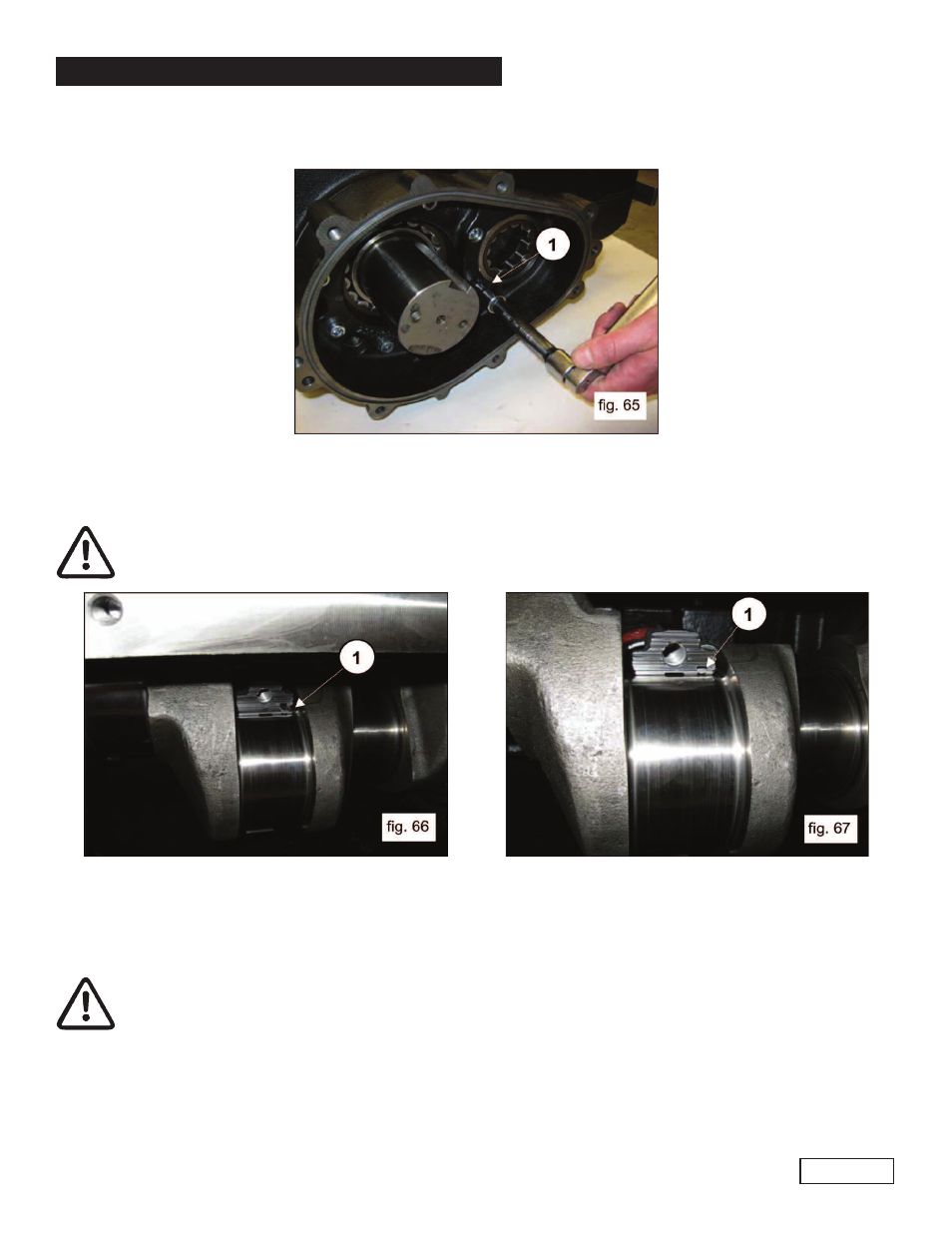

Insert the upper half-bearings between the connecting rods and the shaft (1, fig. 66).
For proper assembly of the half bearings, ensure that the reference tab on the half-bearings
are positioned in their housing on the half support (1, fig. 67).
GENERAL PUMP
A member of the Interpump Group
SM SERIES
Page 20 Ref 300894 Rev.A
06-12
Tighten the (8) M10x40 screws (1, fig. 65). Calibrate the screws with a torque wrench as indicated in Section
3, “Screw Tightening Calibration”.
Apply the lower half-bearings to the caps (1, fig. 68) ensuring that the half-bearing reference notches are
positioned in their housing on the cap (1, fig. 68).
Fasten the caps to the half supports by means of M10x1.5x80 screws (1, fig. 69).
Note the correct assembly direction of the caps. Numbering must be turned upward.
Calibrate the screws with a torque wrench as indicated in Section 3 “Screw Tightening Calibration”, bringing
the screws to tightening torque at the same time.
