General Pump SM Repair Manual - Manual (Page 34)

GENERAL PUMP
A member of the Interpump Group
SM SERIES
Page 34

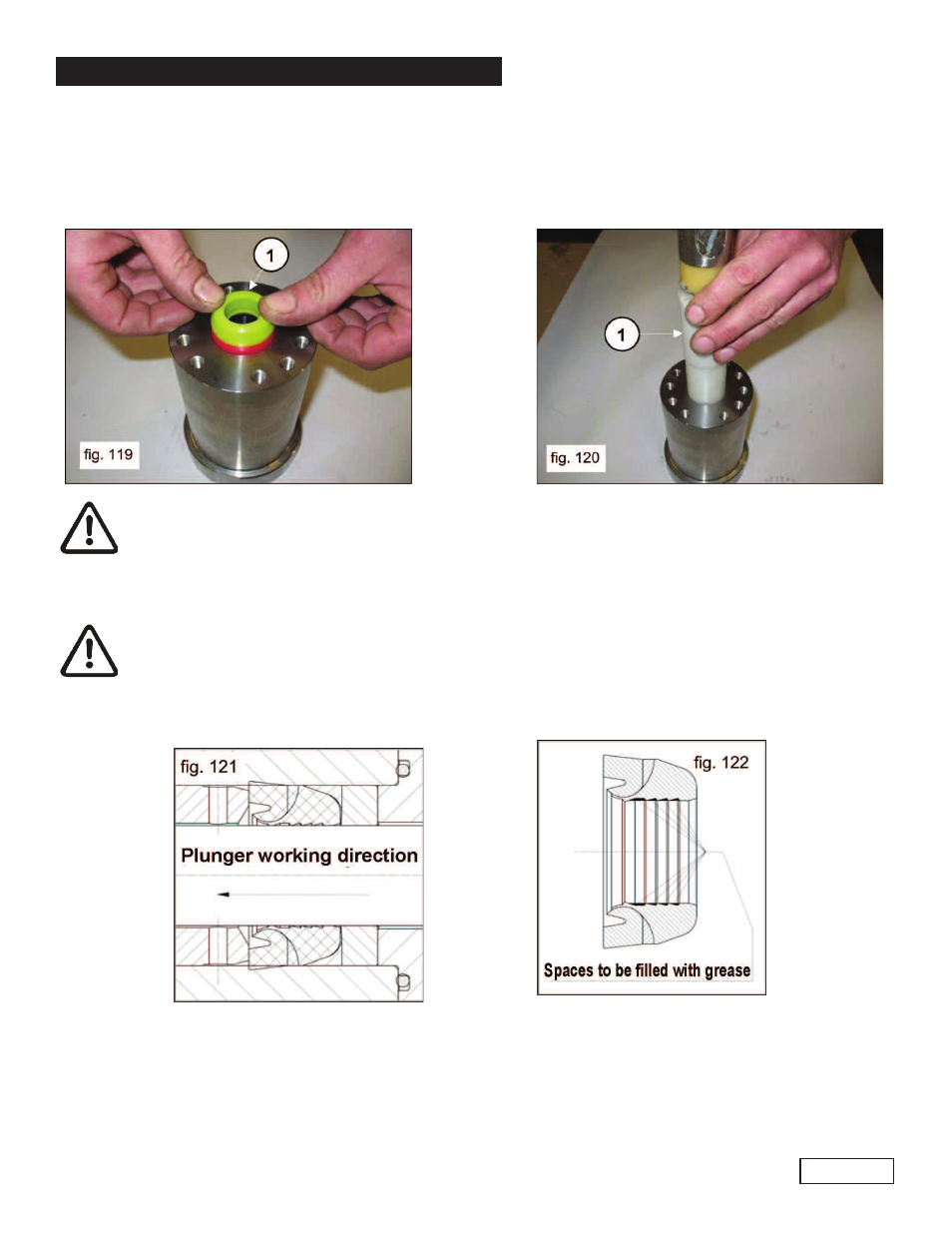

Insert the high pressure packing (1, fig. 119). Given the slight interference between the seal and the liner, use
special tool part #F27673200 for SM14, SM16, and SM18, and part #F27673300 for SM20, SM22 and SM24
to prevent damage.
The HP seal must be placed in the liner as indicated in fig. 121 and 122.
Before mounting the HP seals in their housing, they must be lubricated with OKS 1110
silicone grease following the steps below:
The external diameter must be slightly lubricated on the inner diameter, paying special
attention to filling all spaces including between the lip seals as indicated in fig. 122.
Ref 300894 Rev.A
06-12
