Sm series – General Pump SM Repair Manual User Manual
Page 24

GENERAL PUMP
A member of the Interpump Group
SM SERIES
Page 24
Ref 300894 Rev.A
06-12

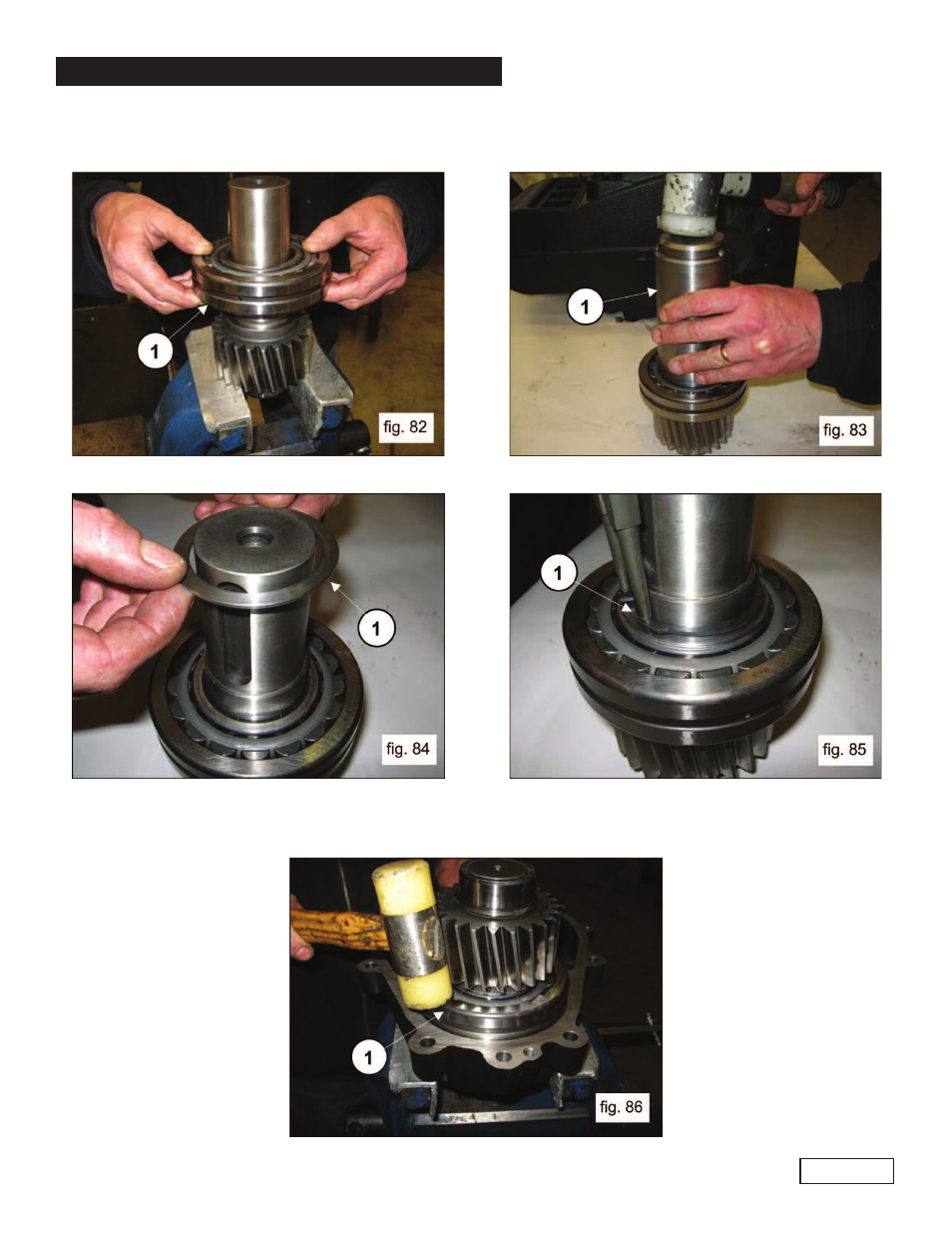

From the other side of the pinion, preassemble the bearing 55x120x29 (1, fig. 82) positioning it to end stroke
using tool #F27604800 (1, fig. 83).
Insert the bearing support ring (1, fig. 84) and position the Seeger ring Ø 55 (1, fig. 85).
Insert the pinion preassembled inside its housing in the reduction gear cover, with the aid of an extractor
hammer (1, fig. 86).
