Step2. Connect Mobile Monitor to the laptop

Place the laptop in front of the Mobile Monitor and align the upper side of the laptop

to the lower display edge of the Mobile Monitor. Connect the USB-Powered connect-

or to the laptop's USB port, and then connect the Digital Video connector to the lap-

top's HDMI Video output port.

●

If Analog Video and USB-Powered cable is used, connect the Analog Video con-

nector to the laptop's D-sub port

●

If miniDP and USB-Powered cable is used, connect the miniDP connector to the

laptop's D-sub port

Step3.Adjust the laptop and monitor extension setting

(Refer to Section 2 of Chapter 3 for monitor

display setting.)

After powering on the

laptop, go to Windows’ "Control Panel" to

adjust the monitor extension setting.

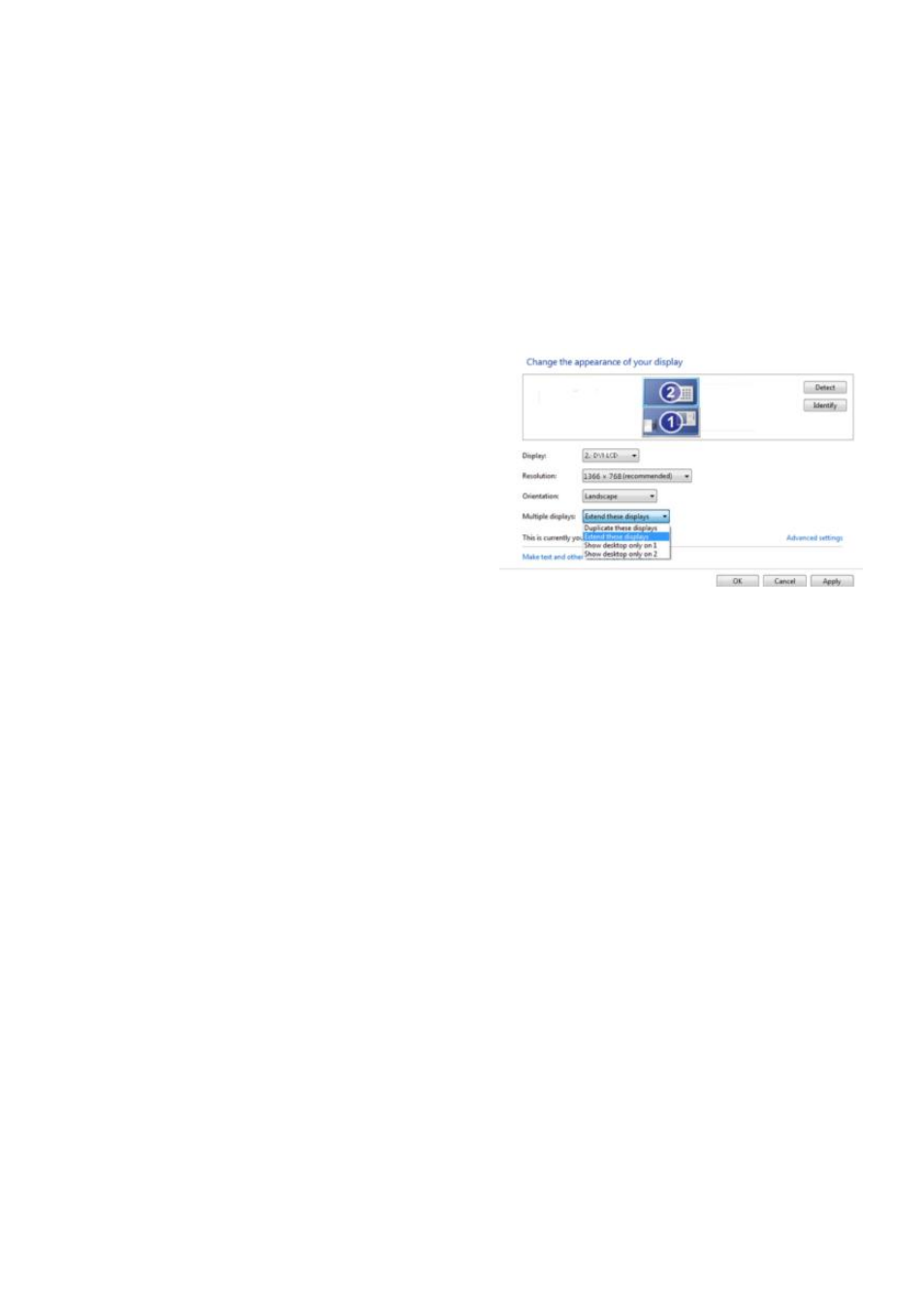

If you are using Windows 7:

Select "2.DVI LCD" (Digital Video) or

"2. display device: VGA" (Analog Video) for

Display.

Select "1366x768" for Resolution

Select "Landscape" for Orientation

Select "Extend these displays" for Multiple

displays, and drag Display 2 to the top side

of Display 1.

Section 4 Dual Monitor Display

[Note: Ultrabook or laptop of smaller size than Mobile Monitor may not be suitable for

this usage.]

Step1. Install the Holder Plate to the front cover of the laptop’s

monitor

Open the shaft’s Hinge Plate of the Mobile Monitor to 180° and place the Mobile
Monitor on the laptop's front cover. Peel off the other double-sided adhesive tape on

the Holder Plate and attach the Holder Plate to the laptop, as illustrated. Note:

1) Keep the Holder Plate 2mm from the edge of the laptop.

2) Align the Mobile Monitor to the front edge of the laptop's front cover.

3) Keep the direction of the Holder Plate the same as that of the shaft’s Hinge Plate

4) If the Holder Plate cannot securely attach to the laptop because the laptop’s front

cover has a protruding pattern or is anodized, use more double-sided adhesive

tape as required.

5) Double-sided adhesive tape should be used on a horizontal surface; gently press

on the adhesive tape after the Holder Plate is attached. Leave for 2 hours before

installing the Mobile Monitor.
