Step3. Adjust the laptop and monitor extension setting
(Refer to Section 2 of Chapter 3 for monitor
display setting.)
After powering on the laptop, go to
Windows’ "Control Panel" to adjust the
monitor extension setting.
If you are using Windows 7:
Select "2.DVI LCD" (Digital Video) or
“2. display device: VGA” (Analog Video) for
Display.
Select "1366x768" for Resolution
Select "Landscape" for Orientation
Select "Extend these displays" for Multiple
monitors, and drag Display 2 to the right side
of Display 1.
Section 2 Vertical Display
Step1. Install the Video and USB-Powered cable
If you wish to use the HDMI port on the laptop, please use Digital Video and USB-
Powered Cable. If you wish to use the D-sub (VGA) or mini-Display Port on the lap-
top, please purchase the Analog Video and USB-Powered Cable or mini-DisplayPort
and USB-Powered Cable from our authorized service center.
Connect the Video and Power connector to Mobile Monitor Video port, (1) Insert
the latch into the groove of the video power connector. (2) Slide the video power
connector toward the left for a proper connection. [WARNING: Not inserting the
latch into the groove may result in damage to the connector. Please check the video
power connector is properly connected and not protruding out. If protrusion occurs,
the connection might not be properly connected and monitor will not be able to
operate.]

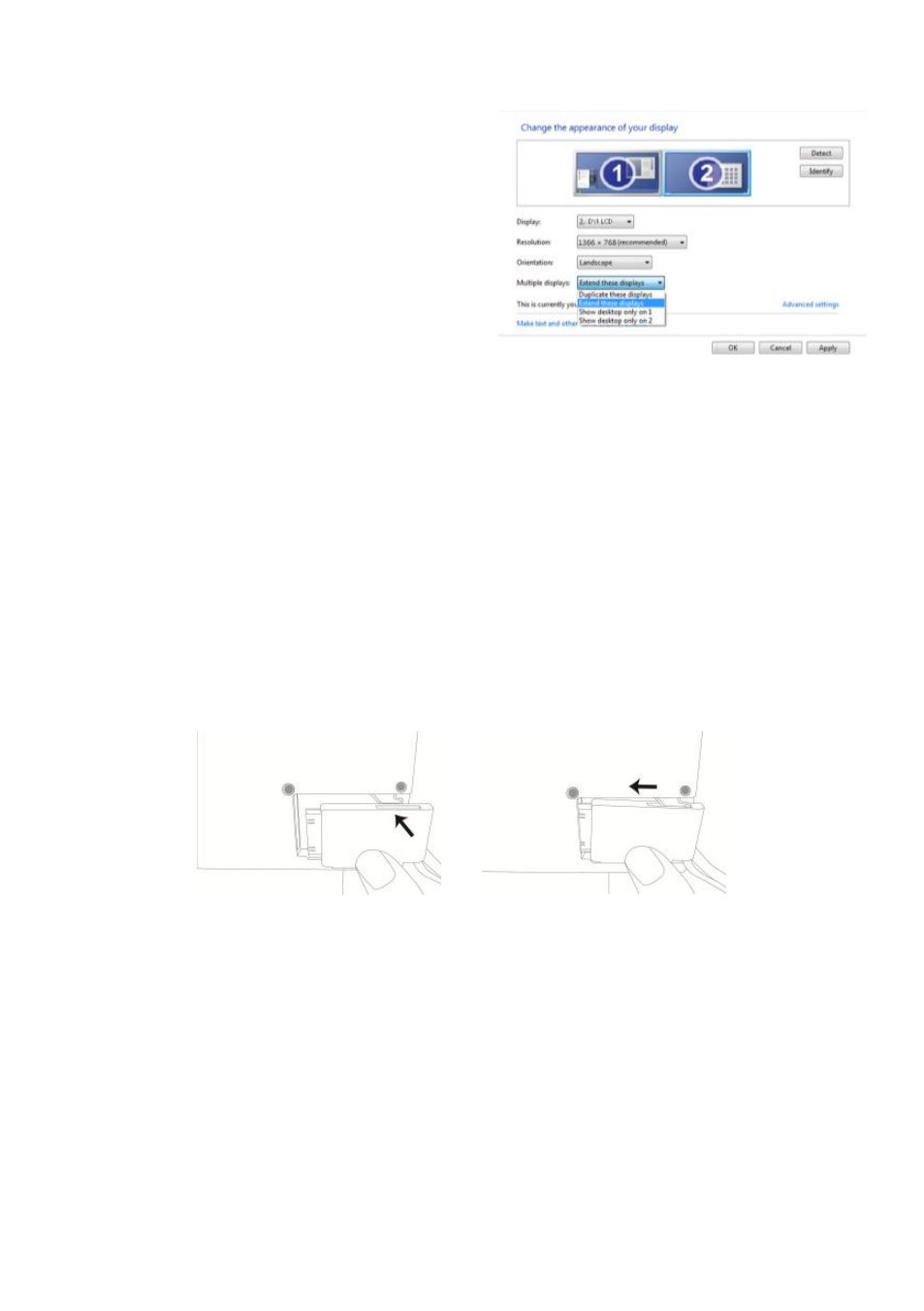

Fig.: Insert the video power connector to the video power port of Mobile Monitor
