Field-replaceable units in the monitor, Front chassis – Welch Allyn PROPAQ CS User Manual
Page 66
62
Repair procedures
Welch Allyn Propaq CS Vital Signs Monitor
Field-Replaceable Units in the monitor
Front chassis

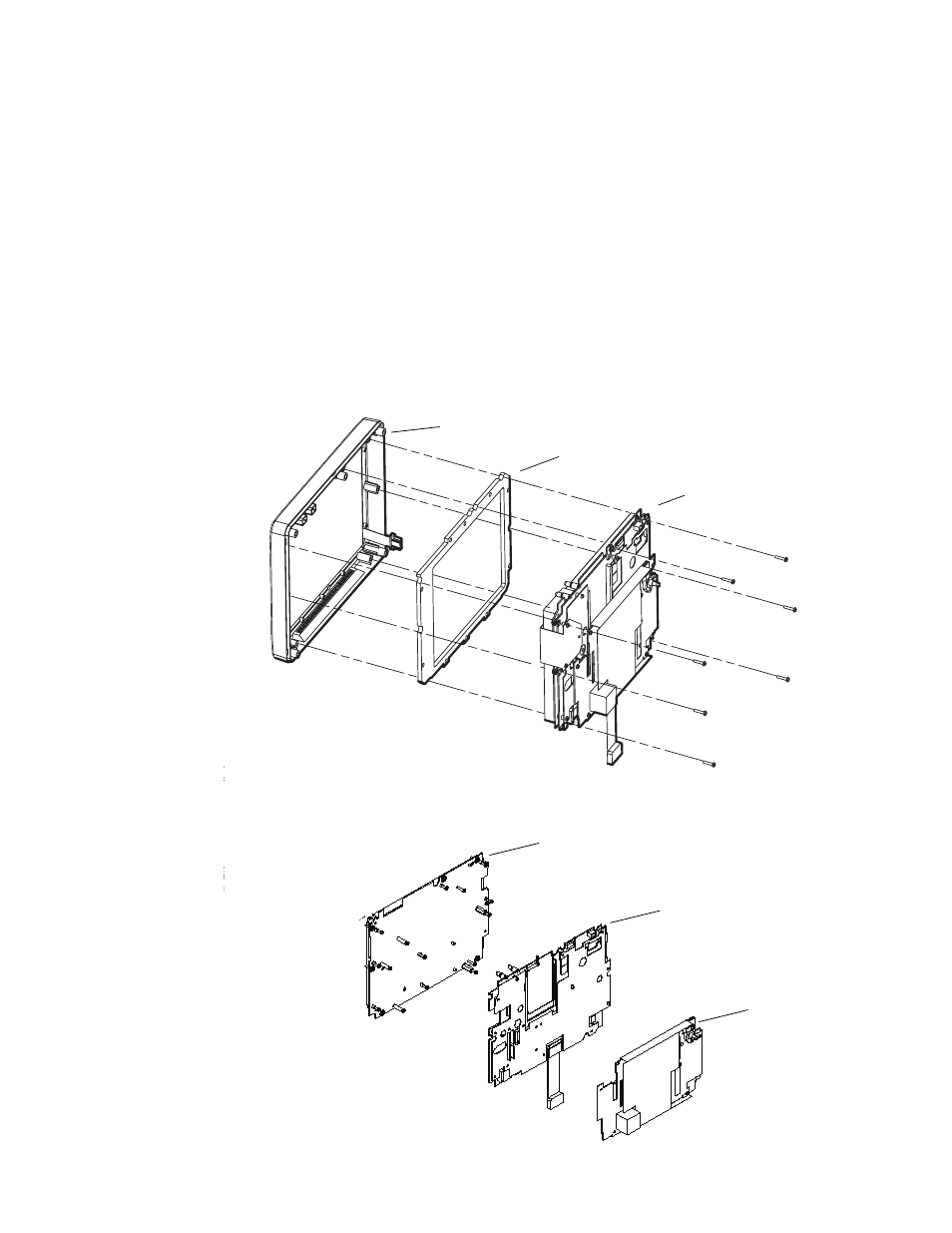

The Front Chassis of the monitor contains the following components:
•
Insulator
•
Analog Board with metal shield and insulator
•
Digital Board with shields
•
LCD display module
•
Front Chassis plastic assembly with touchscreen, gasket, and elastomeric LED lens
Front Chassis with touchscreen
Display gasket
Display, Digital Board, and
Analog Board (assembled)
Analog Board
Digital Board
Display
