Welch Allyn PROPAQ CS - Manual (Page 113)

Service Manual Technical overview 109

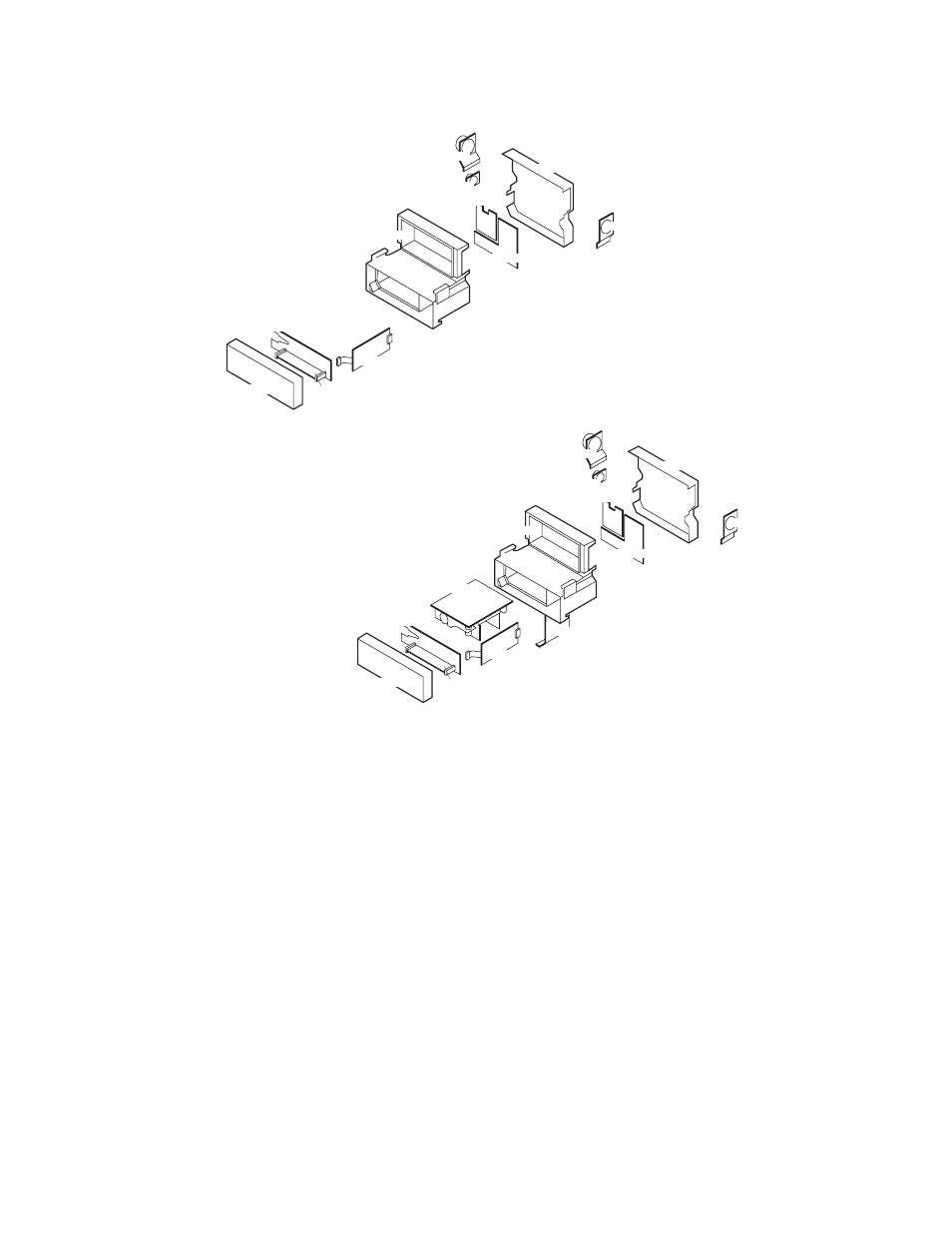

hardware layout
1097-10
Expansion Module
Option 228
SpO2
MCO2
SCO2
SpO2 Connector Panel
Rear Panel
Speaker Panel
08 MSP Board
SpO2 Board
Front Panel,
with SCO2
Extender Board
SSP Board
Stick Board
Main Housing
CO2 Connector Panel
1097-11
Expansion Module
Option 229
printer
SpO2
MCO2
SCO2
SpO2 Connector Panel
Rear Panel
Speaker Panel
MSP Board
SpO2 Board
Front Panel,
with SCO2
Extender Board
SSP Board
Stick Board
03 Main Housing
CO2 Connector Panel
Printer
Printer Door
