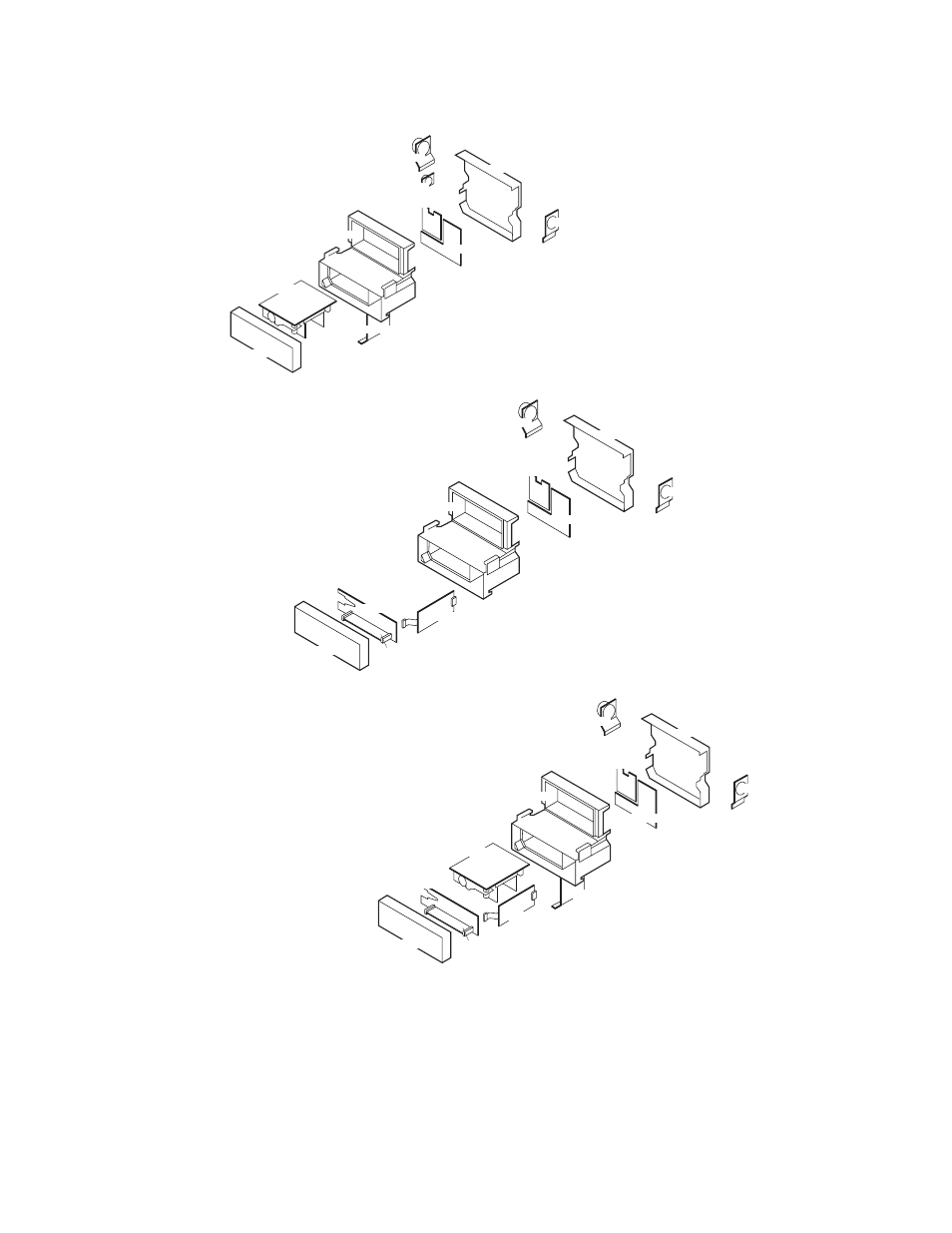

108 Technical overview Welch Allyn Propaq CS Vital Signs Monitor
1097-08
Expansion Module
Option 226
SpO2
SCO2
SpO2 Connector Panel
Rear Panel
Speaker Panel
MSP Board
SpO2 Board
Front Panel,
with SCO2
Extender Board
SSP Board
Stick Board
Main Housing
1097-09
Expansion Module
Option 227
printer
SpO2
SCO2
SpO2 Connector Panel
Rear Panel
Speaker Panel
MSP Board
SpO2 Board
Front Panel,
with SCO2
Extender Board
SSP Board
Stick Board
Printer
Printer Door
Main Housing
1097-07
Expansion Module
Option 225
printer
SpO2
MCO2
SpO2 Connector Panel
Rear Panel
Speaker Panel
08 MSP Board
CO2 Connector Panel
Printer
Printer Door
Front Panel,
no SCO2
Main Housing
SpO2 Board
