Service Manual Repair procedures 61
Propaq CS Monitor options
Your monitor may contain an option module that attaches to the monitor. You must
remove the option module before you can disassemble the monitor. For instructions on
how to remove the Expansion Module, refer to
“Replacing the battery pack” on page 64.
For instructions on how to remove the SpO
2
module, refer to “Removing the dual battery
in expansion module” on page 66.

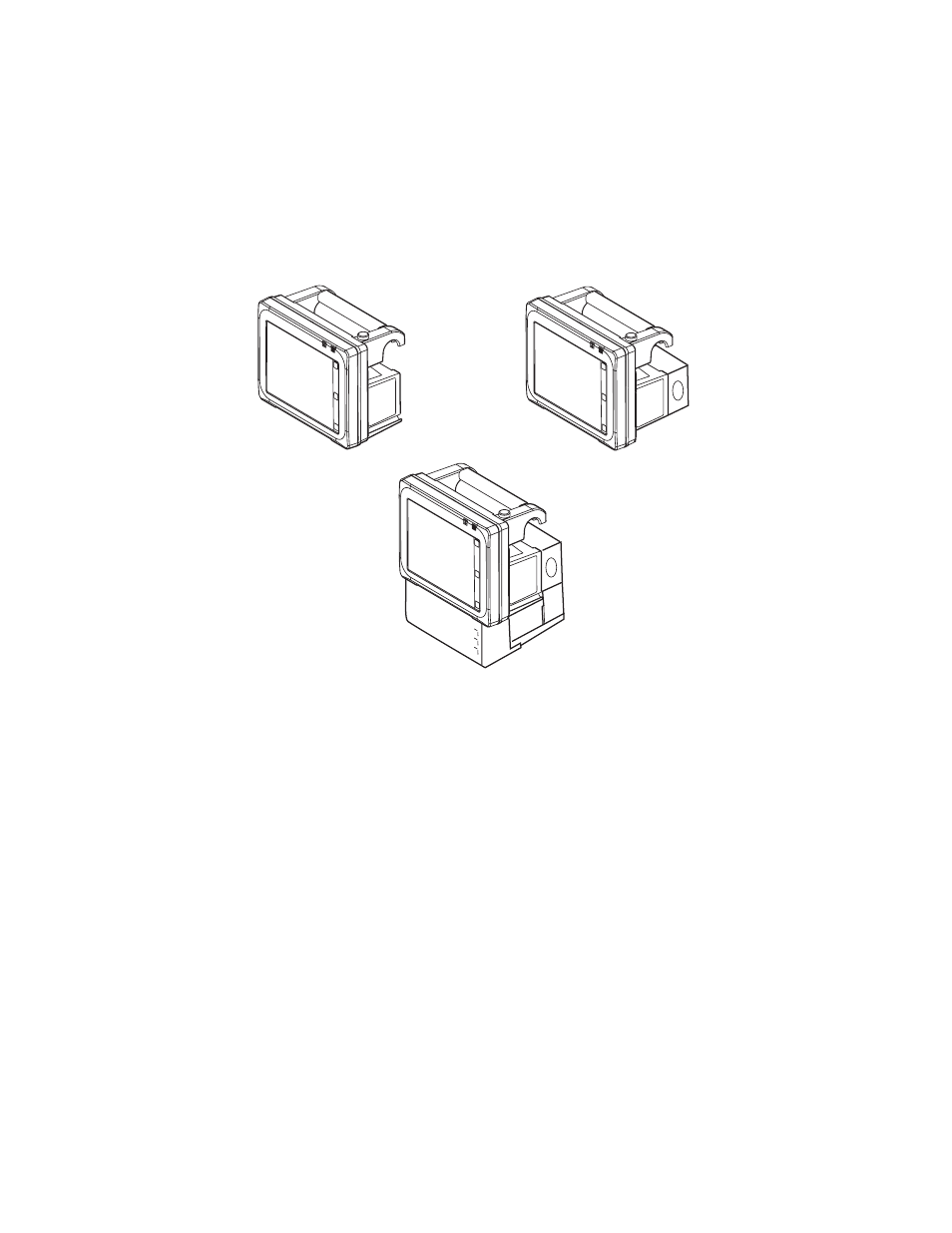

Monitor
Monitor with
Expansion Module
Monitor with SpO
2
