5-2
■

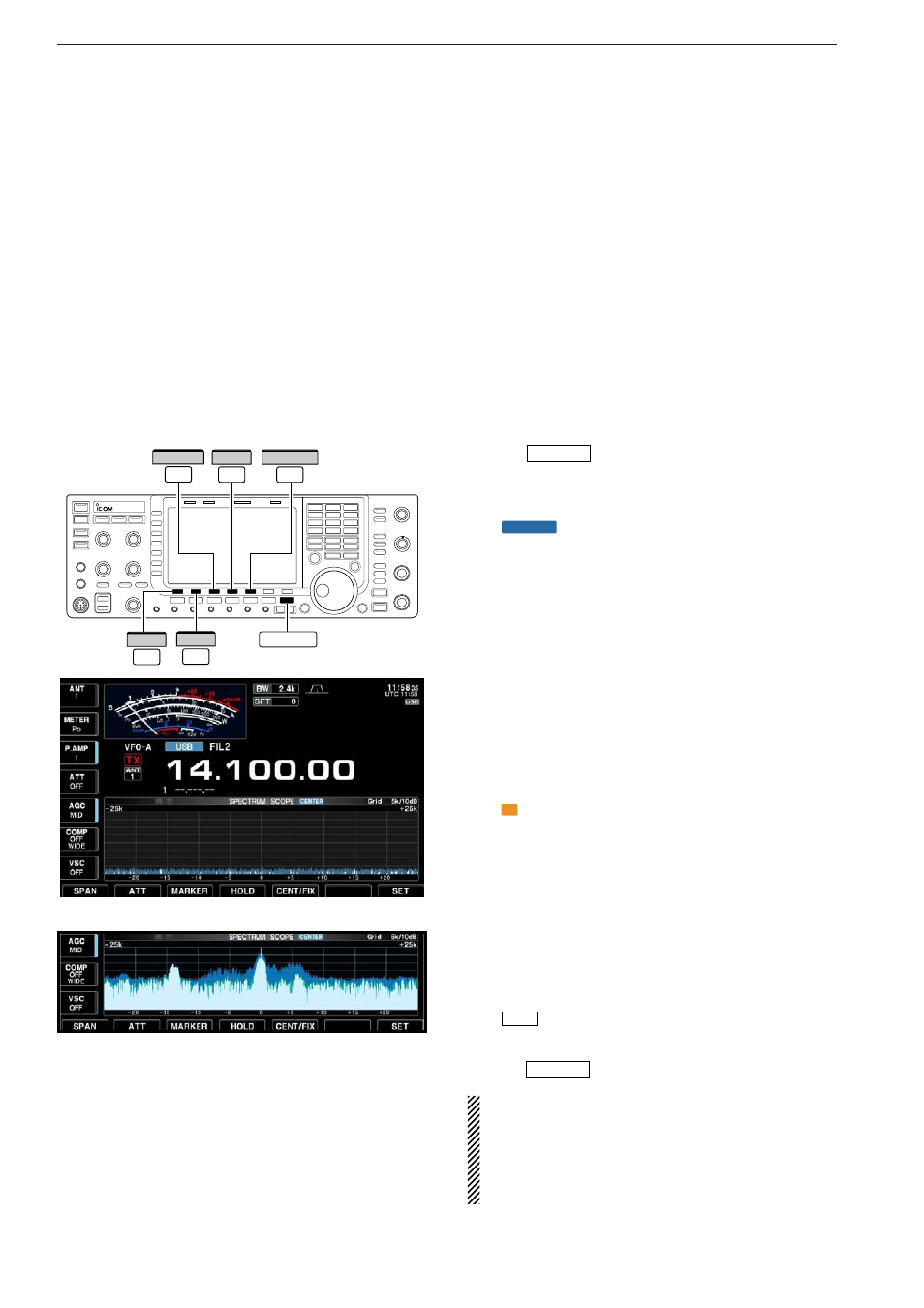

Spectrum scope screen
This DSP-based spectrum scope allows you to display
the conditions on the selected band, as well as relative
strengths of signals. The IC-7700 has two modes for
the spectrum indication— one is center mode, and an-
ther one is fixed mode.
In addition, the IC-7700 has a mini scope screen to
save screen space.
D D Center mode
Displays signals around the set frequency within the
selected span. The set frequency is always displayed
at the center of the screen.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [F-1•SCOPE] to select the scope screen.
e Push [F-5•CENT/FIX] to select the center mode.
• “ ” is displayed when center mode is selected.
r Push [F-1•SPAN] several times to select the scope
span.
• ±2.5, ±5.0, ±10, ±25, ±50, ±100 and ±250 kHz are avail-
able.
• Push and hold [F-1•SPAN] for 1 sec. to return to ±2.5
kHz span.
• Sweeping speed is selectable for each span indepen-
dently in scope set mode. (pgs. 5-5, 5-6)
t Push [F-2•ATT] several times to activate an attenu-
ator or turn the attenuator OFF.
• 10, 20 and 30 dB attenuators are available.
• Push and hold [F-2•ATT] for 1 sec. to turn OFF the at-
tenuator.
y Push [F-3•MARKER] to turn the marker for transmit
frequency ON or OFF.
• “ ” displays the marker at the transmit frequency.
• “<<” or “>>” appears when the marker is out of range.
• The spectrum scope shows the transmit signal wave-
form while transmitting. This can be deactivated in
scope set mode. (p. 5-5)
• The spectrum scope shows the peak level holding func-
tion. Peak levels are displayed in the background of the
current spectrum in a different color until the receive fre-
quency changes. This can be deactivated and the wave-
form color can be set in scope set mode. (p. 5-5)
u Push [F-4•HOLD] to freeze the current spectrum
waveform.
• “ ” appears while the function is in use.
• The peak hold function can be deactivated in scope set
mode.
i Push to exit the scope screen.
NOTE: If a strong signal is received, a ghost wave-
form may appear. Push [F-2•ATT] several times to
activate the spectrum scope attenuator in this case.
Spurious signal waveforms may be displayed. They
are generated in the internal scope circuit and do
not indicate a transceiver malfunction.
EXIT/SET
HOLD
T
CENTER
EXIT/SET
F-2
ATT
F-4
HOLD
F-1
SPAN
F-3
MARKER
F-5
CENT/FIX
EXIT/SET
5
FUNCTIONS FOR RECEIVE
• Observed indication example
