4/32 SAN Switch nonport side

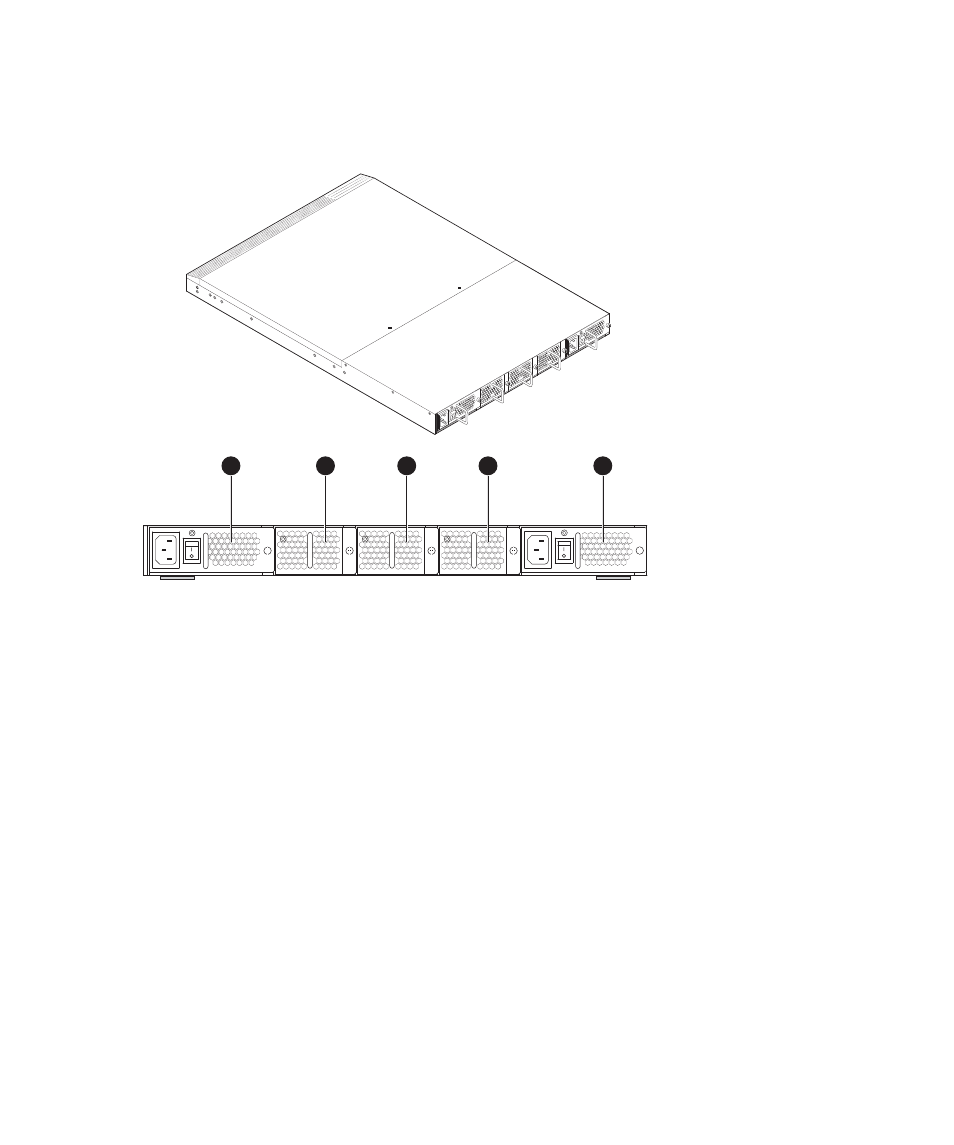

Figure 3 shows the nonport side of the 4/32 SAN Switch, which contains the power
supplies (including the AC power inlet and AC power switch) and fans.
Scale: 1/8" = 1"
MRO25010a
3 4 5 2 1
1. Power supply 2 2. Fan 3
3. Fan 2 4. Fan 1
5. Power supply 1
Figure 3 4/32 SAN Switch nonport side
Activating additional 4/32 and 4/32B SAN Switch ports
The SAN Switch 4/32 and 4/32B SAN Switches are available with either 16 ports
(0 through 15) activated for the Base model or 32 ports (0 through 31) activated for
the Full model.
To activate additional ports, contact your HP representative to purchase the HP
StorageWorks 8-Port Upgrade License, part number T3677A. If your 4/32 SAN Switch
shipped with 16 active ports, purchase one 8-Port Upgrade License to activate ports 16
through 23; purchase a second 8-Port Upgrade License to activate ports 24 through 31.
22 Overview
