Connecting to AV Devices
Connect external devices such as a VCR, VCD or DVD player, or video
game to the TV using the 4-IN-1 cable.
Connecting to a VCR/VCD/DVD Player

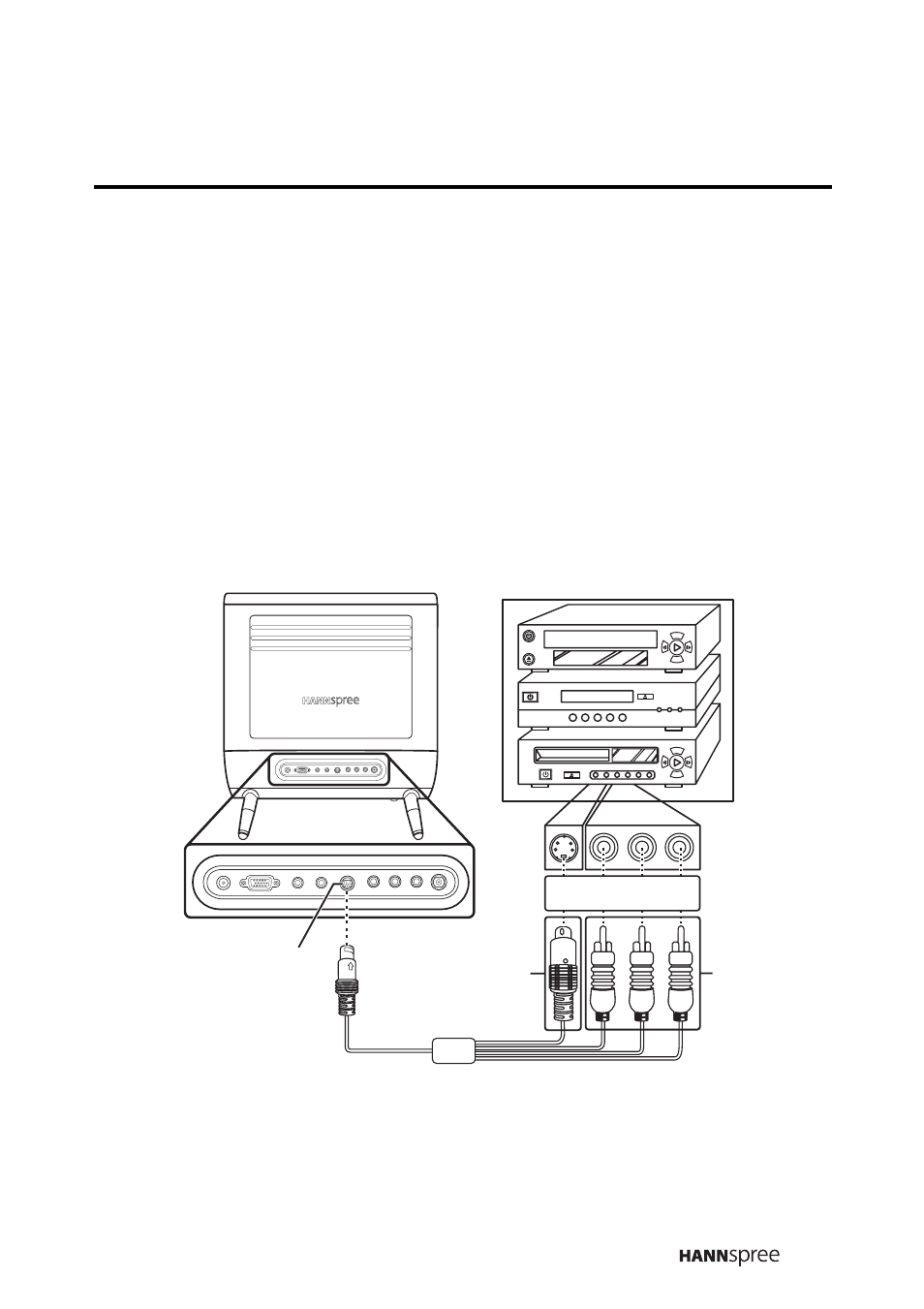

The illustration presented here shows how to connect the TV to a VCR,
VCD or DVD player. Actual connections may vary according to the make
and model of the device. Refer to the user’s manual included with the device
for more detailed instructions.
Note
The cables are color-coded (black, red, white, yellow). Connect each color-
coded cable to the appropriate connector on your device.
DC-IN VGA LINE-OUT LINE-IN AV2 VIDEO R-AUDIO-L ANT
DC-IN VGA ANT LINE-OUT LINE-IN AV2 VIDEO R-AUDIO-L
B R W Y
VCR
DVD
VCD
S-Video
connector AV
4-IN-1 cable
connectors
4-IN-1 jack
