Input and Output Ports
Description Function
1 DC IN
Connects to the included power
adapter.
2 VGA Connects to a PC.
3 LINE IN Connects to a PC's DVI port.
4 LINE OUT
Connects to external stereo
speakers.
5 AV2
Use the included 4-IN-1
Audio/Video cable to connect exter-
nal devices, such as a VCR, VCD,
or DVD player.
Audio Input: AV connectors white
and red audio cables.
Video Input: AV connector video
(yellow) or S-Video cables.
6
Left and right audio in
(of AV1)
Connects to VCR/VCD/DVD player
CVBS RCA left and right audio
cables(white and red).
7 Video in (of AV1)
Connects to VCR/VCD/DVD player
CVBS RCA cables or a game
device(yellow).
8
Antenna/cable TV line
in
Connects to an antenna or CATV
cable television line.

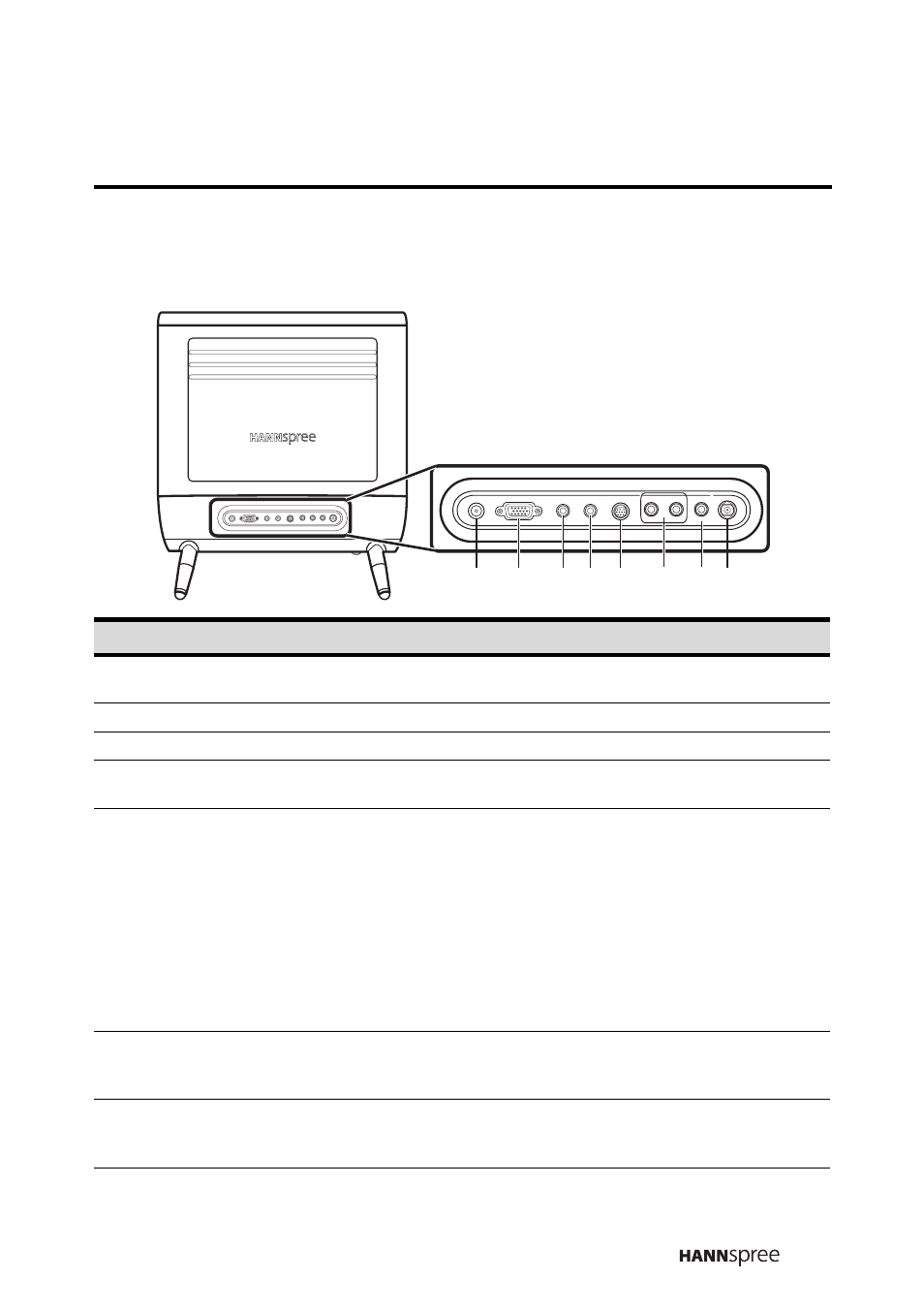

DC-IN VGA LINE-OUT LINE-IN AV2 VIDEO R-AUDIO-L ANT
DC-IN VGA ANT LINE-OUT LINE-IN AV2 VIDEO R-AUDIO-L
1 2 3 4 5 6 7 8
