2-15
Installing the Access Point 530
Installation Procedures
Instal
lin
g th
e
Access
Point
530
Direct Console Access

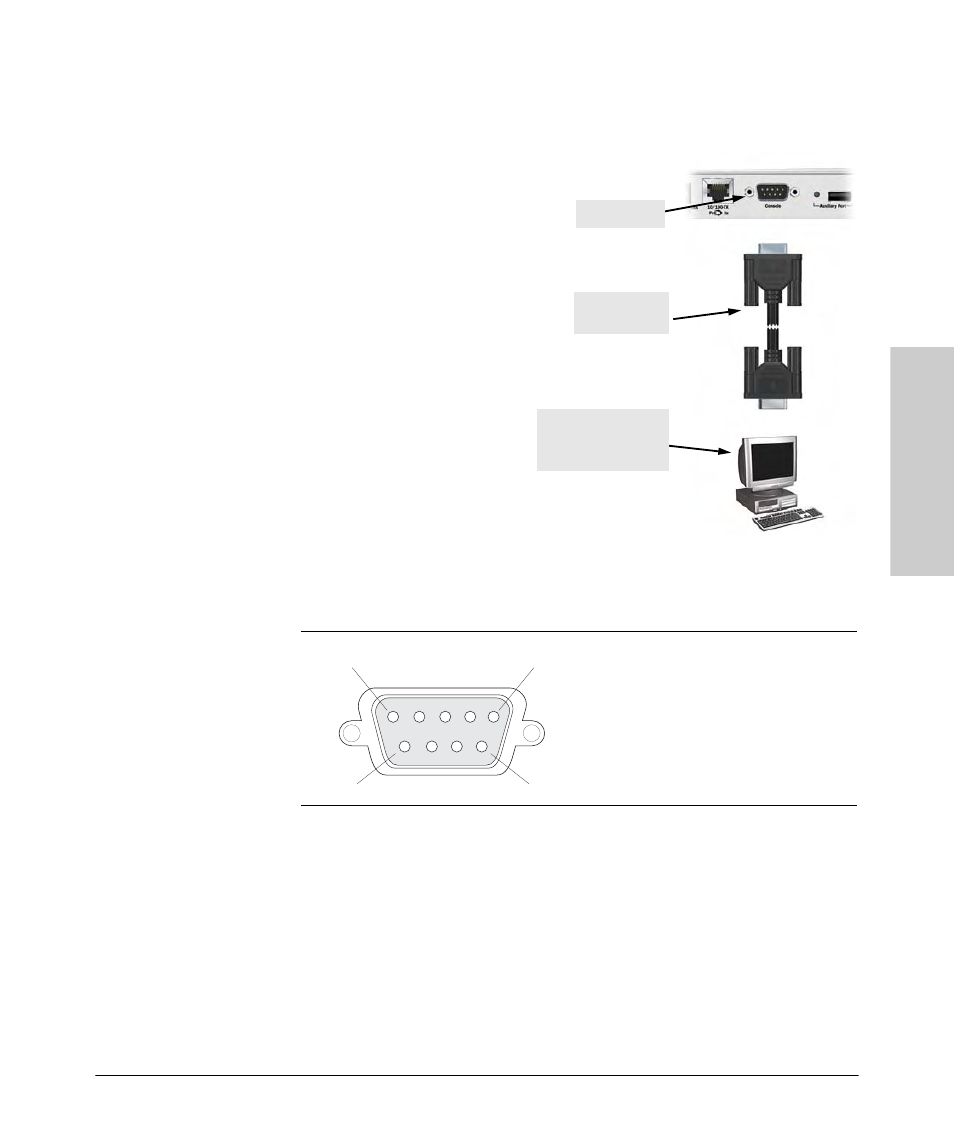

To connect a console to the
access point, follow these steps:
1. Connect the PC or terminal
to the access point’s Console
port using a DB-9 female-to-
female serial cable. (If your
PC or terminal has a 25-pin
serial connector, first attach
a 9-pin to 25-pin straight-
through adapter at one end
of the console cable.)
The Console cable is
described below. A null-
modem cable or an HP
serial cable, part number
5184-1894 (shipped with
many ProCurve Networking
switches), may be used.
Access Point 530 serial port pin and signalling details
Connection to PC serial ports also requires a crossover (null-modem)
cable with a female DB-9 connector on both ends. Terminal connections
will vary, requiring either a DB-9 or DB-25 connector, male or female.
Serial cable options between an Access Point 530 and a PC terminal are
shown in the following table.
Access Point 530 Pin Assignment Pin Number Access Point Signal (DTE)
1
2
3
4
5
6
7
8
9 Reserved
RXD (input)
TXD (output)
Reserved
GND
Reserved
RTS (output)
CTS (input)
Reserved
Console port
Console cable
(not supplied)
PC running a terminal
emulator program, or
a VT-100 terminal
DB-9 male
5
9
1
6
