Havis-Shields K9/Prisoner Transportation System KK-K9-F14-K-PT User Manual
Page 9
KK-K9-F14-K-PT_INST_11-08
9

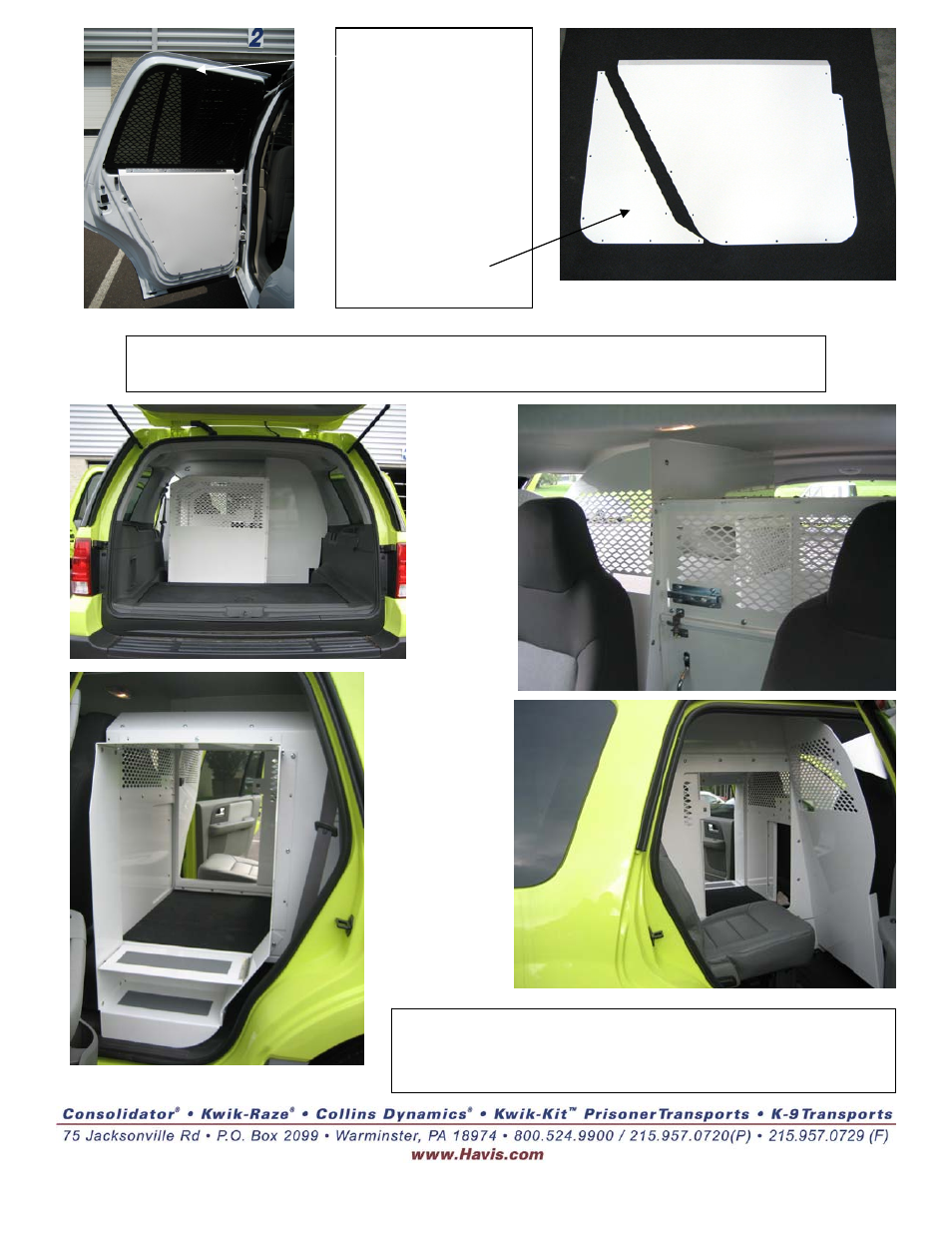

Hinge up window
guard and reattach to
bracket with 10-32 x
½” Stainless machine
screws and #10 Flat
washers.
Standard
door panel
EL
NOTE: Door panel
fillers are provided for
the Expedition EL.
This is not used for the
standard length
Expedition.
K9 / PT unit installation complete.
Shown with emergency sliding door open between K9 and Prisoner compartment.
Sheet metal seams and gaps need to be carefully
SILICONED at floor area. Allow silicone to dry overnight
before placing in rubber floor mat
